Wellbore #00 Wellbore Classification: GW Status: PR - 5/1/2018 Measured TD: 10020 ft. Vertical TD: 9941 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 5/1/2018 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 20074129 | Expiration Date: | 9/27/2008 | | Proposed Top PZ Location: | Sec: Twp: | Footage: 216 FSL 1308 FWL | | Bottom Hole Location: | Sec:33 Twp: 5S 96W | Footage: 521 FSL 1984 FWL | | Proposed Depth/Form: | 9886 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 510-18 , Unit Acreage: 320, Drill Unit: S2 |
| | |

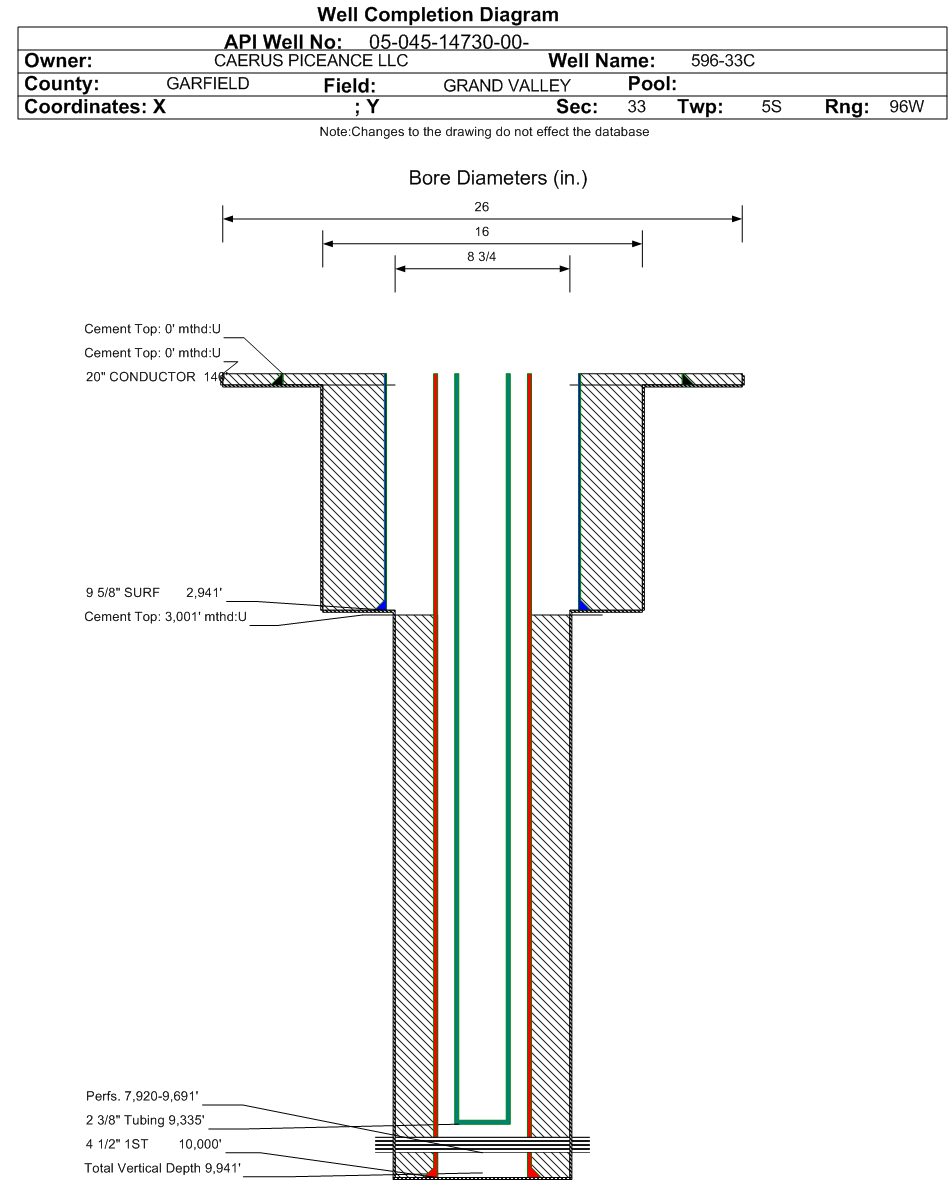

| Wellbore Completed | | Completion Date: | 10/23/2008 | | Spud Date: | 6/22/2008 | Spud Date Is: | ACTUAL | | Measured TD: | 10020 ft. | Measured PB depth: | 9962 ft. | | True Vertical TD: | 9941 ft. | True Vertical PB depth: | 9884 ft. | | Top PZ Location: | Sec:33 Twp: 5S 96W | Footage: 565 FSL 2027 FWL | | Bottom Hole Location: | Sec:33 Twp: 5S 96W | Footage: 555 FSL 2049 FWL | | Log Types: | DIGITAL ACOUSTILOG/GR, RADIAL ANALYSIS BOND, RESER. PERF. MONITOR; MUD | | Log Types: | NO LOGS RUN YET AND NO FORMATION TOPS YET. AS-DRILLED BHL AND TOP OF PROD. ZONE NOT YET CALCULATED | | Log Types: | NO LOGS YET | | Casing: | String Type: CONDUCTOR, Hole Size: 26 in., Size: 20 in., Top: 0 ft., Depth: 140 ft., Weight: 53 , Citings Type: ACTUAL | | Cement: | Sacks: 0, Top: 0 ft., Bottom: 140 ft., Determination Method: CALC | | Casing: | String Type: SURF, Hole Size: 16 in., Size: 9.625 in., Top: 0 ft., Depth: 2941 ft., Weight: 36 , Citings Type: ACTUAL | | Cement: | Sacks: 1424, Top: 0 ft., Bottom: 2941 ft., Determination Method: CALC | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 4.5 in., Top: 0 ft., Depth: 10000 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 789, Top: 3001 ft., Bottom: 10000 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH G | 4926 ft. | | N | N | | FORT UNION | 5262 ft. | | N | N | | MESAVERDE | 6678 ft. | | N | N | | CAMEO | 9325 ft. | | N | N | | ROLLINS | 9829 ft. | | N | N |
Formation WFCM Formation Classification: GW Status: PR - 5/8/2018 Interval Top: 7920 ft. Interval Bottom: 9691 ft.| Completed Information for Formation WILLIAMS FORK - CAMEO | | 1st Production Date: | 5/8/2018 | Choke Size: | | | Formation Name: | WILLIAMS FORK - CAMEO | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Type: | FRACTURE STIMULATION | | Treatment Date: | 5/3/2018 | Treatment End Date: | 5/6/2018 | | Treatment Summary: | 7-stage plug-and-perf completion;
56020 total bbls fluid pumped: 55937 bbls recycled water (slickwater) and 83 bbls 7.5% HCl acid;
no proppant used. | | Total fluid used in treatment (bbls): | 56020 | Max pressure during treatment (psi): | 7407 | | Total gas used in treatment (mcf): | | Fluid density (lbs/gal): | 8.43 | | Type Of gas: | | Number Of staged intervals: | 7 | | Total acid used in treatment (bbls): | 83 | Min frac gradient (psi/ft): | 0.53 | | Recycled water used in treatment (bbls): | 55937 | Total flowback volume recovered (bbls): | 26681 | | Fresh water used in treatment (bbls): | | Disposition method For flowback: | RECYCLE | | Total proppant used (lbs): | | Green completions techniques utilized: | Yes | | Reason green techniques Not utilized: |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 9335 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 5/8/2018 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 1922 | | BTU_GAS | 1080 | | CALC_BBLS_H2O | 1922 | | CALC_MCF_GAS | 617 | | CASING_PRESS | 800 | | MCF_GAS | 617 |
| | Perforation Data: | | Interval Top: | 7920 ft. | # Of Holes: | 189 | | Interval Bottom: | 9691 ft. | Hole Size: | 0.37 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 78 |
| Total Gas Produced (MCF) | 41996 |
| GOR | 538410 |
| GOR Determination | MCFE |
| Average BOE per Day | 20.060 |
| Average MCFE per Day | 116.358 |
| Federal Financial Assurance | i | |
|
|
