Wellbore #00 Wellbore Classification: GW Status: PR - 9/25/2014 Measured TD: 6730 ft. Vertical TD: 6465 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 9/25/2014 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 20074037 | Expiration Date: | 9/19/2008 | | Proposed Top PZ Location: | Sec: Twp: | Footage: 300 FNL 1980 FWL | | Bottom Hole Location: | Sec:2 Twp: 7S 92W | Footage: 300 FNL 1980 FWL | | Proposed Depth/Form: | 6836 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | HUNTER MESA UNI | Unit Number: | COC 55972E | | Formation And Spacing: | Code: ILES , Formation: ILES , Order: , Unit Acreage: , Drill Unit: | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: , Unit Acreage: , Drill Unit: |
| | |

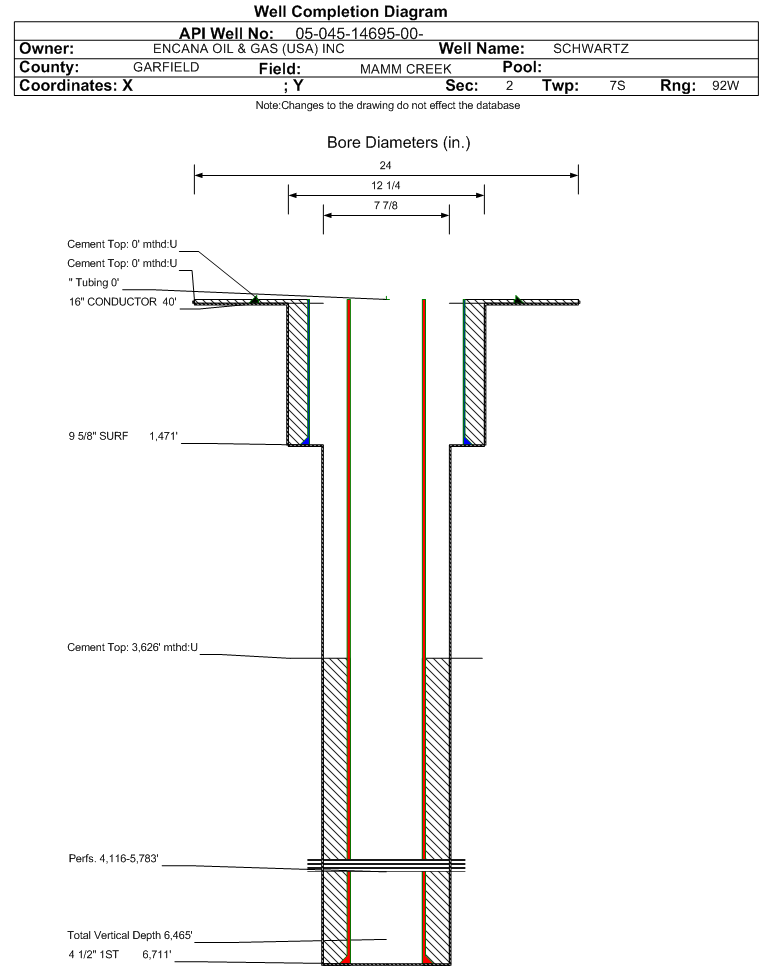

| Wellbore Completed | | Completion Date: | 4/5/2008 | | Spud Date: | 3/25/2008 | Spud Date Is: | ACTUAL | | Measured TD: | 6730 ft. | Measured PB depth: | 5500 ft. | | True Vertical TD: | 6465 ft. | True Vertical PB depth: | | | Top PZ Location: | Sec:2 Twp: 7S 92W | Footage: 321 FNL 1970 FWL | | Bottom Hole Location: | Sec:2 Twp: 7S 92W | Footage: 321 FNL 1970 FWL | | Log Types: | CBL, RST | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 16 in., Top: 0 ft., Depth: 40 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: , Top: 0 ft., Bottom: 40 ft., Determination Method: CALC | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 1471 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 670, Top: 0 ft., Bottom: 1471 ft., Determination Method: CALC | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 6711 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 740, Top: 3626 ft., Bottom: 6730 ft., Determination Method: CALC | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH | 0 ft. | 3554 ft. | N | N | | WILLIAMS FORK | 3555 ft. | 6708 ft. | N | N | | ROLLINS | 6709 ft. | 6730 ft. | N | N |
Formation WMFK Formation Classification: GW Status: PR - 9/25/2014 Interval Top: 4116 ft. Interval Bottom: 5783 ft.| Completed Information for Formation WILLIAMS FORK | | 1st Production Date: | 6/29/2008 | Choke Size: | | | Formation Name: | WILLIAMS FORK | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 6/25/2008 | | Treatment Summary: | Stage 1 - Stage 4 treated with a total of 53,460 bbls of Slickwater (BWS), 638,582 lbs of Proppant. |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation WMFK. |
| | Perforation Data: | | Interval Top: | 4116 ft. | # Of Holes: | 104 | | Interval Bottom: | 5783 ft. | Hole Size: | 0.36 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 56 |
| Total Gas Produced (MCF) | 15084 |
| GOR | 269357 |
| GOR Determination | MCFE |
| Average BOE per Day | 7.280 |
| Average MCFE per Day | 42.217 |
| Federal Financial Assurance | i | Y |
|
|
