Wellbore #00 Wellbore Classification: GW Status: AB - 11/29/2023 Measured TD: 8168 ft. Vertical TD: 8075 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW AB - 11/29/2023 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 20073779 | Expiration Date: | 9/12/2008 | | Proposed Top PZ Location: | Sec: Twp: | Footage: 1940 FNL 660 FWL | | Bottom Hole Location: | Sec:24 Twp: 7S 93W | Footage: 1940 FNL 660 FWL | | Proposed Depth/Form: | 8423 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | HUNTER MESA UNI | Unit Number: | COC 55972E | | Formation And Spacing: | Code: ILES , Formation: ILES , Order: , Unit Acreage: , Drill Unit: | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: , Unit Acreage: , Drill Unit: |
| | |

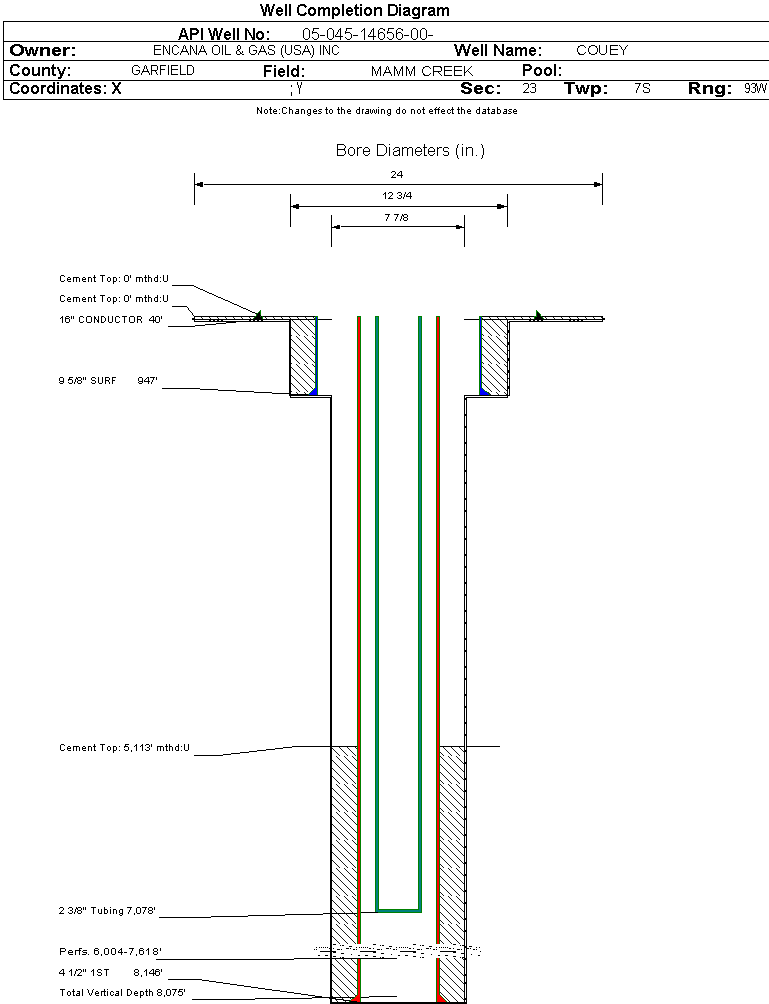

| Wellbore Completed | | Completion Date: | 2/3/2008 | | Spud Date: | 1/19/2008 | Spud Date Is: | ACTUAL | | Measured TD: | 8168 ft. | Measured PB depth: | 7946 ft. | | True Vertical TD: | 8075 ft. | True Vertical PB depth: | 7853 ft. | | Top PZ Location: | Sec:24 Twp: 7S 93W | Footage: 1949 FNL 652 FWL | | Bottom Hole Location: | Sec:24 Twp: 7S 93W | Footage: 1949 FNL 652 FWL | | Log Types: | RST,CBL | | Casing: | String Type: CONDUCTOR, Hole Size: , Size: , Top: 0 ft., Depth: 40 ft., Weight: 42# , Citings Type: ACTUAL | | Cement: | Sacks: 94, Top: 0 ft., Bottom: 40 ft., Determination Method: CALC | | Casing: | String Type: SURF, Hole Size: 12.75 in., Size: 9.625 in., Top: 0 ft., Depth: 947 ft., Weight: 36# , Citings Type: ACTUAL | | Cement: | Sacks: 526, Top: 0 ft., Bottom: 947 ft., Determination Method: CALC | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 8146 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 729, Top: 4600 ft., Bottom: 8146 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH | 0 ft. | 5094 ft. | N | N | | WILLIAMS FORK | 5095 ft. | 8102 ft. | N | N | | ROLLINS | 8103 ft. | 8168 ft. | N | N |
Formation WMFK Formation Classification: GW Status: AB - 11/29/2023 Interval Top: 6004 ft. Interval Bottom: 7618 ft.| Completed Information for Formation WILLIAMS FORK | | 1st Production Date: | 4/15/2008 | Choke Size: | 0.375 in. | | Formation Name: | WILLIAMS FORK | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 3/25/2008 | | Treatment Summary: | STAGES 01-06 TREATED WITH A TOTAL OF 30,670 BBL SLICKWATER AND 799,900 LBS 20-40 SAND. |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 7078 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 4/20/2008 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 530 | | BBLS_OIL | 0 | | BTU_GAS | 1170 | | CALC_BBLS_H2O | 530 | | CALC_MCF_GAS | 868 | | CASING_PRESS | 1750 | | MCF_GAS | 868 | | TUBING_PRESS | 900 |
| | Perforation Data: | | Interval Top: | 6004 ft. | # Of Holes: | 133 | | Interval Bottom: | 7618 ft. | Hole Size: | 0.36 in. |
|
|
|
|
|
|
|
| Reported Plugged | Y | 11/29/2023 |
| Out Of Service Repurposed | N | |
| Out Of Service | Y | Plugging Due Date
12/31/2029 |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 0 |
| Total Gas Produced (MCF) | 0 |
| GOR | |
| GOR Determination | |
| Average BOE per Day | 0.000 |
| Average MCFE per Day | 0.000 |
| Federal Financial Assurance | i | Y |
|
|
