Wellbore #00 Wellbore Classification: GW Status: SI - 11/1/2022 Measured TD: 6380 ft. Vertical TD: 6217 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW SI - 11/1/2022 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 20073736 | Expiration Date: | 9/5/2008 | | Proposed Top PZ Location: | Sec:11 Twp: 7S 92W | Footage: 140 FNL 1971 FEL | | Bottom Hole Location: | Sec:11 Twp: 7S 92W | Footage: 140 FNL 1971 FEL | | Proposed Depth/Form: | 6378 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | HUNTER MESA UNI | Unit Number: | COC 55972E | | Formation And Spacing: | Code: ILES , Formation: ILES , Order: , Unit Acreage: , Drill Unit: | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: , Unit Acreage: , Drill Unit: |
| | |

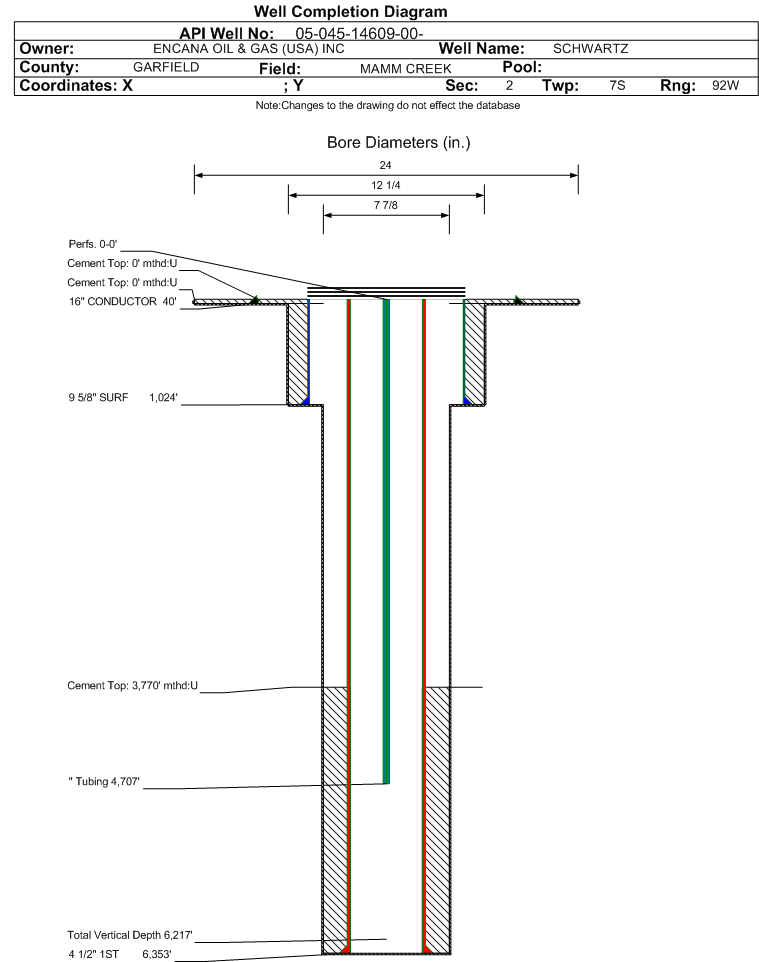

| Wellbore Completed | | Completion Date: | 10/20/2007 | | Spud Date: | 10/2/2007 | Spud Date Is: | ACTUAL | | Measured TD: | 6380 ft. | Measured PB depth: | 5928 ft. | | True Vertical TD: | 6217 ft. | True Vertical PB depth: | | | Top PZ Location: | Sec:11 Twp: 7S 92W | Footage: 140 FNL 1971 FEL | | Bottom Hole Location: | Sec:11 Twp: 7S 92W | Footage: 140 FNL 1971 FEL | | Log Types: | CBL, PEX, RST | | Casing: | String Type: CONDUCTOR, Hole Size: , Size: , Top: 0 ft., Depth: 40 ft., Weight: 42# , Citings Type: ACTUAL | | Cement: | Sacks: 80, Top: 0 ft., Bottom: 40 ft., Determination Method: VISU | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 1024 ft., Weight: 36# , Citings Type: ACTUAL | | Cement: | Sacks: 504, Top: 0 ft., Bottom: 1024 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 6353 ft., Weight: 11.6# , Citings Type: ACTUAL | | Cement: | Sacks: 738, Top: 3770 ft., Bottom: 6353 ft., Determination Method: CBL | | Additional Cement: | String Type: 1ST , Top: 1414 ft., Depth: 2951 ft., Bottom: 2951 ft., Sacks: 400, Method: SQUEEZE | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH | 0 ft. | 3489 ft. | N | N | | WILLIAMS FORK | 3490 ft. | 6380 ft. | N | N |
Formation WMFK Formation Classification: GW Status: SI - 11/1/2022 Interval Top: 3490 ft.| Completed Information for Formation WILLIAMS FORK | | 1st Production Date: | N/A | Choke Size: | | | Formation Name: | WILLIAMS FORK | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 12/18/2007 | | Treatment Summary: | 1/19/09: TIH W/CIBP & SET @ 4148'. TESTED PLUG SUCCESSFULLY TO 2000 PSI. MOVED PLUG TO 5090' OVER STAGE 2 TO SLOW WATER PRODUCTION. LANDED TUBING @4707' & RETURNED WELL TO PRODUCTION 1/20/09. PREVIOUS CIBP SET AT 5498'. NEW PBTD IS 5090'. |
| | Tubing Size: | | Tubing Setting Depth: | 4707 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | N/A | Test Method: | | | Hours Tested: | | Gas Type: | | | Gas Disposal: | | |
| Test Type | Measure |
|---|
| BBLS_H2O | 1680 | | BBLS_OIL | 0 | | BTU_GAS | 1170 | | CALC_BBLS_H2O | 1680 | | CALC_MCF_GAS | 504 | | CASING_PRESS | 2050 | | MCF_GAS | 504 | | TUBING_PRESS | 1000 |
| | Perforation Data: | | Interval Top: | | # Of Holes: | | | Interval Bottom: | | Hole Size: | |
|
|
|
|
|
|
|
| Reported Plugged | Y | 10/28/2025 |
| Out Of Service Repurposed | N | |
| Out Of Service | Y | Plugging Due Date
12/31/2029 |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive (SI ) | Y | Defined Inactive
10/31/2022 |
| Low Producing | Y | Production Period
10/2024 - 09/2025 |
| Total Oil Produced (Barrels) | 0 |
| Total Gas Produced (MCF) | 0 |
| GOR | |
| GOR Determination | MCFE |
| Average BOE per Day | 0.000 |
| Average MCFE per Day | 0.000 |
| Federal Financial Assurance | i | Y |
|
|
