Wellbore #00 Wellbore Classification: GW Status: PR - 1/25/2008 Measured TD: 6160 ft. Vertical TD: 6116 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 1/25/2008 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 20073734 | Expiration Date: | 9/5/2008 | | Proposed Top PZ Location: | Sec: Twp: | Footage: 1205 1980 | | Bottom Hole Location: | Sec:2 Twp: 7S 92W | Footage: 1205 1980 | | Proposed Depth/Form: | 6416 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | HUNTER MESA UNI | Unit Number: | COC 55972E | | Formation And Spacing: | Code: ILES , Formation: ILES , Order: , Unit Acreage: , Drill Unit: | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: , Unit Acreage: , Drill Unit: |
| | |

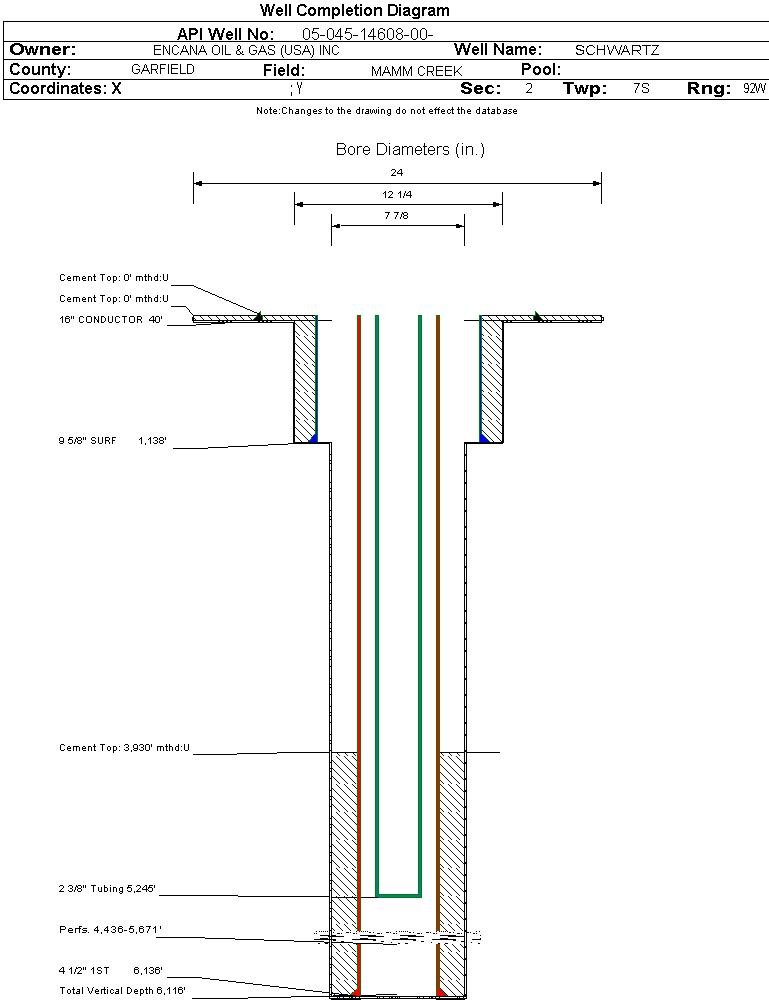

| Wellbore Completed | | Completion Date: | 11/6/2007 | | Spud Date: | 10/21/2007 | Spud Date Is: | ACTUAL | | Measured TD: | 6160 ft. | Measured PB depth: | 5984 ft. | | True Vertical TD: | 6116 ft. | True Vertical PB depth: | | | Top PZ Location: | Sec:2 Twp: 7S 92W | Footage: 1205 FSL 1987 FEL | | Bottom Hole Location: | Sec:2 Twp: 7S 92W | Footage: 1205 FSL 1987 FEL | | Log Types: | CEMENT BOND LOG, RST | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 16 in., Top: 0 ft., Depth: 40 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 4, Top: 0 ft., Bottom: 40 ft., Determination Method: CALC | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 1138 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 528, Top: 0 ft., Bottom: 1137 ft., Determination Method: CALC | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 6136 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 899, Top: 3930 ft., Bottom: 6160 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH | 0 ft. | 3303 ft. | N | N | | WILLIAMS FORK | 3304 ft. | 6160 ft. | N | N |
Formation WMFK Formation Classification: GW Status: PR - 1/25/2008 Interval Top: 4436 ft. Interval Bottom: 5671 ft.| Completed Information for Formation WILLIAMS FORK | | 1st Production Date: | 12/23/2007 | Choke Size: | 0.375 in. | | Formation Name: | WILLIAMS FORK | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 12/18/2007 | | Treatment Summary: | STAGES 1-4 TREATED W/ A TOTAL OF 32,638 BBLS OF SLICKWATER, 785,817 LBS 20-40 WHITE SAND, & 10,000 # NON API FLEX SAND. BRADENHEAD SQUEEZE JOB DONE. 4 HOLES AT 2870' SQUEEZED W/ 400 SX. TOC SQUEEZE: 4 SHOTS AT 3772' W/ 50 SX. |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 5245 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 1/25/2008 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 655 | | BBLS_OIL | 0 | | BTU_GAS | 1170 | | CALC_BBLS_H2O | 655 | | CALC_MCF_GAS | 803 | | CASING_PRESS | 1950 | | MCF_GAS | 803 | | TUBING_PRESS | 1250 |
| | Perforation Data: | | Interval Top: | 4436 ft. | # Of Holes: | 96 | | Interval Bottom: | 5671 ft. | Hole Size: | 0.33 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 51 |
| Total Gas Produced (MCF) | 5222 |
| GOR | 102392 |
| GOR Determination | MCFE |
| Average BOE per Day | 2.599 |
| Average MCFE per Day | 15.109 |
| Federal Financial Assurance | i | Y |
|
|
