COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-14602		Well Classification: GW Status: PR - 8/7/2007
Well Name/No:NORTH BANK #E3
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date8/7/2007
FacilityID:292127LocationID:336017
County:GARFIELD #045Location:SWNW 12 6S93W 6
Field:MAMM CREEK - #52500Elevation:5378 ft.
Basin:PICEANCE BASIN
Planned Location:2525FNL  108 FWLLat/Long: 39.541183 / -107.733517Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 39.541183 / -107.733517Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 8/7/2007             Measured TD: 9076 ft.    Vertical TD: 8989 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 8/7/2007
Wellbore PermitDIRECTIONAL
Permit #:20074539 Expiration Date:8/30/2008
Proposed Top PZ Location:Sec:11 Twp: 6S 93W Footage: 2078 FSL  629 FEL
Bottom Hole Location:Sec:11 Twp: 6S 93W Footage: 2078 FSL  629 FEL
Proposed Depth/Form:9138 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: ILES , Formation: ILES , Order: 191-39 , Unit Acreage: 160, Drill Unit: SE/4
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 191-39 , Unit Acreage: 160, Drill Unit: SE/4
Wellbore Completed
Completion Date:12/12/2007
Spud Date:9/17/2007Spud Date Is:ACTUAL
Measured TD:9076 ft.Measured PB depth:8989 ft.
True Vertical TD:8989 ft.True Vertical PB depth:8902 ft.
Top PZ Location:Sec:11 Twp: 6S 93WFootage: 2078 FSL  629 FEL
Bottom Hole Location:Sec:11 Twp: 6S 93WFootage: 2078 FSL  629 FEL
Log Types:TRIPLE COMBO (RMTE/CCL/GR) & CBL

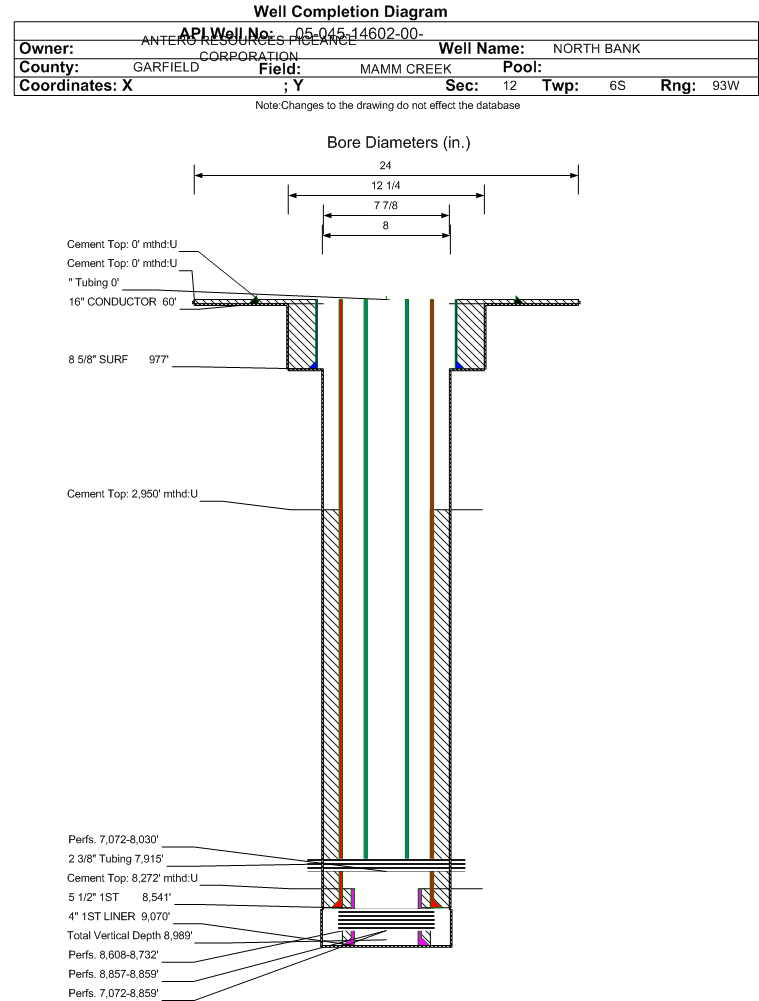

Casing:String Type: CONDUCTOR, Hole Size: 24 in., Size: 16 in., Top: 0 ft., Depth: 60 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: , Top: 0 ft., Bottom: 60 ft., Determination Method: CALC
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 977 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: , Top: 0 ft., Bottom: 977 ft., Determination Method: CALC
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 8541 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 850, Top: 2950 ft., Bottom: 9076 ft., Determination Method: CBL
Casing:String Type: 1ST LINER, Hole Size: , Size: 4 in., Top: 8272 ft., Depth: 9070 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 120, Top: 8272 ft., Bottom: 9070 ft., Determination Method:
FormationInterval TopLog BottomCoredDSTs
WILLIAMS FORK4370 ft.NN
CAMEO7024 ft.NN
ROLLINS8071 ft.NN
COZZETTE8582 ft.NN
CORCORAN8854 ft.NN

Formation CRCRN                   Formation Classification:  GW                   Status:  SI - 10/1/2025                 Interval Top: 8857 ft.    Interval Bottom: 8859 ft.

 Completed Information for Formation CORCORAN
1st Production Date:1/20/2008Choke Size:
Formation Name:CORCORANCommingled:
Production Method:
Open Hole Completion:
Formation Treatment
Treatment Date:1/4/2008
Treatment Summary:FRAC W/ 10,648 BBLS OF 2% KCL, 138,200 LBS 30/50 & 96,200 LBS 20/40 SAND.
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation CRCRN.
Perforation Data:
Interval Top:8857 ft.# Of Holes:48
Interval Bottom:8859 ft.Hole Size:0.42 in.

Formation COZZ                     Formation Classification:  GW                     Status:  SI - 10/1/2025                 Interval Top: 8608 ft.    Interval Bottom: 8732 ft.

 Completed Information for Formation COZZETTE
1st Production Date:1/20/2008Choke Size:
Formation Name:COZZETTECommingled:
Production Method:
Open Hole Completion:
Formation Treatment
Treatment Date:1/4/2008
Treatment Summary:FRAC W/ 10,648 BBLS OF 2% KCL, 138,200 LBS 30/50 & 96,200 LBS 20/40 SAND.
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation COZZ.
Perforation Data:
Interval Top:8608 ft.# Of Holes:48
Interval Bottom:8732 ft.Hole Size:0.42 in.

Formation WFCM                     Formation Classification:  GW                     Status:  PR - 8/7/2007                  Interval Top: 7072 ft.    Interval Bottom: 8030 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:1/20/2008Choke Size:
Formation Name:WILLIAMS FORK - CAMEOCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:1/4/2008
Treatment Summary:FRAC W/ 22,395 BBLS OF 2% KCL, 286,000# 30/50 SAND & 200,400 LBS 20/40 SAND
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation WFCM.
Perforation Data:
Interval Top:7072 ft.# Of Holes:216
Interval Bottom:8030 ft.Hole Size:0.42 in.

Formation WFILS                   Formation Classification:  GW                   Status:  CM - 1/25/2008                 Interval Top: 7072 ft.    Interval Bottom: 8859 ft.

 Completed Information for Formation WILLIAMS FORK-ILES
1st Production Date:1/20/2008Choke Size:0.250 in.
Formation Name:WILLIAMS FORK-ILESCommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:1/4/2008
Treatment Summary:
Tubing Size:2.375 in.Tubing Setting Depth:7915 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:1/25/2008Test Method:FLOWING
Hours Tested:24Gas Type:WET
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 395
BTU_GAS 1058
CALC_BBLS_H2O 395
CALC_MCF_GAS 664
CASING_PRESS 1050
MCF_GAS 664
TUBING_PRESS 1175
Perforation Data:
Interval Top:7072 ft.# Of Holes:264
Interval Bottom:8859 ft.Hole Size:0.42 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
November 2024 - October 2025i
Total Oil Produced (Barrels)1
Total Gas Produced (MCF)9482
GOR9482000
GOR DeterminationMCFE
Average BOE per Day4.481
Average MCFE per Day26.005

 Federal Financial Assurance  i

 Tribal Well  i No
