Wellbore #00 Wellbore Classification: GW Status: PR - 6/1/2012 Measured TD: 10370 ft. Vertical TD: 10016 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 6/1/2012 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 20074256 | Expiration Date: | 8/23/2008 | | Proposed Top PZ Location: | Sec: Twp: | Footage: 2121 FSL 660 FWL | | Bottom Hole Location: | Sec:33 Twp: 6S 97W | Footage: 2121 FSL 660 FWL | | Proposed Depth/Form: | 10166 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 510-18 , Unit Acreage: 320, Drill Unit: S/2 |
| | |

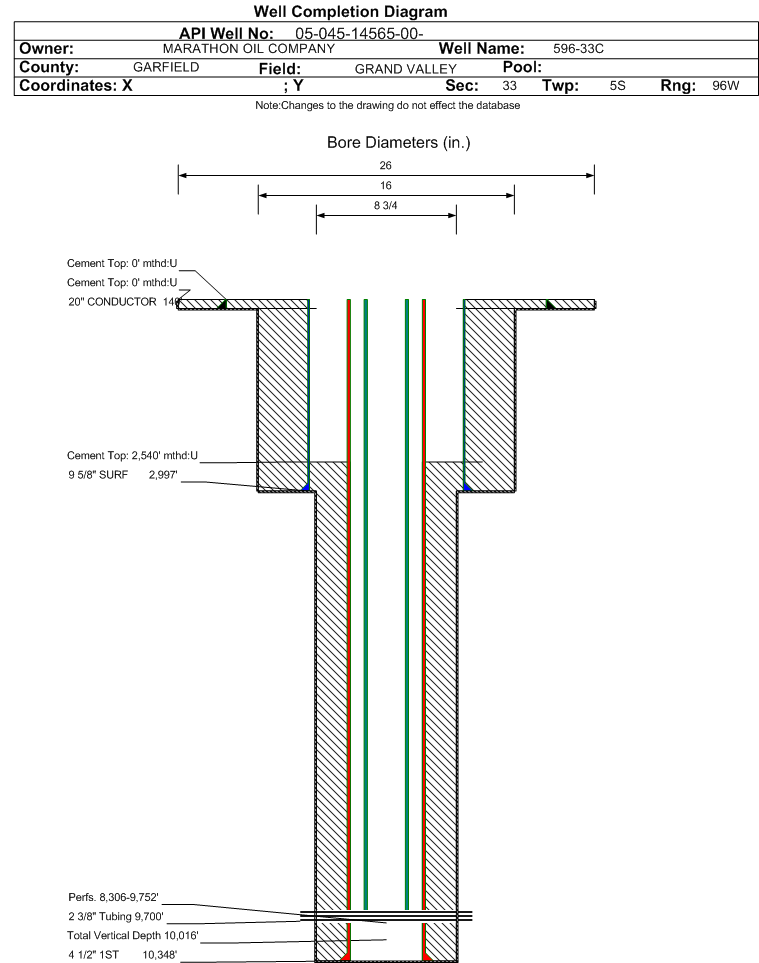

| Wellbore Completed | | Completion Date: | 10/1/2008 | | Spud Date: | 6/5/2008 | Spud Date Is: | ACTUAL | | Measured TD: | 10370 ft. | Measured PB depth: | 10281 ft. | | True Vertical TD: | 10016 ft. | True Vertical PB depth: | 9928 ft. | | Top PZ Location: | Sec:33 Twp: 5S 96W | Footage: 2157 FSL 700 FWL | | Bottom Hole Location: | Sec:33 Twp: 5S 96W | Footage: 2093 FSL 515 FWL | | Log Types: | NO LOGS RUN YET AND NO FORMATION TPS YET. AS DRILLED BHL AND TOP OF PROD. ZONE NOT YET CALCULATED | | Log Types: | | | Log Types: | DIGITAL ACOUSTILOG GAMMA RAY, RADIAL ANALYSIS BOND LONG, RESEVOIR PERFORMACE MONITOR | | Log Types: | DIGITAL ACOUSTILOG GAMMA RAY, RADIAL ANALYSIS BOND LOGS, RESERVOIR PERFORMANCE MONITOR | | Casing: | String Type: CONDUCTOR, Hole Size: 26 in., Size: 20 in., Top: 0 ft., Depth: 140 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: , Top: 0 ft., Bottom: , Determination Method: | | Casing: | String Type: SURF, Hole Size: 16 in., Size: 9.625 in., Top: 0 ft., Depth: 2997 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 1424, Top: 0 ft., Bottom: 2997 ft., Determination Method: CALC | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 4.5 in., Top: 0 ft., Depth: 10348 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 831, Top: 2540 ft., Bottom: 10348 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH G | 5060 ft. | | N | N | | FORT UNION | 5405 ft. | | N | N | | MESAVERDE | 6979 ft. | | N | N | | CAMEO | 9570 ft. | | N | N | | ROLLINS | 10093 ft. | | N | N |
Formation WFCM Formation Classification: GW Status: PR - 6/1/2012 Interval Top: 8306 ft. Interval Bottom: 9752 ft.| Completed Information for Formation WILLIAMS FORK - CAMEO | | 1st Production Date: | 6/25/2010 | Choke Size: | | | Formation Name: | WILLIAMS FORK - CAMEO | Commingled: | | | Production Method: | | | Open Hole Completion: | |
| | Formation Treatment | | Treatment Date: | 5/22/2010 | | Treatment Summary: | 7 STAGES: FRAC W/ 826,259# 30/50 OTTAWA SD & 24,298 BBLS SLICKWATER. SEE ATTACHED. |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 9700 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 7/10/2010 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 342 | | BTU_GAS | 1095 | | CALC_BBLS_H2O | 342 | | CALC_MCF_GAS | 1557 | | CASING_PRESS | 1300 | | GRAVITY_OIL | 54 | | MCF_GAS | 1557 | | TUBING_PRESS | 725 |
| | Perforation Data: | | Interval Top: | 8306 ft. | # Of Holes: | 164 | | Interval Bottom: | 9752 ft. | Hole Size: | 0.41 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 41 |
| Total Gas Produced (MCF) | 21276 |
| GOR | 518926 |
| GOR Determination | MCFE |
| Average BOE per Day | 10.162 |
| Average MCFE per Day | 58.944 |
| Federal Financial Assurance | i | |
|
|
