Wellbore #00 Wellbore Classification: GW Status: PR - 6/7/2008 Measured TD: 10699 ft. Vertical TD: 9272 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 6/7/2008 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 20072968 | Expiration Date: | 7/30/2008 | | Proposed Top PZ Location: | Sec: Twp: | Footage: 2225 FSL 2521 FEL | | Bottom Hole Location: | Sec:24 Twp: 5S 96W | Footage: 2225 FSL 2521 FEL | | Proposed Depth/Form: | 12551 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 479-15,510, Unit Acreage: , Drill Unit: |
| | |

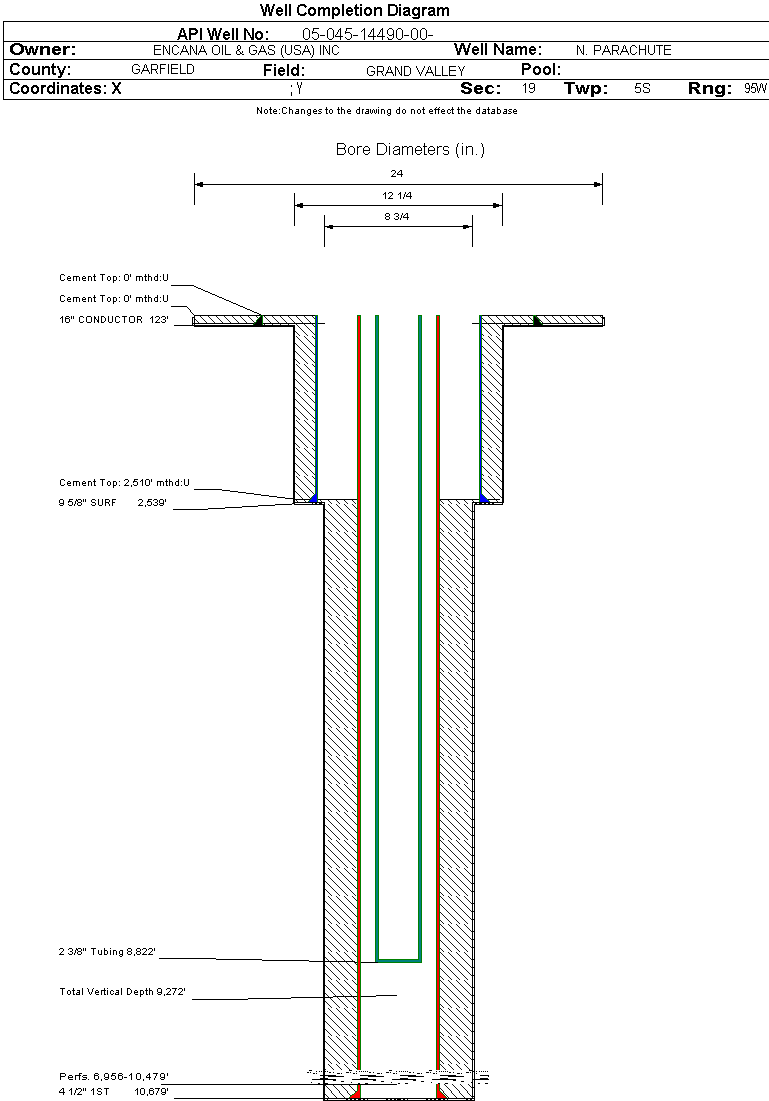

| Wellbore Completed | | Completion Date: | 1/4/2008 | | Spud Date: | 12/20/2007 | Spud Date Is: | ACTUAL | | Measured TD: | 10699 ft. | Measured PB depth: | 10606 ft. | | True Vertical TD: | 9272 ft. | True Vertical PB depth: | 9179 ft. | | Top PZ Location: | Sec:24 Twp: 5S 96W | Footage: 2286 FSL 2419 FEL | | Bottom Hole Location: | Sec:24 Twp: 5S 96W | Footage: 2286 FSL 2419 FEL | | Log Types: | CBL, MUD | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 16 in., Top: 0 ft., Depth: 123 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 400, Top: 0 ft., Bottom: 100 ft., Determination Method: CALC | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 2539 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 483, Top: 0 ft., Bottom: 2539 ft., Determination Method: CALC | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 4.5 in., Top: 0 ft., Depth: 10679 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 1547, Top: 2510 ft., Bottom: 10679 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WILLIAMS FORK | 6907 ft. | 10592 ft. | N | N | | ROLLINS | 10592 ft. | 10699 ft. | N | N |
Formation WMFK Formation Classification: GW Status: PR - 6/7/2008 Interval Top: 6956 ft. Interval Bottom: 10479 ft.| Completed Information for Formation WILLIAMS FORK | | 1st Production Date: | 3/29/2008 | Choke Size: | 0.375 in. | | Formation Name: | WILLIAMS FORK | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 2/26/2008 | | Treatment Summary: | STAGES 01-13 TREATED W/A TOTAL OF: 77,287 BBLS SLICKWATER; 335,000# 20/40 SAND; 181,000# 30/50 SAND. & 24 BBLS 15% HCI. |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 8822 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 6/7/2008 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BTU_GAS | 1170 | | CALC_MCF_GAS | 1323 | | CASING_PRESS | 1300 | | MCF_GAS | 1323 | | TUBING_PRESS | 800 |
| | Perforation Data: | | Interval Top: | 6956 ft. | # Of Holes: | 390 | | Interval Bottom: | 10479 ft. | Hole Size: | 0.42 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 89 |
| Total Gas Produced (MCF) | 15863 |
| GOR | 178235 |
| GOR Determination | MCFE |
| Average BOE per Day | 7.743 |
| Average MCFE per Day | 44.894 |
| Federal Financial Assurance | i | |
|
|
