Wellbore #00 Wellbore Classification: GW Status: PR - 5/22/2007 Measured TD: 10540 ft. Vertical TD: 9267 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 5/22/2007 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 20072967 | Expiration Date: | 7/30/2008 | | Proposed Top PZ Location: | Sec: Twp: | Footage: 1820 FSL 2129 FEL | | Bottom Hole Location: | Sec:24 Twp: 5S 96W | Footage: 1820 FSL 2129 FEL | | Proposed Depth/Form: | 12413 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 479-15,510, Unit Acreage: , Drill Unit: |
| | |

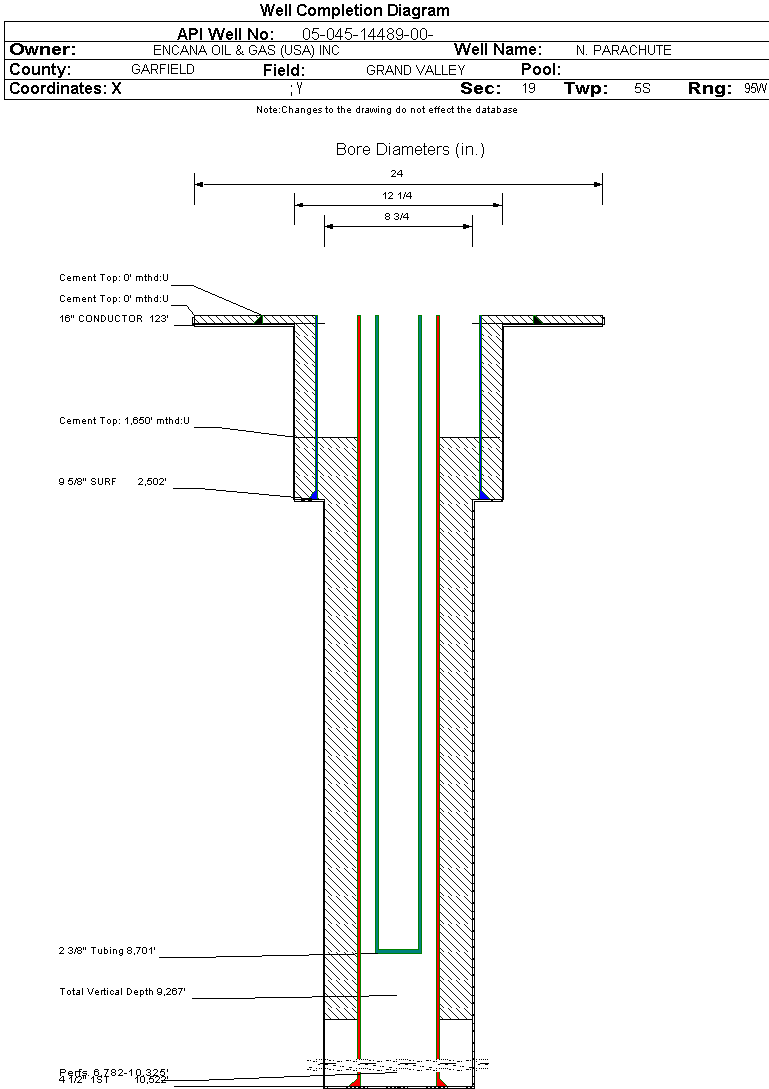

| Wellbore Completed | | Completion Date: | 1/17/2008 | | Spud Date: | 10/13/2007 | Spud Date Is: | ACTUAL | | Measured TD: | 10540 ft. | Measured PB depth: | 10477 ft. | | True Vertical TD: | 9267 ft. | True Vertical PB depth: | 9204 ft. | | Top PZ Location: | Sec:24 Twp: 5S 96W | Footage: 1883 FSL 2023 FEL | | Bottom Hole Location: | Sec:24 Twp: 5S 96W | Footage: 1883 FSL 2023 FEL | | Log Types: | CBL, MUD | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 16 in., Top: 0 ft., Depth: 123 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: , Top: 0 ft., Bottom: 112 ft., Determination Method: CALC | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 2502 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 500, Top: 0 ft., Bottom: 2502 ft., Determination Method: CALC | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 4.5 in., Top: 0 ft., Depth: 10522 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 1598, Top: 1650 ft., Bottom: 9606 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WILLIAMS FORK | 6735 ft. | 10412 ft. | N | N | | ROLLINS | 10412 ft. | 10540 ft. | N | N |
Formation WMFK Formation Classification: GW Status: PR - 5/31/2008 Interval Top: 6782 ft. Interval Bottom: 10325 ft.| Completed Information for Formation WILLIAMS FORK | | 1st Production Date: | 3/29/2008 | Choke Size: | 0.344 in. | | Formation Name: | WILLIAMS FORK | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 2/26/2008 | | Treatment Summary: | STAGES 01-13 TREATED W/A TOTAL OF: 65,140 BBLS SLICKWATER; 368,000# 20/40 SAND; 171,000# 30/50 SAND; & 36 BBLS 15% HCI. |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 8701 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 5/31/2008 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BTU_GAS | 1170 | | CASING_PRESS | 1400 | | MCF_GAS | 1434 | | TUBING_PRESS | 600 |
| | Perforation Data: | | Interval Top: | 6782 ft. | # Of Holes: | 390 | | Interval Bottom: | 10325 ft. | Hole Size: | 0.42 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 78 |
| Total Gas Produced (MCF) | 13699 |
| GOR | 175628 |
| GOR Determination | MCFE |
| Average BOE per Day | 6.682 |
| Average MCFE per Day | 38.764 |
| Federal Financial Assurance | i | |
|
|
