Wellbore #00 Wellbore Classification: GW Status: PR - 7/3/2008 Measured TD: 10378 ft. Vertical TD: 9373 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 7/3/2008 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 20072964 | Expiration Date: | 6/4/2007 | | Proposed Top PZ Location: | Sec: Twp: | Footage: 2471 FNL 1963 FEL | | Bottom Hole Location: | Sec:24 Twp: 5S 96W | Footage: 2471 FNL 1963 FEL | | Proposed Depth/Form: | 12102 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 510-13 , Unit Acreage: , Drill Unit: |
| | |

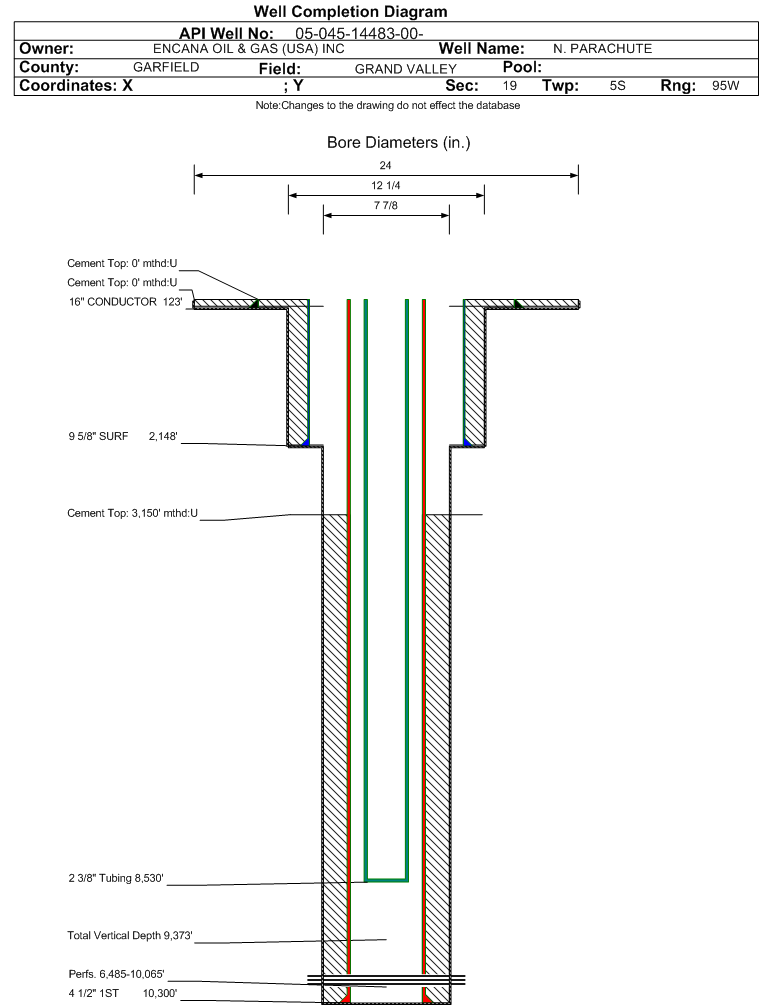

| Wellbore Completed | | Completion Date: | 3/6/2008 | | Spud Date: | 2/24/2008 | Spud Date Is: | ACTUAL | | Measured TD: | 10378 ft. | Measured PB depth: | 10253 ft. | | True Vertical TD: | 9373 ft. | True Vertical PB depth: | 9248 ft. | | Top PZ Location: | Sec:24 Twp: 5S 96W | Footage: 2455 FNL 1857 FEL | | Bottom Hole Location: | Sec:24 Twp: 5S 96W | Footage: 2455 FNL 1857 FEL | | Log Types: | CBL, MUD | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 16 in., Top: 0 ft., Depth: 123 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 400, Top: 0 ft., Bottom: 100 ft., Determination Method: CALC | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 2148 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 422, Top: , Bottom: 2132 ft., Determination Method: CALC | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 10300 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 1452, Top: 3150 ft., Bottom: 10300 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WILLIAMS FORK | 6451 ft. | 10142 ft. | N | N | | ROLLINS | 10142 ft. | 10378 ft. | N | N |
Formation WMFK Formation Classification: GW Status: PR - 7/3/2008 Interval Top: 6485 ft. Interval Bottom: 10065 ft.| Completed Information for Formation WILLIAMS FORK | | 1st Production Date: | 6/14/2008 | Choke Size: | 0.375 in. | | Formation Name: | WILLIAMS FORK | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 5/20/2008 | | Treatment Summary: | STAGES 01-10 TREATED W/A TOTAL OF: 46,046 BBLS SLICKWATER; 365,000# 20/40 SAND; 153,000# 30/50 SAND. |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 8530 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 7/3/2008 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 0 | | BBLS_OIL | 0 | | BTU_GAS | 1170 | | CALC_BBLS_H2O | 0 | | CALC_BBLS_OIL | 0 | | CALC_GOR | 0 | | CALC_MCF_GAS | 1523 | | CASING_PRESS | 1950 | | MCF_GAS | 1523 | | TUBING_PRESS | 1050 |
| | Perforation Data: | | Interval Top: | 6485 ft. | # Of Holes: | 300 | | Interval Bottom: | 10065 ft. | Hole Size: | 0.42 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 91 |
| Total Gas Produced (MCF) | 16525 |
| GOR | 181593 |
| GOR Determination | MCFE |
| Average BOE per Day | 8.060 |
| Average MCFE per Day | 46.737 |
| Federal Financial Assurance | i | |
|
|
