Facility Detail

COGIS - WELL SCOUT CARD

Related Insp MIT GIS Doc COA Wellbore Orders Bradenhead
Surface Location API# 05-045-14480		Well Classification: GW	Status: PR - 7/1/2020
Well Name/No:	N.PARACHUTE #EF08B-24 E19 59 (Click Well Name for Production Data)	Click Here for Transporter Gatherer Info
Operator:	QB ENERGY OPERATING LLC - 10844 (Click Operator Name for Company Detail Report)	Federal Or State Lease #:
Facility Status:	PR	Status Date	7/1/2020
FacilityID:	291676	LocationID:	335579
County:	GARFIELD #045	Location:	NWNW 19 5S95W 6
Field:	GRAND VALLEY - #31290	Elevation:	5993 ft.
Basin:	PICEANCE BASIN
Planned Location:	1277FNL 1328 FWL	Lat/Long: 39.603040 / -108.103870	Lat/Long Source: Field Measured
As Drilled Location:	Footages Not Available	Lat/Long: 39.603051 / -108.103887	Lat/Long Source: Field Measured

Wellbore And Formation Details -- select either a wellbore Or formation to expand.

Wellbore #00 Wellbore Classification: GW Status: PR - 7/1/2020 Measured TD: 9700 ft. Vertical TD: 9286 ft.

Wellbore Data for Original Wellbore		Wellbore Classification: GW PR - 7/1/2020
Wellbore Permit			DIRECTIONAL
Permit #:	20072957	Expiration Date:	7/30/2008
Proposed Top PZ Location:	Sec:24 Twp: 5S 96W	Footage: 1884 FNL 681 FEL
Bottom Hole Location:	Sec:24 Twp: 5S 96W	Footage: 1884 FNL 681 FEL
Proposed Depth/Form:	11378 ft.
Surface Mineral Owner Same:	Yes
Mineral Owner:	FEE	Surface Owner:	FEE
Unit:		Unit Number:
Formation And Spacing:	Code: WMFK , Formation: WILLIAMS FORK , Order: 510-13 , Unit Acreage: , Drill Unit:

Wellbore Completed
Completion Date:	5/7/2008
Spud Date:	2/18/2008	Spud Date Is:	ACTUAL
Measured TD:	9700 ft.	Measured PB depth:	9660 ft.
True Vertical TD:	9286 ft.	True Vertical PB depth:	9246 ft.
Top PZ Location:	Sec:24 Twp: 5S 96W	Footage: 1884 FNL 681 FEL
Bottom Hole Location:	Sec:24 Twp: 5S 96W	Footage: 1884 FNL 681 FEL
Log Types:	CBL, MUD

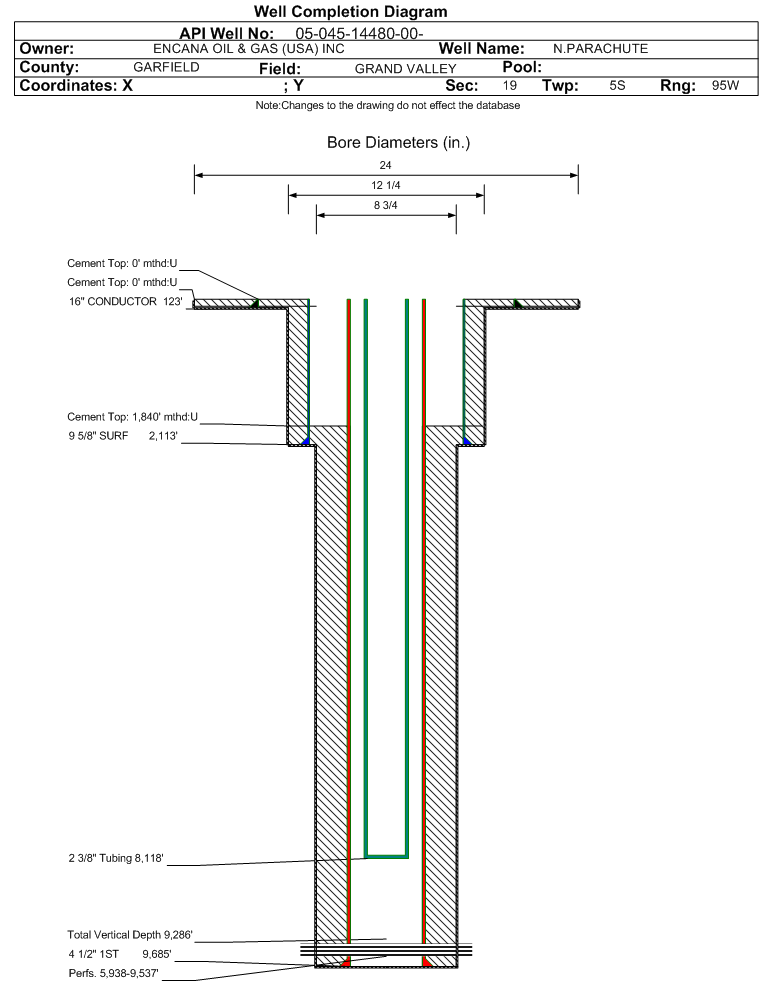

Casing:	String Type: CONDUCTOR, Hole Size: 24 in., Size: 16 in., Top: 0 ft., Depth: 123 ft., Weight: , Citings Type: ACTUAL
Cement:	Sacks: 400, Top: 0 ft., Bottom: 100 ft., Determination Method: CALC
Casing:	String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 2113 ft., Weight: , Citings Type: ACTUAL
Cement:	Sacks: 422, Top: 0 ft., Bottom: 2113 ft., Determination Method: CALC
Casing:	String Type: 1ST, Hole Size: 8.75 in., Size: 4.5 in., Top: 0 ft., Depth: 9685 ft., Weight: , Citings Type: ACTUAL
Cement:	Sacks: 1346, Top: 1840 ft., Bottom: 9685 ft., Determination Method: CBL
Formation	Interval Top	Log Bottom	Cored	DSTs
WILLIAMS FORK	5899 ft.	9648 ft.	N	N
ROLLINS	9648 ft.	9700 ft.	N	N

Formation WMFK Formation Classification: GW Status: PR - 7/1/2020 Interval Top: 5938 ft. Interval Bottom: 9537 ft.

Completed Information for Formation WILLIAMS FORK

1st Production Date:	10/22/2008	Choke Size:	0.281 in.
Formation Name:	WILLIAMS FORK	Commingled:	No
Production Method:
Open Hole Completion:	No

Formation Treatment
Treatment Date:	9/11/2008
Treatment Summary:	STAGES 01-11 TREATED WITH A TOTAL OF 56,570 BBLS SLICKWATER & 110,428# 30/50 SAND

Test Type	Measure
Tubing Size:	2.375 in.	Tubing Setting Depth:	8118 ft.
Tubing Packer Depth:		Tubing Multiple Packer:
Open Hole Top:		Open Hole Bottom:
Initial Test Data:
Test Date:	11/6/2008	Test Method:	FLOWING
Hours Tested:	24	Gas Type:	DRY
Gas Disposal:	SOLD
BBLS_H2O	50
BTU_GAS	1170
CALC_BBLS_H2O	50
CALC_MCF_GAS	1074
CASING_PRESS	2350
MCF_GAS	1074
TUBING_PRESS	1550

Perforation Data:
Interval Top:	5938 ft.	# Of Holes:	330
Interval Bottom:	9537 ft.	Hole Size:	0.42 in.

All Designations		Date
Primary Well Designation: None i
Reported Plugged	N
Out Of Service Repurposed	N
Out Of Service	N
Inactive Exception	N
Noticed Inactive	N
Defined Inactive	N
Low Producing	N

November 2024 - October 2025	i
BOE/MCFE/GOR Calculations Production for Previous 12 Months
Total Oil Produced (Barrels)	63
Total Gas Produced (MCF)	11343
GOR	180047
GOR Determination	MCFE
Average BOE per Day	5.536
Average MCFE per Day	32.102

Federal Financial Assurance

Tribal Well
