Wellbore #00 Wellbore Classification: GW Status: PR - 5/18/2007 Measured TD: 6107 ft. Vertical TD: 5907 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 5/18/2007 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 20072785 | Expiration Date: | 7/17/2008 | | Proposed Top PZ Location: | Sec: Twp: | Footage: 1409 FNL 1124 FEL | | Bottom Hole Location: | Sec:14 Twp: 7S 96W | Footage: 1409 FNL 1124 FEL | | Proposed Depth/Form: | 6063 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEDERAL | Surface Owner: | FEDERAL | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 510-9 , Unit Acreage: , Drill Unit: |
| | |

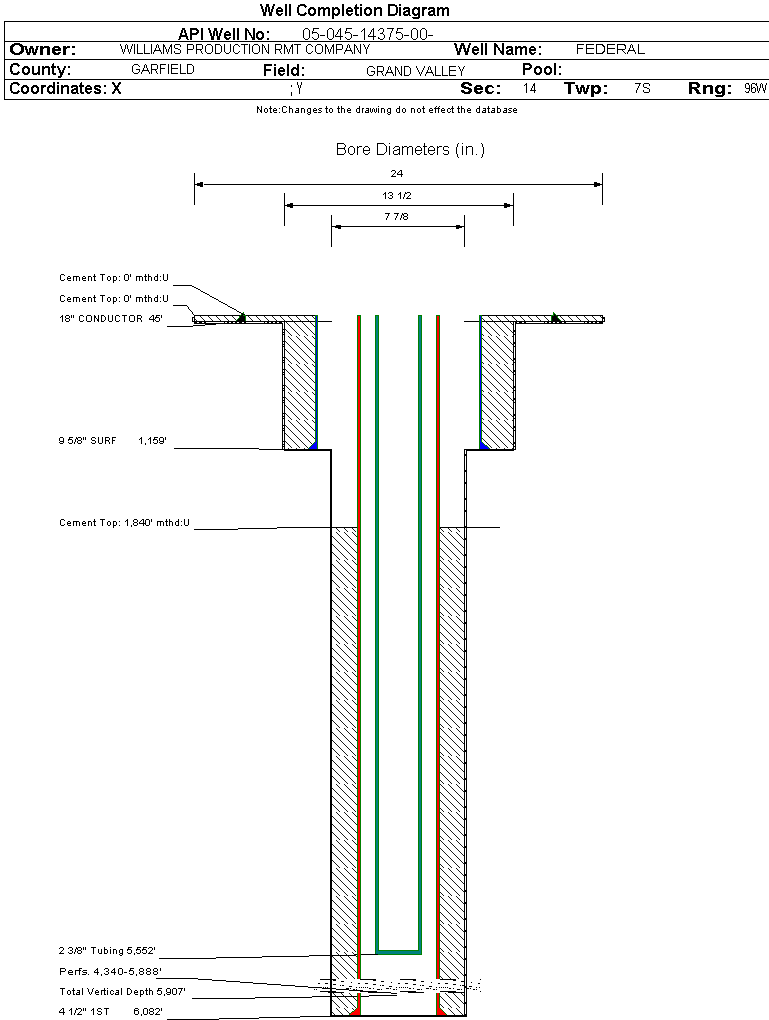

| Wellbore Completed | | Completion Date: | 11/16/2007 | | Spud Date: | 11/8/2007 | Spud Date Is: | ACTUAL | | Measured TD: | 6107 ft. | Measured PB depth: | 6019 ft. | | True Vertical TD: | 5907 ft. | True Vertical PB depth: | 5819 ft. | | Top PZ Location: | Sec:14 Twp: 7S 96W | Footage: 1415 FNL 1132 FEL | | Bottom Hole Location: | Sec:14 Twp: 7S 96W | Footage: 1415 FNL 1132 FEL | | Log Types: | CBL; RMTE; MUD | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 18 in., Top: 0 ft., Depth: 45 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 25, Top: 0 ft., Bottom: 45 ft., Determination Method: | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1159 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 375, Top: 0 ft., Bottom: 1159 ft., Determination Method: | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 6082 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 831, Top: 1840 ft., Bottom: 6082 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH G | 1019 ft. | | N | N | | MESAVERDE | 2990 ft. | | N | N | | CAMEO | 5484 ft. | | N | N | | ROLLINS | 5950 ft. | | N | N |
Formation WFCM Formation Classification: GW Status: PR - 4/7/2008 Interval Top: 4340 ft. Interval Bottom: 5888 ft.| Completed Information for Formation WILLIAMS FORK - CAMEO | | 1st Production Date: | 1/10/2008 | Choke Size: | 0.203 in. | | Formation Name: | WILLIAMS FORK - CAMEO | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 12/26/2007 | | Treatment Summary: | 3048 GALS 7.5% HCL; 767,300# 30/50 SAND; 21,452 BBLS SLICKWATER |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 5552 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 4/7/2008 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BTU_GAS | 1097 | | CALC_BBLS_H2O | 0 | | CALC_BBLS_OIL | 0 | | CASING_PRESS | 1280 | | MCF_GAS | 1254 | | TUBING_PRESS | 1206 |
| | Perforation Data: | | Interval Top: | 4340 ft. | # Of Holes: | 100 | | Interval Bottom: | 5888 ft. | Hole Size: | 0.35 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 15 |
| Total Gas Produced (MCF) | 12858 |
| GOR | 857200 |
| GOR Determination | MCFE |
| Average BOE per Day | 6.104 |
| Average MCFE per Day | 35.393 |
| Federal Financial Assurance | i | Y |
|
|
