COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITGIS Map GISOld GIS Map Old GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-14372		Well Classification: GW Status: PR - 2/1/2022
Well Name/No:DIXON FED CA #B6
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:COC65762
Facility Status:PRStatus Date2/1/2022
FacilityID:291433LocationID:311696
County:GARFIELD #045Location:NWSW 15 6S92W 6
Field:MAMM CREEK - #52500Elevation:5513 ft.
Basin:PICEANCE BASIN
Planned Location:1581FSL  762 FWLLat/Long: 39.524116 / -107.659764Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 39.524117 / -107.659764Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 2/1/2022             Measured TD: 8146 ft.    Vertical TD: 7455 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 2/1/2022
Wellbore PermitDIRECTIONAL
Permit #: Expiration Date:2/17/2013
Proposed Top PZ Location:Sec:15 Twp: 6S 92W Footage: 1806 FSL  1964 FWL
Bottom Hole Location:Sec:15 Twp: 6S 92W Footage: 1806 FSL  1964 FWL
Proposed Depth/Form:7693 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEDERALSurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: ILES , Formation: ILES , Order: 191-25 , Unit Acreage: 320, Drill Unit: S/2
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 191-24 , Unit Acreage: 320, Drill Unit: S/2
Casing:String Type: CONDUCTOR, Hole Size: 24 in., Size: 16 in., Top: 0 ft., Depth: 60 ft., Weight: 55# , Citings Type: PLANNED
Cement:Sacks: 177, Top: 0 ft., Bottom: 60 ft.
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 1000 ft., Weight: 24/32# , Citings Type: PLANNED
Cement:Sacks: 416, Top: 0 ft., Bottom: 1000 ft.
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7693 ft., Weight: 11.6# , Citings Type: PLANNED
Cement:Sacks: 356, Top: , Bottom: 7693 ft.
Wellbore Completed
Completion Date:2/26/2012
Spud Date:7/12/2011Spud Date Is:ACTUAL
Measured TD:8146 ft.Measured PB depth:8090 ft.
True Vertical TD:7455 ft.True Vertical PB depth:7399 ft.
Top PZ Location:Sec:15 Twp: 6S 92WFootage: 1061 FSL  2381 FEL
Bottom Hole Location:Sec:15 Twp: 6S 92WFootage: 1048 FSL  2315 FEL
Log Types:Temp Log, CBL, Mud Log
Log Types:CBL, Temp, Mud

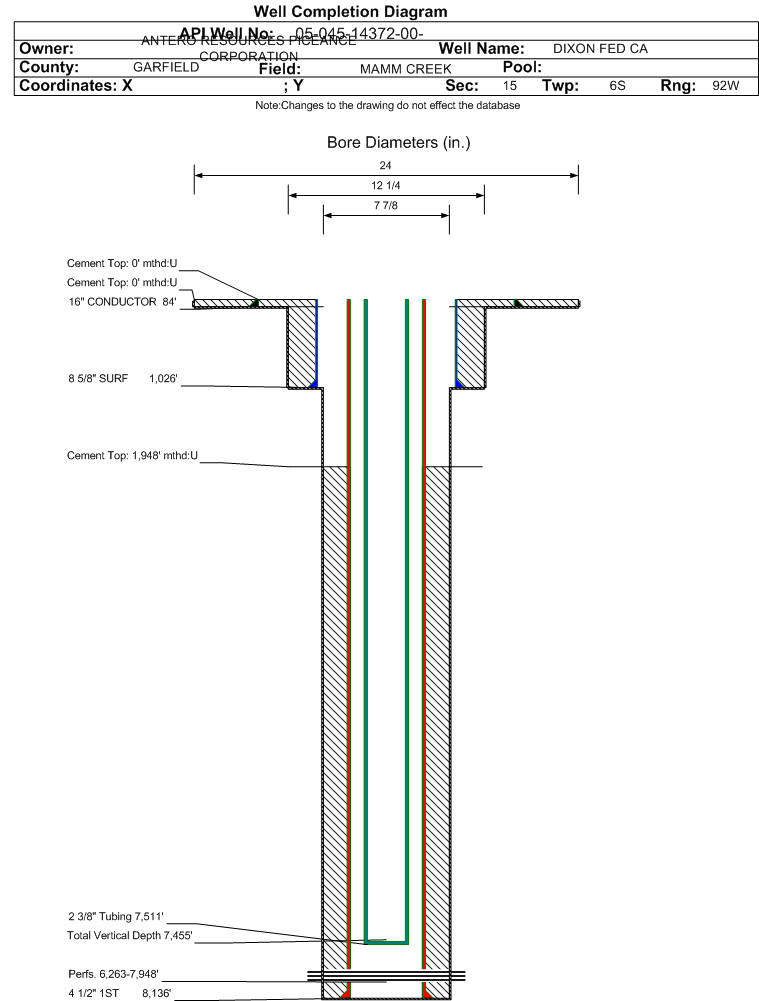

Casing:String Type: CONDUCTOR, Hole Size: 24 in., Size: 16 in., Top: 0 ft., Depth: 84 ft., Weight: 55# , Citings Type: ACTUAL
Cement:Sacks: 177, Top: 0 ft., Bottom: 84 ft., Determination Method: CALC
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 1026 ft., Weight: 32# , Citings Type: ACTUAL
Cement:Sacks: 365, Top: 0 ft., Bottom: 1030 ft., Determination Method: CALC
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 8136 ft., Weight: 11.6# , Citings Type: ACTUAL
Cement:Sacks: 1105, Top: 1948 ft., Bottom: 8146 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
WILLIAMS FORK4020 ft.
ROLLINS7973 ft.

Formation WFCM                     Formation Classification:  GW                     Status:  PR - 2/1/2022                  Interval Top: 6263 ft.    Interval Bottom: 7948 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:3/20/2012Choke Size:
Formation Name:WILLIAMS FORK - CAMEOCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:3/18/2012
Treatment Summary:WFCM - Frac'd with 90,048 bbls Slickwater, 1,709,800 lbs 20/40 Sand, 215,400 lbs 20/40 SLC sand
Tubing Size:2.375 in.Tubing Setting Depth:7511 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:4/16/2012Test Method:Flowing
Hours Tested:24Gas Type:WET
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 484
BTU_GAS 1112
CALC_BBLS_H2O 484
CALC_MCF_GAS 2949
CASING_PRESS 1025
MCF_GAS 2949
TUBING_PRESS 1775
Perforation Data:
Interval Top:6263 ft.# Of Holes:208
Interval Bottom:7948 ft.Hole Size:0.37 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
February 2025 - January 2026i
Total Oil Produced (Barrels)277
Total Gas Produced (MCF)21423
GOR77339
GOR DeterminationMCFE
Average BOE per Day10.892
Average MCFE per Day63.135

 Federal Financial Assurance  i

 Tribal Well  i No
