Wellbore #00 Wellbore Classification: GW Status: PR - 5/1/2023 Measured TD: 10950 ft. Vertical TD: 10823 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 5/1/2023 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 20073345 | Expiration Date: | 7/12/2008 | | Proposed Top PZ Location: | Sec:5 Twp: 5S 96W | Footage: 1629 FNL 315 FEL | | Bottom Hole Location: | Sec:5 Twp: 5S 96W | Footage: 1629 FNL 315 FEL | | Proposed Depth/Form: | 12072 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: SEGO , Formation: SEGO , Order: , Unit Acreage: , Drill Unit: | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 510-13 , Unit Acreage: , Drill Unit: |
| | |

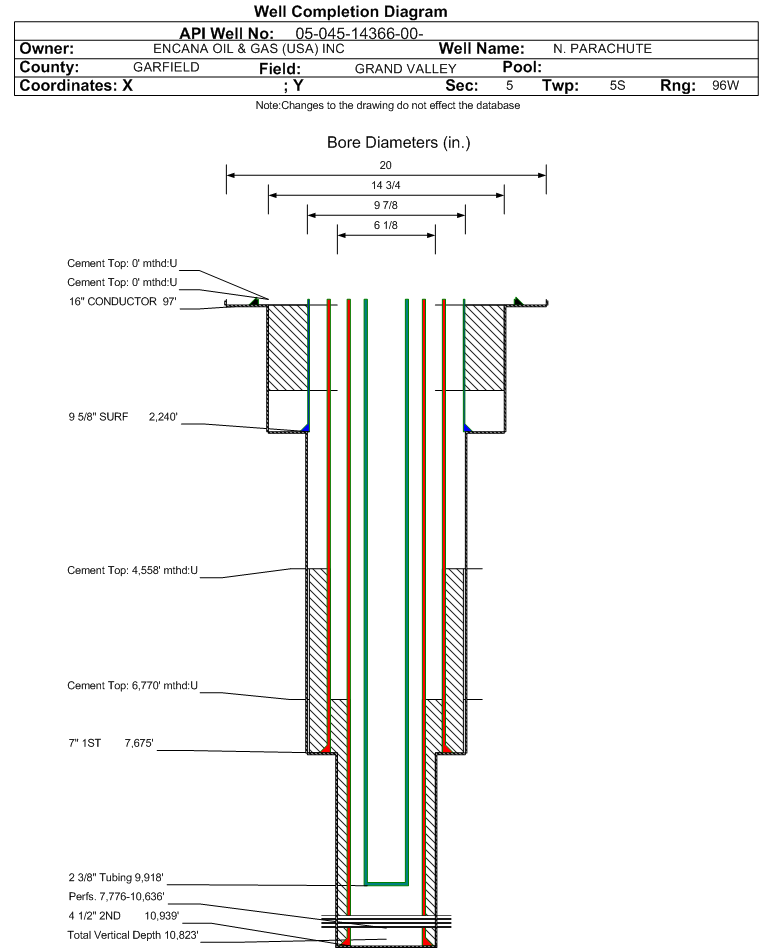

| Wellbore Completed | | Completion Date: | 10/10/2007 | | Spud Date: | 8/9/2007 | Spud Date Is: | ACTUAL | | Measured TD: | 10950 ft. | Measured PB depth: | 10936 ft. | | True Vertical TD: | 10823 ft. | True Vertical PB depth: | 10809 ft. | | Top PZ Location: | Sec:5 Twp: 5S 96W | Footage: 1629 FNL 315 FEL | | Bottom Hole Location: | Sec:5 Twp: 5S 96W | Footage: 1629 FNL 315 FEL | | Log Types: | MUD , CBL (RADIAL ANALYSIS BOND), HI-DEF INDUCTION/COMP-DENS-NEUTRON (2) , RES PERFORMANCE MONITOR , 6-ARM CALIPER , BOREHOLE PROFILE , MINILOG/G.R. (2) | | Casing: | String Type: CONDUCTOR, Hole Size: 20 in., Size: 16 in., Top: 0 ft., Depth: 97 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 140, Top: 0 ft., Bottom: 97 ft., Determination Method: CALC | | Casing: | String Type: SURF, Hole Size: 14.75 in., Size: 9.625 in., Top: 0 ft., Depth: 2240 ft., Weight: 36 , Citings Type: ACTUAL | | Cement: | Sacks: 1543, Top: 0 ft., Bottom: 1543 ft., Determination Method: CALC | | Casing: | String Type: 1ST, Hole Size: 9.875 in., Size: 7 in., Top: 0 ft., Depth: 7675 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 364, Top: 4558 ft., Bottom: 7700 ft., Determination Method: CBL | | Casing: | String Type: 2ND, Hole Size: 6.125 in., Size: 4.5 in., Top: 0 ft., Depth: 10939 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 181, Top: 6770 ft., Bottom: 10939 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH | 3378 ft. | | N | N | | OHIO CREEK | 6796 ft. | | N | N | | WILLIAMS FORK | 7225 ft. | | N | N | | CAMEO | 10238 ft. | | N | N | | ROLLINS | 10950 ft. | | N | N |
Formation WMFK Formation Classification: GW Status: PR - 5/1/2023 Interval Top: 7776 ft. Interval Bottom: 10636 ft.| Completed Information for Formation WILLIAMS FORK | | 1st Production Date: | 5/17/2008 | Choke Size: | 0.313 in. | | Formation Name: | WILLIAMS FORK | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 4/16/2008 | | Treatment Summary: | 54404 BBLS SLICKWATER, 780357 LBS OTTAWA 40/70 SAND, 1096753 LBS OTTAWA 20/40 SAND, 154887 LBS 100 MESH SAND |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 9918 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 5/17/2008 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BTU_GAS | 1170 | | CASING_PRESS | 2975 | | MCF_GAS | 180 | | TUBING_PRESS | 290 |
| | Perforation Data: | | Interval Top: | 7776 ft. | # Of Holes: | 234 | | Interval Bottom: | 10636 ft. | Hole Size: | 0.34 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 71 |
| Total Gas Produced (MCF) | 11442 |
| GOR | 161154 |
| GOR Determination | MCFE |
| Average BOE per Day | 5.605 |
| Average MCFE per Day | 32.498 |
| Federal Financial Assurance | i | |
|
|
