Wellbore #00 Wellbore Classification: GW Status: PR - 5/15/2007 Measured TD: 10784 ft. Vertical TD: 10055 ft. Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 5/15/2007 | Wellbore Permit | DIRECTIONAL | Permit #: | 20072636 | Expiration Date: | 7/9/2008 | Proposed Top PZ Location: | Sec:22 Twp: 5S 95W | Footage: 929 FSL 1974 FEL | Bottom Hole Location: | Sec:22 Twp: 5S 95W | Footage: 929 FSL 1974 FEL | Proposed Depth/Form: | 11551 ft. | Surface Mineral Owner Same: | Yes | Mineral Owner: | FEE | Surface Owner: | FEE | Unit: | | Unit Number: | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 479-15,510, Unit Acreage: , Drill Unit: |
| | |

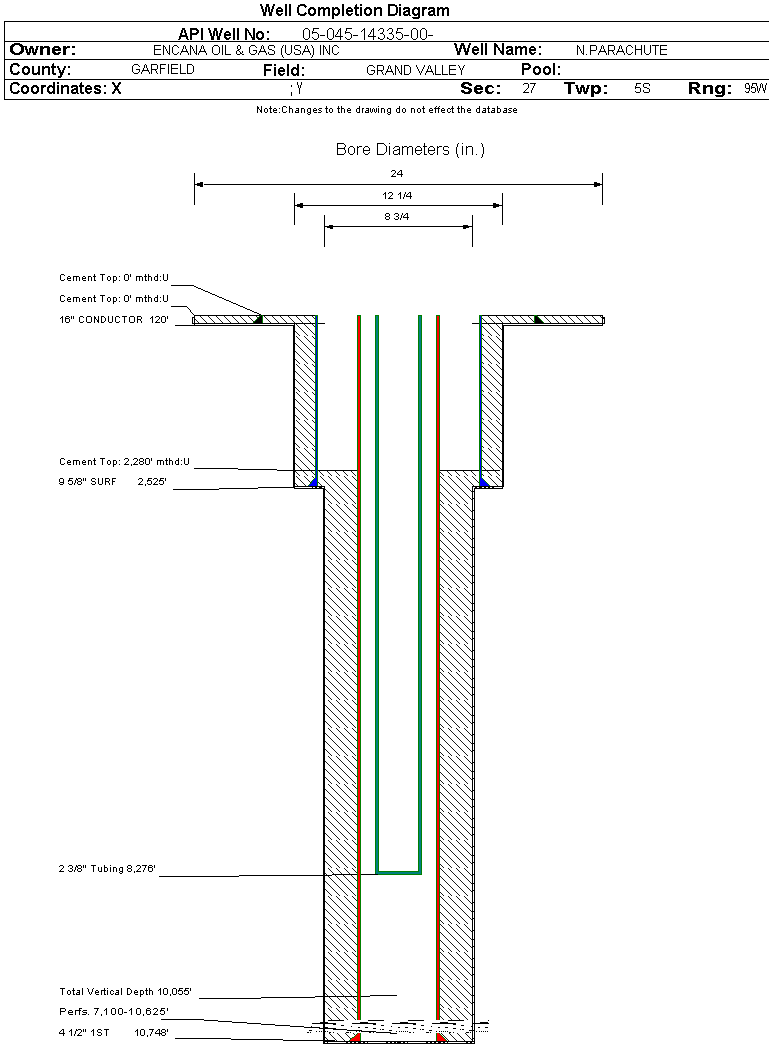

Wellbore Completed | Completion Date: | 8/7/2007 | Spud Date: | 7/21/2007 | Spud Date Is: | ACTUAL | Measured TD: | 10784 ft. | Measured PB depth: | 10704 ft. | True Vertical TD: | 10055 ft. | True Vertical PB depth: | | Top PZ Location: | Sec:22 Twp: 5S 95W | Footage: 929 FSL 1974 FEL | Bottom Hole Location: | Sec:22 Twp: 5S 95W | Footage: 929 FSL 1974 FEL | Log Types: | CBL, MUD | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 16 in., Top: 0 ft., Depth: 120 ft., Weight: , Citings Type: ACTUAL | Cement: | Sacks: 600, Top: 0 ft., Bottom: 120 ft., Determination Method: CALC | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 2525 ft., Weight: , Citings Type: ACTUAL | Cement: | Sacks: 480, Top: 0 ft., Bottom: 2525 ft., Determination Method: CALC | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 4.5 in., Top: 0 ft., Depth: 10748 ft., Weight: , Citings Type: ACTUAL | Cement: | Sacks: 1930, Top: 2280 ft., Bottom: 10747 ft., Determination Method: CBL | Formation | Interval Top | Log Bottom | Cored | DSTs | WILLIAMS FORK | 6895 ft. | 10676 ft. | N | N | ROLLINS | 10676 ft. | 10784 ft. | N | N |
Formation WMFK Formation Classification: GW Status: PR - 2/20/2008 Interval Top: 7100 ft. Interval Bottom: 10625 ft. Completed Information for Formation WILLIAMS FORK | 1st Production Date: | 11/2/2007 | Choke Size: | 0.375 in. | Formation Name: | WILLIAMS FORK | Commingled: | No | Production Method: | | Open Hole Completion: | No |
| Formation Treatment | Treatment Date: | 12/7/2007 | Treatment Summary: | STAGES 01-12 TREATED W/TOTAL OF: 3444 BBLS OF, 46,960 BBLS SLICKWATER, 68,000 LBS SAND 20/40 WHITE, 625,817 LBS 20-40 SAND, 346,770 LBS 30-50 SAND. AND 36 BBLS 15% HCL. |
| Tubing Size: | 2.375 in. | Tubing Setting Depth: | 8276 ft. | Tubing Packer Depth: | | Tubing Multiple Packer: | | Open Hole Top: | | Open Hole Bottom: | | Initial Test Data: | Test Date: | 2/20/2008 | Test Method: | FLOWING | Hours Tested: | 24 | Gas Type: | DRY | Gas Disposal: | SOLD | |
Test Type | Measure |
---|
BTU_GAS | 1170 | CASING_PRESS | 1150 | MCF_GAS | 1042 | TUBING_PRESS | 850 |
| Perforation Data: | Interval Top: | 7100 ft. | # Of Holes: | 360 | Interval Bottom: | 10625 ft. | Hole Size: | 0.43 in. |
|
|
|
|
|
Reported Plugged | N | |
Out Of Service Repurposed | N | |
Out Of Service | N | |
Inactive Exception | N | |
Noticed Inactive | N | |
Defined Inactive | N | |
Low Producing | N | |
Total Oil Produced (Barrels) | 83 |
Total Gas Produced (MCF) | 14792 |
GOR | 178216 |
GOR Determination | MCFE |
Average BOE per Day | 7.094 |
Average MCFE per Day | 41.145 |
Federal Financial Assurance | i | |
|
|
