COGIS - WELL SCOUT CARD

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-14332
Well Classification: GW Status: PR - 7/10/2007
Well Name/No:N.PARACHUTE #EF03B D27 595
(Click Well Name for Production Data)
Click Here for Transporter Gatherer Info
Operator:QB ENERGY OPERATING LLC - 10844
(Click Operator Name for Company Detail Report)
Federal Or State Lease #:
Facility Status:PRStatus Date7/10/2007
FacilityID:291335LocationID:335574
County:GARFIELD #045Location:NWNW 27 5S95W 6
Field:GRAND VALLEY - #31290Elevation:6353 ft.
Planned Location:663FNL  954 FWLLat/Long: 39.590200 / -108.046560Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 39.590200 / -108.046569Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 5/15/2007             Measured TD: 10120 ft.    Vertical TD: 9991 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 5/15/2007
Wellbore PermitDIRECTIONAL
Permit #:20073256 Expiration Date:7/9/2008
Proposed Top PZ Location:Sec: Twp: Footage: 353 FNL  1589 FWL
Bottom Hole Location:Sec:27 Twp: 5S 95W Footage: 353 FNL  1589 FWL
Proposed Depth/Form:11396 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 479-15,510, Unit Acreage: , Drill Unit:

Wellbore Completed
Completion Date:8/17/2007
Spud Date:7/13/2007Spud Date Is:ACTUAL
Measured TD:10120 ft.Measured PB depth:10058 ft.
True Vertical TD:9991 ft.True Vertical PB depth:
Top PZ Location:Sec:27 Twp: 5S 95WFootage: 363 FNL  2048 FWL
Bottom Hole Location:Sec:27 Twp: 5S 95WFootage: 363 FNL  2048 FWL
Log Types:CBL, MUD

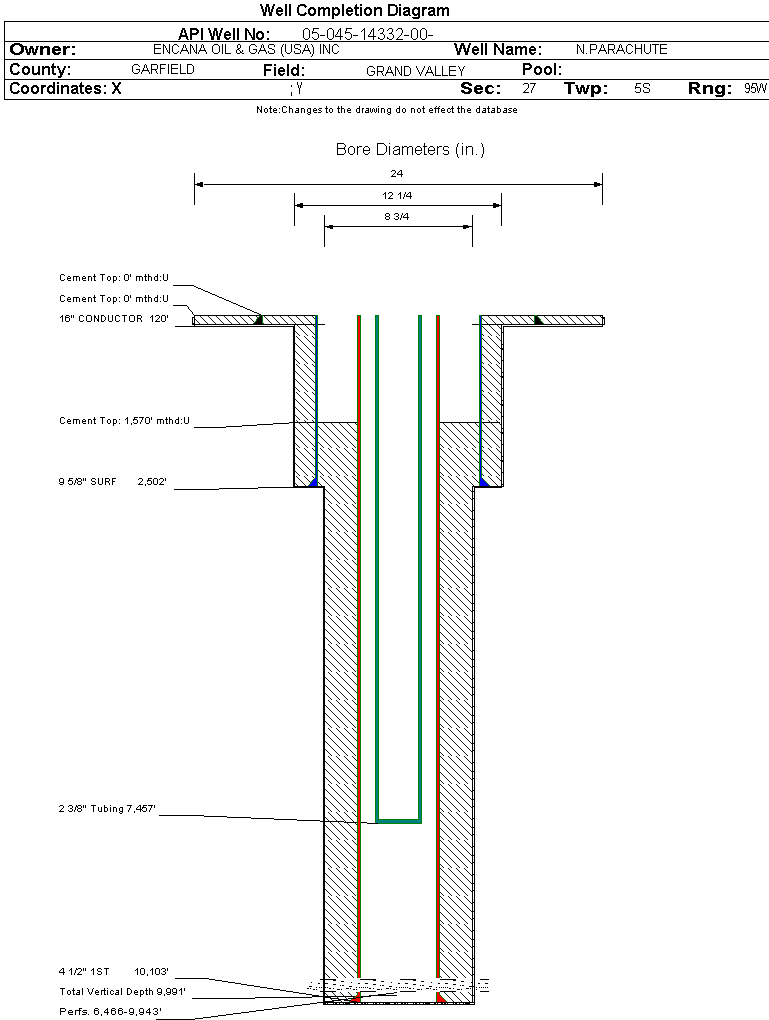

Casing:String Type: CONDUCTOR, Hole Size: 24 in., Size: 16 in., Top: 0 ft., Depth: 120 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 600, Top: 0 ft., Bottom: 120 ft., Determination Method: CALC
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 2502 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 380, Top: 0 ft., Bottom: 2502 ft., Determination Method: CALC
Casing:String Type: 1ST, Hole Size: 8.75 in., Size: 4.5 in., Top: 0 ft., Depth: 10103 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 1662, Top: 1570 ft., Bottom: 10103 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
WILLIAMS FORK6252 ft.10001 ft.NN
ROLLINS10001 ft.10120 ft.NN

Formation WMFK                     Formation Classification:  GW                     Status:  PR - 2/22/2008                 Interval Top: 6466 ft.    Interval Bottom: 9943 ft.

 Completed Information for Formation WILLIAMS FORK
1st Production Date:11/2/2007Choke Size:0.375 in.
Formation Name:WILLIAMS FORKCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:10/12/2007
Treatment Summary:STAGES 1-12 TREATED W/ 30,134 BBLS SLICKWATER, 688,591# 20/40 SAND, 371,273 # 30/50 SAND 36 BBLS 15% HCL.
Tubing Size:2.375 in.Tubing Setting Depth:7457 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:2/22/2008Test Method:FLOWING
Hours Tested:24Gas Type:DRY
Gas Disposal:SOLD
Test TypeMeasure
BTU_GAS 1170
CASING_PRESS 700
MCF_GAS 632
TUBING_PRESS 300
Perforation Data:
Interval Top:6466 ft.# Of Holes:375
Interval Bottom:9943 ft.Hole Size:0.43 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
May 2024 - April 2025i
Total Oil Produced (Barrels)64
Total Gas Produced (MCF)11424
GOR178500
GOR DeterminationMCFE
Average BOE per Day5.444
Average MCFE per Day31.580

 Federal Financial Assurance  i

 Tribal Well  i No
