Wellbore #00 Wellbore Classification: GW Status: PR - 3/15/2008 Measured TD: 7271 ft. Vertical TD: 7159 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 3/15/2008 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 20073602 | Expiration Date: | 6/26/2008 | | Proposed Top PZ Location: | Sec: Twp: | Footage: 2240 FNL 660 FWL | | Bottom Hole Location: | Sec:31 Twp: 6S 91W | Footage: 2240 FNL 660 FWL | | Proposed Depth/Form: | 7216 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | GIBSON GULCH UN | Unit Number: | COC052447X | | Formation And Spacing: | Code: ILES , Formation: ILES , Order: , Unit Acreage: , Drill Unit: | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: , Unit Acreage: , Drill Unit: |
| | |

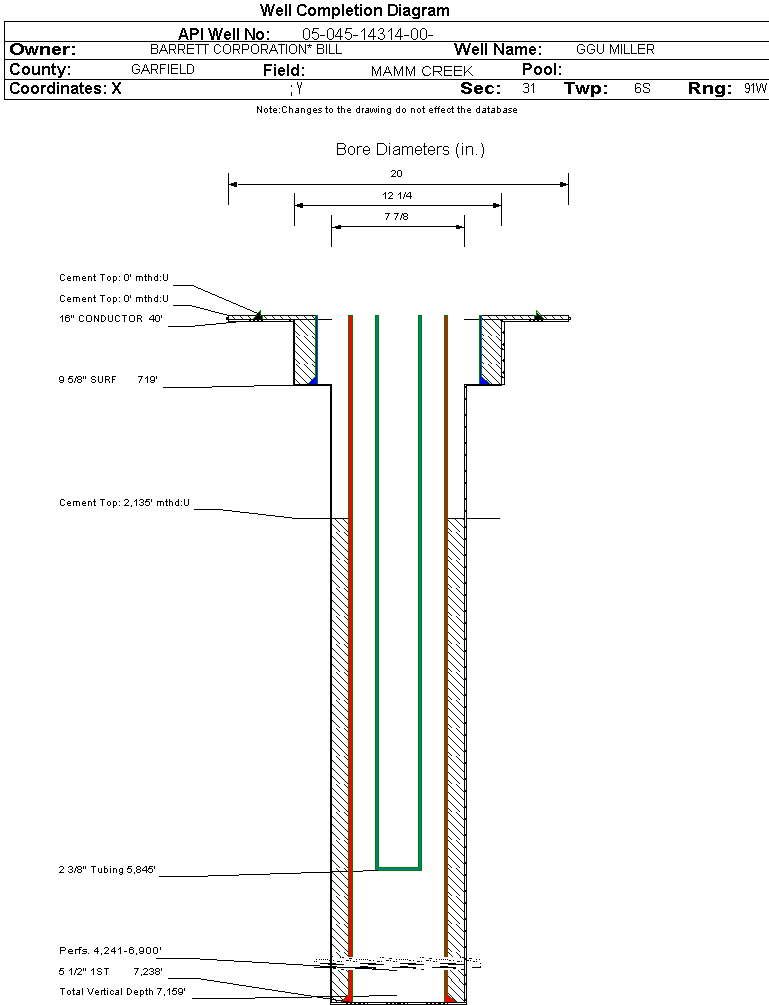

| Wellbore Completed | | Completion Date: | 8/17/2007 | | Spud Date: | 8/6/2007 | Spud Date Is: | ACTUAL | | Measured TD: | 7271 ft. | Measured PB depth: | 7193 ft. | | True Vertical TD: | 7159 ft. | True Vertical PB depth: | 7081 ft. | | Top PZ Location: | Sec:31 Twp: 6S 91W | Footage: 2236 FNL 691 FWL | | Bottom Hole Location: | Sec:31 Twp: 6S 91W | Footage: 2236 FNL 691 FWL | | Log Types: | HALLIBURTON HRI/SD/DSN/; SCHLUMBERGER CBL/GR/CCL, MUD | | Casing: | String Type: CONDUCTOR, Hole Size: 20 in., Size: 16 in., Top: , Depth: 40 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: , Top: 0 ft., Bottom: 40 ft., Determination Method: | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 719 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 230, Top: 0 ft., Bottom: 719 ft., Determination Method: | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 7238 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 840, Top: 2135 ft., Bottom: 7238 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WILLIAMS FORK | 3354 ft. | | N | N | | ROLLINS | 6927 ft. | | N | N |
Formation WMFK Formation Classification: GW Status: PR - 3/15/2008 Interval Top: 4241 ft. Interval Bottom: 6900 ft.| Completed Information for Formation WILLIAMS FORK | | 1st Production Date: | 1/25/2008 | Choke Size: | 0.375 in. | | Formation Name: | WILLIAMS FORK | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 12/26/2007 | | Treatment Summary: | 86,814 BBL SLICKWATER; 1,699,517 LBS OF 20-40 SAND; 192,764 LBS SLC 20-40. |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 5845 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 3/15/2008 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | WET | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 1 | | BBLS_OIL | 1 | | BTU_GAS | 1170 | | CALC_BBLS_H2O | 1 | | CALC_BBLS_OIL | 1 | | CALC_GOR | 223757 | | CALC_MCF_GAS | 2238 | | CASING_PRESS | 1400 | | MCF_GAS | 2238 |
| | Perforation Data: | | Interval Top: | 4241 ft. | # Of Holes: | 190 | | Interval Bottom: | 6900 ft. | Hole Size: | 0.34 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 114 |
| Total Gas Produced (MCF) | 21136 |
| GOR | 185403 |
| GOR Determination | MCFE |
| Average BOE per Day | 10.302 |
| Average MCFE per Day | 59.739 |
| Federal Financial Assurance | i | |
|
|
