COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-14311		Well Classification: GW Status: PR - 3/15/2008
Well Name/No:GGU MILLER #22A-31-691
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date3/15/2008
FacilityID:291173LocationID:334881
County:GARFIELD #045Location:SENW 31 6S91W 6
Field:MAMM CREEK - #52500Elevation:5994 ft.
Basin:PICEANCE BASIN
Planned Location:2333FNL  1519 FWLLat/Long: 39.484875 / -107.600514Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 39.484890 / -107.600520Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 3/15/2008             Measured TD: 7165 ft.    Vertical TD: 7105 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 3/15/2008
Wellbore PermitDIRECTIONAL
Permit #:20073599 Expiration Date:6/26/2008
Proposed Top PZ Location:Sec: Twp: Footage: 2355 FNL  2055 FWL
Bottom Hole Location:Sec:31 Twp: 6S 91W Footage: 2355 FNL  2055 FWL
Proposed Depth/Form:7116 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit:GIBSON GULCH UN Unit Number:COC052447X
Formation And Spacing:Code: ILES , Formation: ILES , Order: , Unit Acreage: , Drill Unit:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: , Unit Acreage: , Drill Unit:
Wellbore Completed
Completion Date:9/3/2007
Spud Date:8/21/2007Spud Date Is:ACTUAL
Measured TD:7165 ft.Measured PB depth:7102 ft.
True Vertical TD:7105 ft.True Vertical PB depth:7042 ft.
Top PZ Location:Sec:31 Twp: 6S 91WFootage: 2329 FNL  2072 FWL
Bottom Hole Location:Sec:31 Twp: 6S 91WFootage: 2329 FNL  2072 FWL
Log Types:HRI/SD/DSN; CBL/GR/CCL, MUD

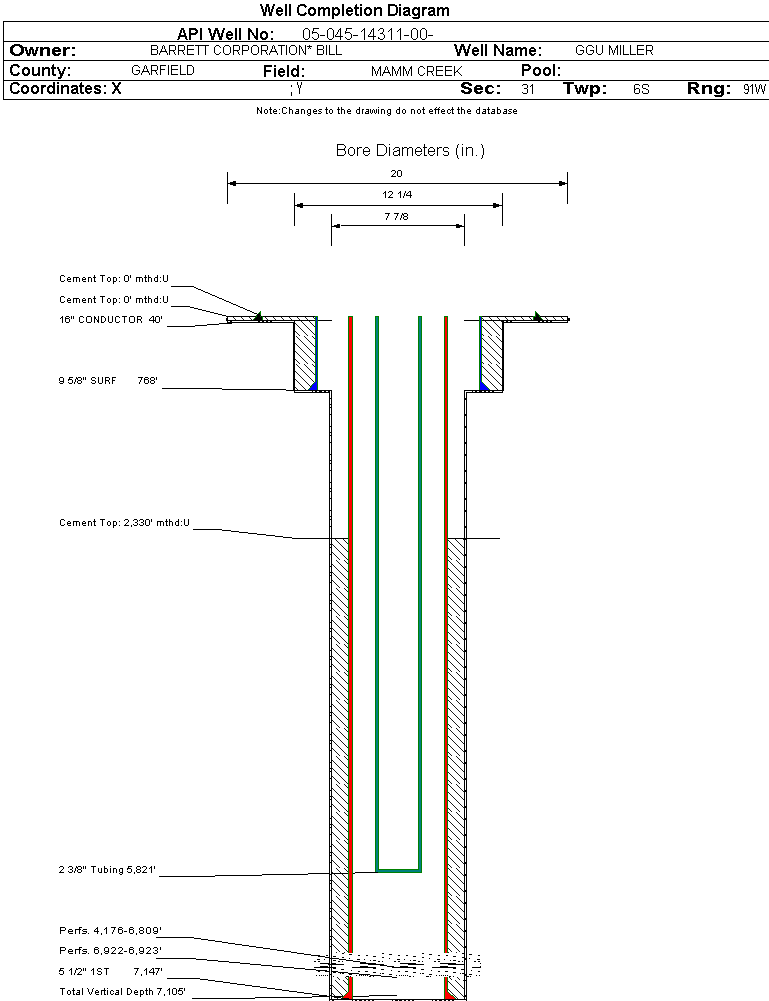

Casing:String Type: CONDUCTOR, Hole Size: 20 in., Size: 16 in., Top: , Depth: 40 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: , Top: 0 ft., Bottom: 40 ft., Determination Method:
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 768 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 230, Top: 0 ft., Bottom: 768 ft., Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 7147 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 840, Top: 2330 ft., Bottom: 7147 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
WILLIAMS FORK3191 ft.NN
ROLLINS6834 ft.NN

Formation RLNS                     Formation Classification:  GW                     Status:  PR - 2/17/2008                 Interval Top: 6922 ft.    Interval Bottom: 6923 ft.

 Completed Information for Formation ROLLINS
1st Production Date:2/13/2008Choke Size:0.406 in.
Formation Name:ROLLINSCommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:1/2/2008
Treatment Summary:3,621 BBLS SLICKWATER; 72,644# 20/40 SAND; 8,283# SLC 20/40.
Tubing Size:2.375 in.Tubing Setting Depth:5821 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:2/17/2008Test Method:FLOWING
Hours Tested:24Gas Type:WET
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 30
BBLS_OIL 4
BTU_GAS 1170
CALC_BBLS_H2O 30
CALC_BBLS_OIL 4
CALC_GOR 16910
CALC_MCF_GAS 67
CASING_PRESS 1100
MCF_GAS 67
TUBING_PRESS 875
Perforation Data:
Interval Top:6922 ft.# Of Holes:2
Interval Bottom:6923 ft.Hole Size:0.34 in.

Formation WMFK                     Formation Classification:  GW                     Status:  PR - 3/15/2008                 Interval Top: 4176 ft.    Interval Bottom: 6809 ft.

 Completed Information for Formation WILLIAMS FORK
1st Production Date:2/13/2008Choke Size:0.406 in.
Formation Name:WILLIAMS FORKCommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:1/2/2008
Treatment Summary:68,797 BBLS OF SLICKWATER; 1,380,228# 20/40 SAND; 157,379# SLC 20/40.
Tubing Size:2.375 in.Tubing Setting Depth:5821 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:3/15/2008Test Method:FLOWING
Hours Tested:24Gas Type:WET
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 572
BBLS_OIL 75
BTU_GAS 1170
CALC_BBLS_H2O 572
CALC_BBLS_OIL 75
CALC_GOR 16966
CALC_MCF_GAS 1277
CASING_PRESS 1100
GRAVITY_OIL 51
MCF_GAS 1277
TUBING_PRESS 875
Perforation Data:
Interval Top:4176 ft.# Of Holes:180
Interval Bottom:6809 ft.Hole Size:0.34 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
November 2024 - October 2025i
Total Oil Produced (Barrels)69
Total Gas Produced (MCF)13268
GOR192289
GOR DeterminationMCFE
Average BOE per Day6.457
Average MCFE per Day37.463

 Federal Financial Assurance  i

 Tribal Well  i No
