COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-14310		Well Classification: GW Status: PR - 3/15/2008
Well Name/No:GGU MILLER #13D-31-691
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date3/15/2008
FacilityID:291172LocationID:334881
County:GARFIELD #045Location:SENW 31 6S91W 6
Field:MAMM CREEK - #52500Elevation:5993 ft.
Basin:PICEANCE BASIN
Planned Location:2346FNL  1510 FWLLat/Long: 39.484839 / -107.600542Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 39.484850 / -107.600550Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 3/15/2008             Measured TD: 7176 ft.    Vertical TD: 7049 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 3/15/2008
Wellbore PermitDIRECTIONAL
Permit #:20073598 Expiration Date:6/26/2008
Proposed Top PZ Location:Sec: Twp: Footage: 2618 FNL  664 FWL
Bottom Hole Location:Sec:31 Twp: 6S 91W Footage: 2618 FNL  664 FWL
Proposed Depth/Form:7185 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit:GIBSON GULCH UN Unit Number:COC052447X
Formation And Spacing:Code: ILES , Formation: ILES , Order: , Unit Acreage: , Drill Unit:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: , Unit Acreage: , Drill Unit:
Wellbore Completed
Completion Date:10/28/2007
Spud Date:10/16/2007Spud Date Is:ACTUAL
Measured TD:7176 ft.Measured PB depth:7120 ft.
True Vertical TD:7049 ft.True Vertical PB depth:6993 ft.
Top PZ Location:Sec:31 Twp: 6S 91WFootage: 2631 FNL  682 FWL
Bottom Hole Location:Sec:31 Twp: 6S 91WFootage: 2631 FNL  682 FWL
Log Types:HALLIBURTON HRI/SD/DSN/;SCHLUMBERGER CBL/GR/CCL, MUD, TEMP

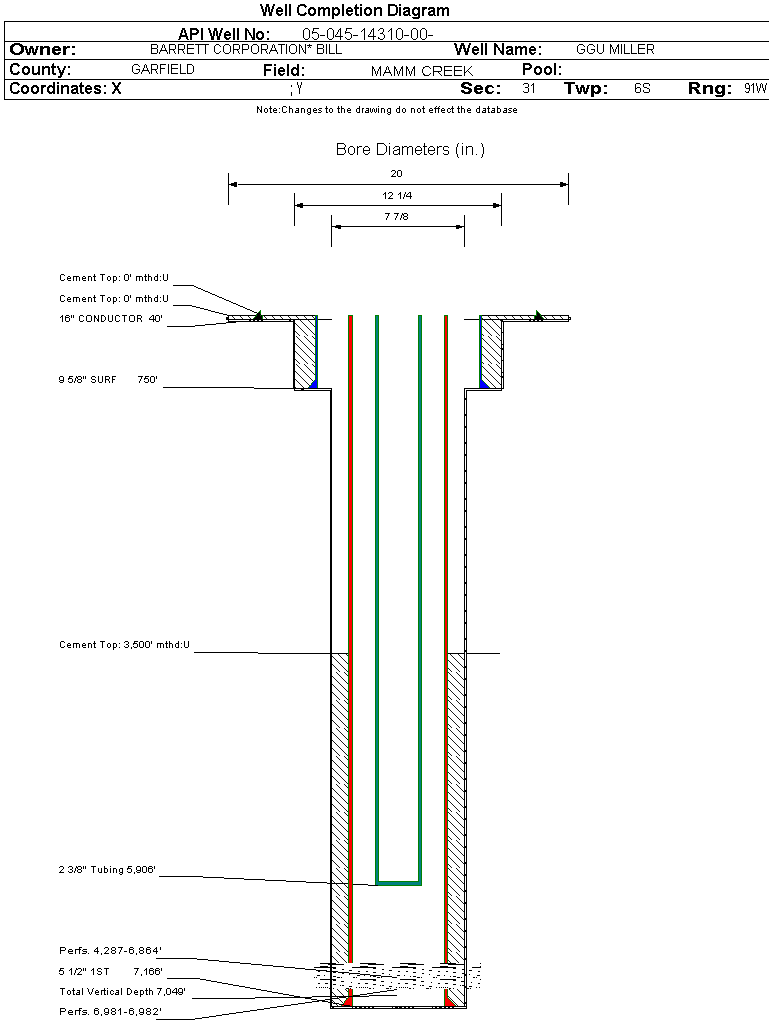

Casing:String Type: CONDUCTOR, Hole Size: 20 in., Size: 16 in., Top: , Depth: 40 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: , Top: 0 ft., Bottom: 40 ft., Determination Method:
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 750 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 230, Top: 0 ft., Bottom: 750 ft., Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 7166 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 900, Top: 3500 ft., Bottom: 7166 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
WILLIAMS FORK3336 ft.NN
ROLLINS6903 ft.NN

Formation RLNS                     Formation Classification:  GW                     Status:  PR - 3/15/2008                 Interval Top: 6981 ft.    Interval Bottom: 6982 ft.

 Completed Information for Formation ROLLINS
1st Production Date:2/19/2008Choke Size:0.375 in.
Formation Name:ROLLINSCommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:12/27/2008
Treatment Summary:4,653 BBL SLICKWATER; 91,838 LBS 20-40 SAND; 10,542 LBS SLC 20-40.
Tubing Size:2.375 in.Tubing Setting Depth:5906 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:3/15/2008Test Method:FLOWING
Hours Tested:24Gas Type:WET
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 30
BBLS_OIL 4
BTU_GAS 1170
CALC_BBLS_H2O 30
CALC_BBLS_OIL 4
CALC_GOR 26072
CALC_MCF_GAS 103
CASING_PRESS 1400
MCF_GAS 103
TUBING_PRESS 1300
Perforation Data:
Interval Top:6981 ft.# Of Holes:2
Interval Bottom:6982 ft.Hole Size:0.34 in.

Formation WMFK                     Formation Classification:  GW                     Status:  PR - 3/15/2008                 Interval Top: 4287 ft.    Interval Bottom: 6864 ft.

 Completed Information for Formation WILLIAMS FORK
1st Production Date:2/19/2008Choke Size:0.375 in.
Formation Name:WILLIAMS FORKCommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:12/27/2008
Treatment Summary:88,400 BBL SLICKWATER; 1,744,913 LBS 20-40 SAND; 200,294 LBS SLC 20-40.
Tubing Size:2.375 in.Tubing Setting Depth:5906 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:3/15/2008Test Method:FLOWING
Hours Tested:24Gas Type:WET
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 572
BBLS_OIL 75
BTU_GAS 1170
CALC_BBLS_H2O 572
CALC_BBLS_OIL 75
CALC_GOR 26075
CALC_MCF_GAS 1963
CASING_PRESS 1400
MCF_GAS 1963
TUBING_PRESS 1300
Perforation Data:
Interval Top:4287 ft.# Of Holes:202
Interval Bottom:6864 ft.Hole Size:0.34 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
November 2024 - October 2025i
Total Oil Produced (Barrels)72
Total Gas Produced (MCF)13345
GOR185347
GOR DeterminationMCFE
Average BOE per Day6.508
Average MCFE per Day37.743

 Federal Financial Assurance  i

 Tribal Well  i No
