Wellbore #00 Wellbore Classification: GW Status: PR - 7/24/2013 Measured TD: 8827 ft. Vertical TD: 8790 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 7/24/2013 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 2007593 | Expiration Date: | 6/19/2008 | | Proposed Top PZ Location: | Sec: Twp: | Footage: 354 FSL 2453 FWL | | Bottom Hole Location: | Sec:9 Twp: 6S 97W | Footage: 354 FSL 2453 FWL | | Proposed Depth/Form: | 9068 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 510-15 , Unit Acreage: , Drill Unit: |
| | |

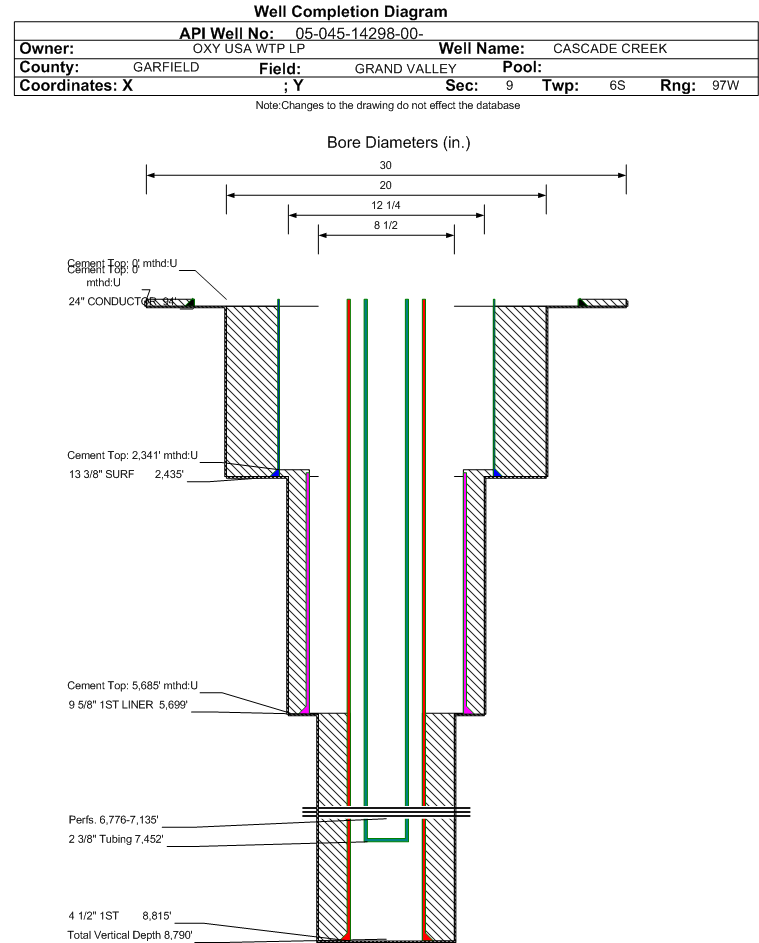

| Wellbore Completed | | Completion Date: | 9/4/2007 | | Spud Date: | 7/27/2007 | Spud Date Is: | ACTUAL | | Measured TD: | 8827 ft. | Measured PB depth: | 8771 ft. | | True Vertical TD: | 8790 ft. | True Vertical PB depth: | 8734 ft. | | Top PZ Location: | Sec:9 Twp: 6S 97W | Footage: 392 FSL 2413 FWL | | Bottom Hole Location: | Sec:9 Twp: 6S 97W | Footage: 392 FSL 2413 FWL | | Log Types: | ACOUSTIC CBL, SPECTRAL DENSITY, DUAL SPACED NEUTRON, COMPENSATED SPECTRAL GAMMA, TEMPERATURE, RMTE, BOREHOLE VOLUME PLOT | | Casing: | String Type: CONDUCTOR, Hole Size: 30 in., Size: 24 in., Top: 0 ft., Depth: 94 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: , Top: 0 ft., Bottom: 94 ft., Determination Method: CALC | | Casing: | String Type: SURF, Hole Size: 20 in., Size: 13.375 in., Top: 0 ft., Depth: 2435 ft., Weight: 60 , Citings Type: ACTUAL | | Cement: | Sacks: 2246, Top: 0 ft., Bottom: 2435 ft., Determination Method: CALC | | Casing: | String Type: 1ST, Hole Size: 8.5 in., Size: 4.5 in., Top: 0 ft., Depth: 8815 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 620, Top: 5685 ft., Bottom: 8815 ft., Determination Method: CBL | | Casing: | String Type: 1ST LINER, Hole Size: 12.25 in., Size: 9.625 in., Top: 2383 ft., Depth: 5699 ft., Weight: 36 , Citings Type: ACTUAL | | Cement: | Sacks: 739, Top: 2341 ft., Bottom: 5699 ft., Determination Method: CALC | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH G | 4232 ft. | 4470 ft. | N | N | | FORT UNION | 4470 ft. | 5734 ft. | N | N | | MESAVERDE | 5734 ft. | 5917 ft. | N | N | | WILLIAMS FORK | 5917 ft. | 8077 ft. | N | N | | CAMEO | 8077 ft. | 8555 ft. | N | N | | ROLLINS | 8555 ft. | | N | N |
Formation WMFK Formation Classification: GW Status: PR - 7/24/2013 Interval Top: 6776 ft. Interval Bottom: 7135 ft.| Completed Information for Formation WILLIAMS FORK | | 1st Production Date: | N/A | Choke Size: | | | Formation Name: | WILLIAMS FORK | Commingled: | | | Production Method: | | | Open Hole Completion: | |
| | Formation Treatment | | Treatment Date: | 12/13/2011 | | Treatment Summary: | 2 stages of slickwater frac with 7,757 bbls of frac fluid and 264,883 lbs of white sand proppant | | Formation Treatment | | Treatment Date: | 10/24/2009 | | Treatment Summary: | 3 STAGES OF SLICKWATER FRAC WITH 13,648 BBLS OF 2% KCI AND 405,268 LBS OF 30/50 OTTOWA WHITE SAND. |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 7452 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | N/A | Test Method: | | | Hours Tested: | | Gas Type: | | | Gas Disposal: | | |
| Test Type | Measure |
|---|
| BBLS_H2O | 41 | | BTU_GAS | 1054 | | CALC_BBLS_H2O | 41 | | CALC_GOR | 0 | | CALC_MCF_GAS | 65 | | CASING_PRESS | 520 | | MCF_GAS | 65 | | TUBING_PRESS | 261 |
| | Perforation Data: | | Interval Top: | 6776 ft. | # Of Holes: | 60 | | Interval Bottom: | 7135 ft. | Hole Size: | 0.35 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 4 |
| Total Gas Produced (MCF) | 7909 |
| GOR | 1977250 |
| GOR Determination | MCFE |
| Average BOE per Day | 3.751 |
| Average MCFE per Day | 21.751 |
| Federal Financial Assurance | i | |
|
|
