COGIS - WELL SCOUT CARD

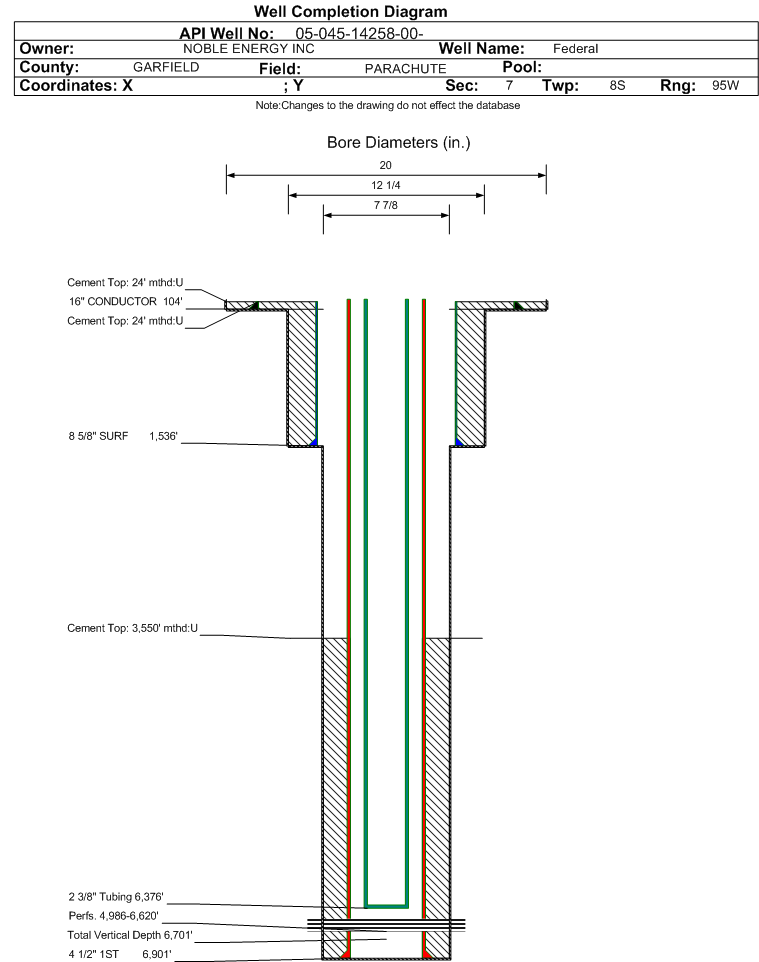

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-14258		Well Classification: GW Status: SI - 2/1/2025
Well Name/No:FEDERAL #7-34B
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:QB ENERGY OPERATING LLC - 10844
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:COC23443
Facility Status:SIStatus Date2/1/2025
FacilityID:291023LocationID:334366
County:GARFIELD #045Location:NESW 7 8S95W 6
Field:PARACHUTE - #67350Elevation:6503 ft.
Planned Location:1914FSL  3019 FWLLat/Long: 39.375871 / -108.037671Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 39.375871 / -108.037670Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: SI - 2/1/2025             Measured TD: 6910 ft.    Vertical TD: 6701 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        SI - 2/1/2025
Wellbore PermitDIRECTIONAL
Permit #: Expiration Date:6/1/2012
Proposed Top PZ Location:Sec:7 Twp: 8S 95W Footage: 819 FSL  2188 FEL
Bottom Hole Location:Sec:7 Twp: 8S 95W Footage: 819 FSL  2188 FEL
Proposed Depth/Form:7655 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEDERALSurface Owner:FEDERAL
Unit: Unit Number:
Formation And Spacing:Code: ILES , Formation: ILES , Order: 139-51 , Unit Acreage: 41, Drill Unit: SWSE
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 139-45 , Unit Acreage: 41, Drill Unit: SWSE
Casing:String Type: CONDUCTOR, Hole Size: 20 in., Size: 16 in., Top: , Depth: 60 ft., Weight: Line Pipe, Citings Type: PLANNED
Cement:Sacks: 5, Top: 0 ft., Bottom: 60 ft.
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: , Depth: 1500 ft., Weight: 24 , Citings Type: PLANNED
Cement:Sacks: 500, Top: 0 ft., Bottom: 1500 ft.
Casing:String Type: 1ST, Hole Size: 12.25 in., Size: 8.625 in., Top: , Depth: 1500 ft., Weight: 24# , Citings Type: PLANNED
Cement:Sacks: 425, Top: 0 ft., Bottom: 1500 ft.
Casing:String Type: 2ND, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 7645 ft., Weight: 11.6# , Citings Type: PLANNED
Cement:Sacks: 550, Top: , Bottom: 7655 ft.
Wellbore Completed
Completion Date:7/15/2010
Spud Date:7/10/2010Spud Date Is:ACTUAL
Measured TD:6910 ft.Measured PB depth:6820 ft.
True Vertical TD:6701 ft.True Vertical PB depth:6611 ft.
Top PZ Location:Sec:7 Twp: 8S 95WFootage: 826 FSL  2191 FEL
Bottom Hole Location:Sec:7 Twp: 8S 95WFootage: 811 FSL  2234 FEL
Log Types:CBL/RMTE
Casing:String Type: CONDUCTOR, Hole Size: 20 in., Size: 16 in., Top: 24 ft., Depth: 104 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 60, Top: 24 ft., Bottom: 104 ft., Determination Method: CALC
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 24 ft., Depth: 1536 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 317, Top: 24 ft., Bottom: 1536 ft., Determination Method: CALC
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 6901 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 684, Top: 3550 ft., Bottom: 6901 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
WILLIAMS FORK3814 ft.
CAMEO6371 ft.
ROLLINS6705 ft.

Formation WFCM                     Formation Classification:  GW                     Status:  SI - 11/1/2024                 Interval Top: 4986 ft.    Interval Bottom: 6620 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:10/21/2010Choke Size:
Formation Name:WILLIAMS FORK - CAMEOCommingled:
Production Method:
Open Hole Completion:
Formation Treatment
Treatment Date:10/12/2010
Treatment Summary:FRAC 4,500 GAL OF 7.5% HCL; 432,667 GAL OF 2% KCL; 5,576 SKS OF OTTAWA PROPPANT; 1,400 SKS OF SB EXCEL
Tubing Size:2.375 in.Tubing Setting Depth:6376 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:10/23/2010Test Method:FLOWING
Hours Tested:24Gas Type:DRY
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 372
BTU_GAS 815
CALC_BBLS_H2O 372
CALC_MCF_GAS 937
CASING_PRESS 1150
MCF_GAS 937
TUBING_PRESS 820
Perforation Data:
Interval Top:4986 ft.# Of Holes:144
Interval Bottom:6620 ft.Hole Size:0.34 in.
Primary Well Designation:
Low Producing      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingYProduction Period
06/2024 - 05/2025

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
June 2024 - May 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)6
GOR
GOR DeterminationMCFE
Average BOE per Day0.003
Average MCFE per Day0.016

 Federal Financial Assurance  i Y

 Tribal Well  i No
