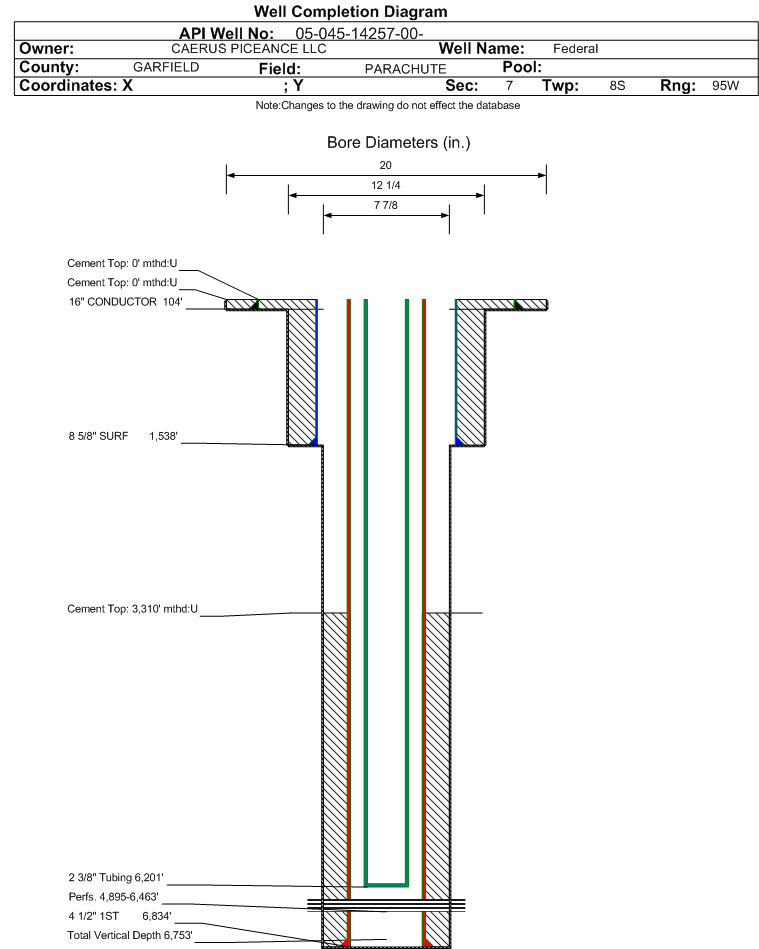

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITGIS Map GISOld GIS Map Old GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-14257		Well Classification: GW Status: SI - 4/1/2025
Well Name/No:Federal #7-33D
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:QB ENERGY OPERATING LLC - 10844
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:SIStatus Date4/1/2025
FacilityID:291018LocationID:334366
County:GARFIELD #045Location:NESW 7 8S95W 6
Field:PARACHUTE - #67350Elevation:6503 ft.
Basin:PICEANCE BASIN
Planned Location:1944FSL  3018 FWLLat/Long: 39.375954 / -108.037673Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 39.375953 / -108.037673Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: SI - 4/1/2025             Measured TD: 6843 ft.    Vertical TD: 6753 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        SI - 4/1/2025
Wellbore PermitDIRECTIONAL
Permit #: Expiration Date:6/1/2012
Proposed Top PZ Location:Sec:7 Twp: 8S 95W Footage: 1484 FSL  2189 FEL
Bottom Hole Location:Sec:7 Twp: 8S 95W Footage: 1424 FSL  2204 FEL
Proposed Depth/Form:7211 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEDERALSurface Owner:FEDERAL
Unit: Unit Number:
Formation And Spacing:Code: ILES , Formation: ILES , Order: 139-51 , Unit Acreage: 41, Drill Unit: NWSE
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 139-45 , Unit Acreage: 41, Drill Unit: NWSE
Casing:String Type: CONDUCTOR, Hole Size: 20 in., Size: 16 in., Top: , Depth: 60 ft., Weight: Line Pipe, Citings Type: PLANNED
Cement:Sacks: 5, Top: 0 ft., Bottom: 60 ft.
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: , Depth: 1500 ft., Weight: 24 , Citings Type: PLANNED
Cement:Sacks: 500, Top: 0 ft., Bottom: 1500 ft.
Casing:String Type: 1ST, Hole Size: 12.25 in., Size: 8.625 in., Top: , Depth: 1500 ft., Weight: 24# , Citings Type: PLANNED
Cement:Sacks: 425, Top: 0 ft., Bottom: 1500 ft.
Casing:String Type: 2ND, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 7201 ft., Weight: 11.6 , Citings Type: PLANNED
Cement:Sacks: 550, Top: , Bottom: 7211 ft.
Wellbore Completed
Completion Date:7/29/2010
Spud Date:7/24/2010Spud Date Is:ACTUAL
Measured TD:6843 ft.Measured PB depth:6766 ft.
True Vertical TD:6753 ft.True Vertical PB depth:6676 ft.
Top PZ Location:Sec:7 Twp: 8S 95WFootage: 1484 FSL  2189 FEL
Bottom Hole Location:Sec:7 Twp: 8S 95WFootage: 1424 FSL  2204 FEL
Log Types:CBL/RMTE
Casing:String Type: CONDUCTOR, Hole Size: 20 in., Size: 16 in., Top: 0 ft., Depth: 104 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 15, Top: 0 ft., Bottom: 104 ft., Determination Method: CALC
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 1538 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 335, Top: 0 ft., Bottom: 1538 ft., Determination Method: CALC
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 6834 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 722, Top: 3310 ft., Bottom: 6834 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
WILLIAMS FORK3724 ft.
CAMEO6282 ft.
ROLLINS6616 ft.

Formation WFCM                     Formation Classification:  GW                     Status:  SI - 4/1/2025                  Interval Top: 4895 ft.    Interval Bottom: 6463 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:11/1/2010Choke Size:
Formation Name:WILLIAMS FORK - CAMEOCommingled:
Production Method:
Open Hole Completion:
Formation Treatment
Treatment Date:10/23/2010
Treatment Summary:FRAC 4500 GAL OF 7.5% HCL; 465,428 GAL OF 2% KCL; 4963 SKS OF OTTAWA PROPPANT; 1261 SKS OF SB EXCEL
Tubing Size:2.375 in.Tubing Setting Depth:6201 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:11/5/2010Test Method:FLOWING
Hours Tested:24Gas Type:DRY
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 140
BTU_GAS 811
CALC_BBLS_H2O 140
CALC_MCF_GAS 1234
CASING_PRESS 1290
MCF_GAS 1234
TUBING_PRESS 900
Perforation Data:
Interval Top:4895 ft.# Of Holes:144
Interval Bottom:6463 ft.Hole Size:0.34 in.
Primary Well Designation:
Low Producing      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingYProduction Period
12/2024 - 11/2025

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
December 2024 - November 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)5
GOR
GOR DeterminationMCFE
Average BOE per Day0.003
Average MCFE per Day0.013

 Federal Financial Assurance  i Y

 Tribal Well  i No
