COGIS - WELL SCOUT CARD

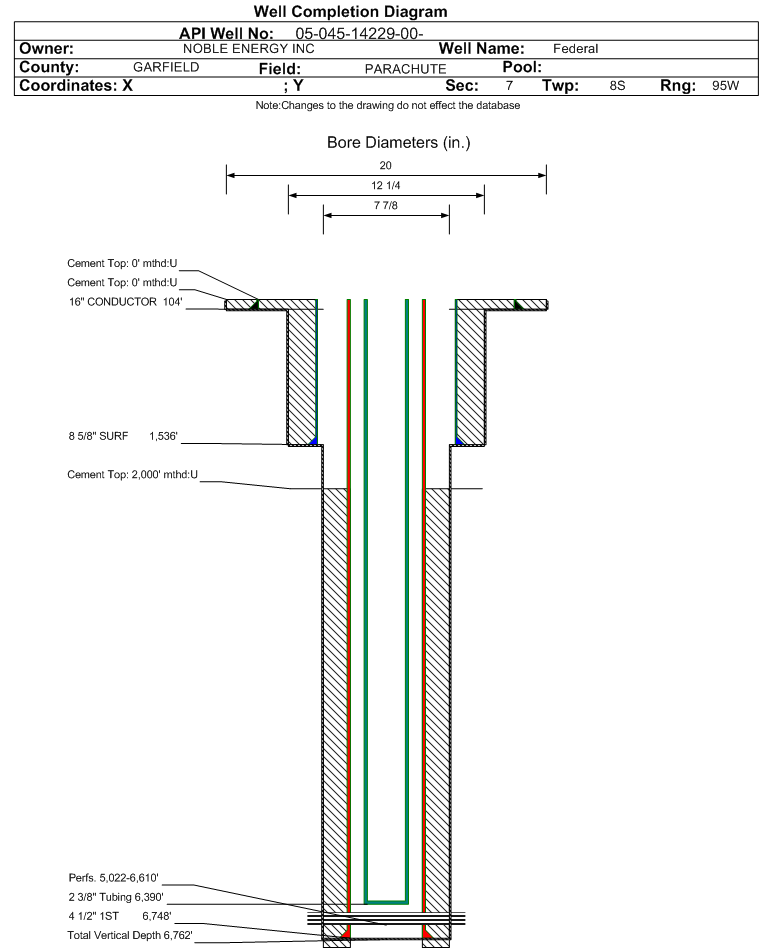

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-14229		Well Classification: GW Status: PR - 3/9/2011
Well Name/No:FEDERAL #7-33A
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:QB ENERGY OPERATING LLC - 10844
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:COC23443
Facility Status:PRStatus Date3/9/2011
FacilityID:290950LocationID:334366
County:GARFIELD #045Location:NESW 7 8S95W 6
Field:PARACHUTE - #67350Elevation:6503 ft.
Planned Location:1989FSL  3009 FWLLat/Long: 39.376077 / -108.037711Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 39.376077 / -108.037712Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 3/9/2011             Measured TD: 6857 ft.    Vertical TD: 6762 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 3/9/2011
Wellbore PermitDIRECTIONAL
Permit #: Expiration Date:6/1/2012
Proposed Top PZ Location:Sec:7 Twp: 8S 95W Footage: 2469 FSL  2197 FEL
Bottom Hole Location:Sec:7 Twp: 8S 95W Footage: 2469 FSL  2197 FEL
Proposed Depth/Form:7328 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEDERALSurface Owner:FEDERAL
Unit: Unit Number:
Formation And Spacing:Code: ILES , Formation: ILES , Order: 139-51 , Unit Acreage: 41, Drill Unit: NWSE
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 139-45 , Unit Acreage: 41, Drill Unit: NWSE
Casing:String Type: CONDUCTOR, Hole Size: 20 in., Size: 16 in., Top: , Depth: 60 ft., Weight: Line Pipe, Citings Type: PLANNED
Cement:Sacks: 5, Top: 0 ft., Bottom: 60 ft.
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: , Depth: 1500 ft., Weight: 24 , Citings Type: PLANNED
Cement:Sacks: 500, Top: 0 ft., Bottom: 1500 ft.
Casing:String Type: 1ST, Hole Size: 12.25 in., Size: 8.625 in., Top: , Depth: 1500 ft., Weight: 24# , Citings Type: PLANNED
Cement:Sacks: 425, Top: 0 ft., Bottom: 1500 ft.
Casing:String Type: 2ND, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 7318 ft., Weight: 11.6# , Citings Type: PLANNED
Cement:Sacks: 550, Top: , Bottom: 7328 ft.
Wellbore Completed
Completion Date:8/19/2010
Spud Date:7/18/2010Spud Date Is:ACTUAL
Measured TD:6857 ft.Measured PB depth:6766 ft.
True Vertical TD:6762 ft.True Vertical PB depth:6671 ft.
Top PZ Location:Sec:7 Twp: 8S 95WFootage: 2443 FSL  2219 FEL
Bottom Hole Location:Sec:7 Twp: 8S 95WFootage: 2410 FSL  2258 FEL
Log Types:CBL/RMTE
Casing:String Type: CONDUCTOR, Hole Size: 20 in., Size: 16 in., Top: 0 ft., Depth: 104 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 15, Top: 0 ft., Bottom: 104 ft., Determination Method: CALC
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 1536 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 335, Top: 0 ft., Bottom: 1536 ft., Determination Method: CALC
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 6748 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 717, Top: 2000 ft., Bottom: 6848 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
WILLIAMS FORK3762 ft.
CAMEO6329 ft.
ROLLINS6657 ft.

Formation WFCM                     Formation Classification:  GW                     Status:  PR - 9/1/2011                  Interval Top: 5022 ft.    Interval Bottom: 6610 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:11/15/2010Choke Size:
Formation Name:WILLIAMS FORK - CAMEOCommingled:
Production Method:
Open Hole Completion:
Formation Treatment
Treatment Date:11/5/2010
Treatment Summary:FRAC 5250 GAL OF 7.5% HCL; 451420 GAL OF 2% KCL; SKS OF OTTAWA PROPPANT; 275 SKS OF SB EXCEL
Tubing Size:2.375 in.Tubing Setting Depth:6390 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:11/17/2010Test Method:FLOWING
Hours Tested:24Gas Type:DRY
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 480
BTU_GAS 817
CALC_BBLS_H2O 450
CALC_MCF_GAS 758
CASING_PRESS 1140
MCF_GAS 758
TUBING_PRESS 960
Perforation Data:
Interval Top:5022 ft.# Of Holes:166
Interval Bottom:6610 ft.Hole Size:0.34 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
June 2024 - May 2025i
Total Oil Produced (Barrels)1
Total Gas Produced (MCF)11866
GOR11866000
GOR DeterminationMCFE
Average BOE per Day5.613
Average MCFE per Day32.540

 Federal Financial Assurance  i Y

 Tribal Well  i No
