Wellbore #00 Wellbore Classification: GW Status: PR - 3/23/2007 Measured TD: 7271 ft. Vertical TD: 6917 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 3/23/2007 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 20071621 | Expiration Date: | 5/9/2008 | | Proposed Top PZ Location: | Sec: Twp: | Footage: 1580 FSL 960 FEL | | Bottom Hole Location: | Sec:36 Twp: 6S 96W | Footage: 1580 FNL 960 FEL | | Proposed Depth/Form: | 7232 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEDERAL | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 510-9 , Unit Acreage: 126, Drill Unit: SE/4 |
| | |

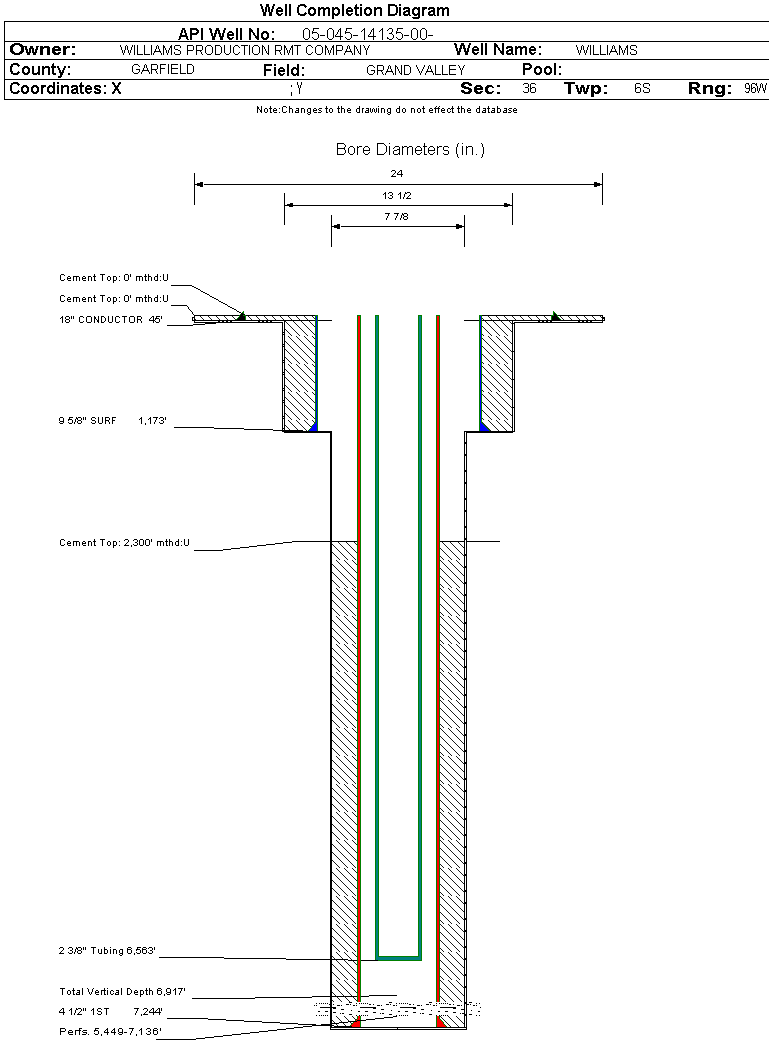

| Wellbore Completed | | Completion Date: | 7/28/2007 | | Spud Date: | 7/16/2007 | Spud Date Is: | ACTUAL | | Measured TD: | 7271 ft. | Measured PB depth: | 7219 ft. | | True Vertical TD: | 6917 ft. | True Vertical PB depth: | | | Top PZ Location: | Sec:36 Twp: 6S 96W | Footage: 1779 FSL 898 FEL | | Bottom Hole Location: | Sec:36 Twp: 6S 96W | Footage: 1779 FSL 898 FEL | | Log Types: | CBL; HIGH RESOLUTIN INDUCTION,SPECTRAL DENSITY,DUAL SPACED NEUTRON, MUD | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 18 in., Top: , Depth: 45 ft., Weight: 48 , Citings Type: ACTUAL | | Cement: | Sacks: 25, Top: 0 ft., Bottom: 45 ft., Determination Method: | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1173 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 325, Top: 0 ft., Bottom: 1173 ft., Determination Method: | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7244 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 861, Top: 2300 ft., Bottom: 7244 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH G | 1901 ft. | | N | N | | WILLIAMS FORK | 4062 ft. | | N | N | | CAMEO | 6645 ft. | | N | N | | ROLLINS | 7200 ft. | | N | N |
Formation WFCM Formation Classification: GW Status: PR - 1/12/2008 Interval Top: 5449 ft. Interval Bottom: 7136 ft.| Completed Information for Formation WILLIAMS FORK - CAMEO | | 1st Production Date: | 9/22/2007 | Choke Size: | 0.750 in. | | Formation Name: | WILLIAMS FORK - CAMEO | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 9/20/2007 | | Treatment Summary: | 3547 GAL 7 1/2% HCL; 1077900 #30/50 SAND; 29901 BBL SLICKWATER (SUMMARY) |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 6563 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 1/12/2008 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BTU_GAS | 1053 | | CALC_BBLS_H2O | 0 | | CALC_BBLS_OIL | 0 | | CASING_PRESS | 1442 | | MCF_GAS | 1228 | | TUBING_PRESS | 1349 |
| | Perforation Data: | | Interval Top: | 5449 ft. | # Of Holes: | 126 | | Interval Bottom: | 7136 ft. | Hole Size: | 0.35 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 30 |
| Total Gas Produced (MCF) | 20138 |
| GOR | 671266 |
| GOR Determination | MCFE |
| Average BOE per Day | 9.598 |
| Average MCFE per Day | 55.675 |
| Federal Financial Assurance | i | Y |
|
|
