Wellbore #00 Wellbore Classification: GW Status: PR - 10/9/2007 Measured TD: 7060 ft. Vertical TD: 6817 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 10/9/2007 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 20072073 | Expiration Date: | 4/26/2008 | | Proposed Top PZ Location: | Sec: Twp: | Footage: 836 FSL 660 FWL | | Bottom Hole Location: | Sec:6 Twp: 7S 91W | Footage: 836 FSL 660 FWL | | Proposed Depth/Form: | 7068 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: ILES , Formation: ILES , Order: 191-10 , Unit Acreage: , Drill Unit: | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 191-8 , Unit Acreage: , Drill Unit: |
| | |

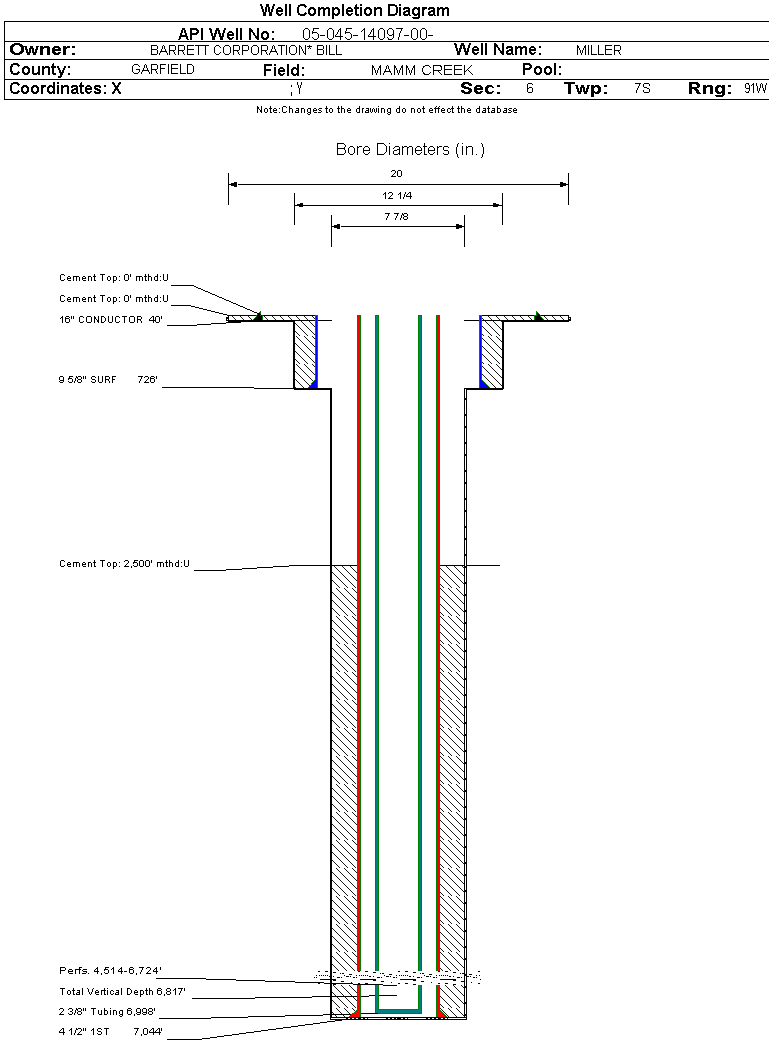

| Wellbore Completed | | Completion Date: | 6/27/2007 | | Spud Date: | 6/16/2007 | Spud Date Is: | ACTUAL | | Measured TD: | 7060 ft. | Measured PB depth: | 6996 ft. | | True Vertical TD: | 6817 ft. | True Vertical PB depth: | 6753 ft. | | Top PZ Location: | Sec:6 Twp: 7S 91W | Footage: 834 FSL 648 FWL | | Bottom Hole Location: | Sec:6 Twp: 7S 91W | Footage: 834 FSL 648 FWL | | Log Types: | HALLIBURTON HRI/DSN/SD; SCHLUMBERGER CBL/GR/CCL; WEATHERFORD TEMP LOG; MUD | | Casing: | String Type: CONDUCTOR, Hole Size: 20 in., Size: 16 in., Top: 0 ft., Depth: 40 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: , Top: 0 ft., Bottom: 40 ft., Determination Method: | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 726 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 230, Top: 0 ft., Bottom: 726 ft., Determination Method: | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7044 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 863, Top: 2500 ft., Bottom: 7044 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WILLIAMS FORK | 3009 ft. | | N | N | | ROLLINS | 6755 ft. | | N | N |
Formation WMFK Formation Classification: GW Status: PR - 3/1/2011 Interval Top: 4514 ft. Interval Bottom: 6724 ft.| Completed Information for Formation WILLIAMS FORK | | 1st Production Date: | 10/2/2007 | Choke Size: | 0.375 in. | | Formation Name: | WILLIAMS FORK | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 9/17/2007 | | Treatment Summary: | 72,351 BBLS OF SLICKWATER; 1,557,797 LBS OF 20-40 SAND; 27,685 LBS. NON API SAND. |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 6998 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 10/9/2007 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | WET | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 0 | | BBLS_OIL | 0 | | BTU_GAS | 1 | | CALC_BBLS_H2O | 0 | | CALC_BBLS_OIL | 0 | | CALC_MCF_GAS | 2471 | | CASING_PRESS | 1790 | | MCF_GAS | 2471 | | TUBING_PRESS | 500 |
| | Perforation Data: | | Interval Top: | 4514 ft. | # Of Holes: | 198 | | Interval Bottom: | 6724 ft. | Hole Size: | 0.34 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 95 |
| Total Gas Produced (MCF) | 13162 |
| GOR | 138547 |
| GOR Determination | MCFE |
| Average BOE per Day | 6.492 |
| Average MCFE per Day | 37.623 |
| Federal Financial Assurance | i | |
|
|
