Wellbore #00 Wellbore Classification: GW Status: PR - 4/1/2012 Measured TD: 9064 ft. Vertical TD: 8640 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 4/1/2012 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 20071428 | Expiration Date: | 4/24/2008 | | Proposed Top PZ Location: | Sec: Twp: | Footage: 176 FNL 401 FWL | | Bottom Hole Location: | Sec:5 Twp: 6S 97W | Footage: 176 FNL 401 FWL | | Proposed Depth/Form: | 9054 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 510-15 , Unit Acreage: , Drill Unit: |
| | |

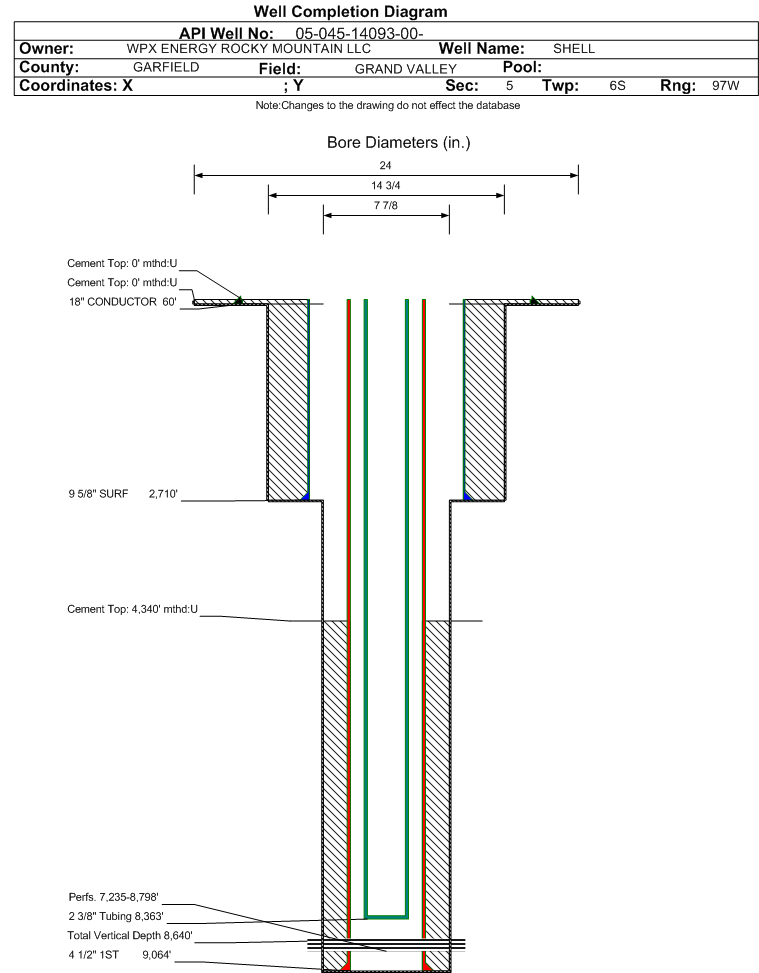

| Wellbore Completed | | Completion Date: | 10/24/2007 | | Spud Date: | 8/11/2007 | Spud Date Is: | ACTUAL | | Measured TD: | 9064 ft. | Measured PB depth: | 9037 ft. | | True Vertical TD: | 8640 ft. | True Vertical PB depth: | 8613 ft. | | Top PZ Location: | Sec:5 Twp: 6S 97W | Footage: 175 FNL 400 FEL | | Bottom Hole Location: | Sec:5 Twp: 6S 97W | Footage: 175 FNL 400 FEL | | Log Types: | CBL, MUD, RMTE | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 18 in., Top: , Depth: 60 ft., Weight: 48 , Citings Type: ACTUAL | | Cement: | Sacks: 100, Top: 0 ft., Bottom: 60 ft., Determination Method: CALC | | Casing: | String Type: SURF, Hole Size: 14.75 in., Size: 9.625 in., Top: 0 ft., Depth: 2710 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 1407, Top: 0 ft., Bottom: 2710 ft., Determination Method: CALC | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 9064 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 870, Top: 4340 ft., Bottom: 9064 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | MESAVERDE | 6026 ft. | | N | N | | CAMEO | 8432 ft. | | N | N | | ROLLINS | 8837 ft. | | N | N |
Formation WFCM Formation Classification: GW Status: PR - 4/1/2012 Interval Top: 7235 ft. Interval Bottom: 8798 ft.| Completed Information for Formation WILLIAMS FORK - CAMEO | | 1st Production Date: | 9/17/2007 | Choke Size: | 0.313 in. | | Formation Name: | WILLIAMS FORK - CAMEO | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 9/17/2007 | | Treatment Summary: | 294,000 GALS 10% HCI ACID; 703,000# 30/50 SAND; 18,335 BBLS SLICKWATER; 229 TONS CO2 |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 8363 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 10/1/2007 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 0 | | BTU_GAS | 1053 | | CALC_BBLS_OIL | 0 | | CALC_GOR | 0 | | CASING_PRESS | 1650 | | MCF_GAS | 1907 | | TUBING_PRESS | 1350 |
| | Perforation Data: | | Interval Top: | 7235 ft. | # Of Holes: | 154 | | Interval Bottom: | 8798 ft. | Hole Size: | 0.42 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 82 |
| Total Gas Produced (MCF) | 39122 |
| GOR | 477097 |
| GOR Determination | MCFE |
| Average BOE per Day | 18.722 |
| Average MCFE per Day | 108.588 |
| Federal Financial Assurance | i | |
|
|
