Wellbore #00 Wellbore Classification: OTH Status: IJ - 8/1/2025 Measured TD: 8257 ft. Vertical TD: 8245 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: OTH IJ - 8/1/2025 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 20071338 | Expiration Date: | 4/16/2008 | | Proposed Top PZ Location: | Sec:28 Twp: 6S 92W | Footage: 1459 FSL 663 FWL | | Bottom Hole Location: | Sec:28 Twp: 6S 92W | Footage: 1459 FSL 663 FWL | | Proposed Depth/Form: | 8235 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEDERAL | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: ILES , Formation: ILES , Order: , Unit Acreage: , Drill Unit: |
| | |

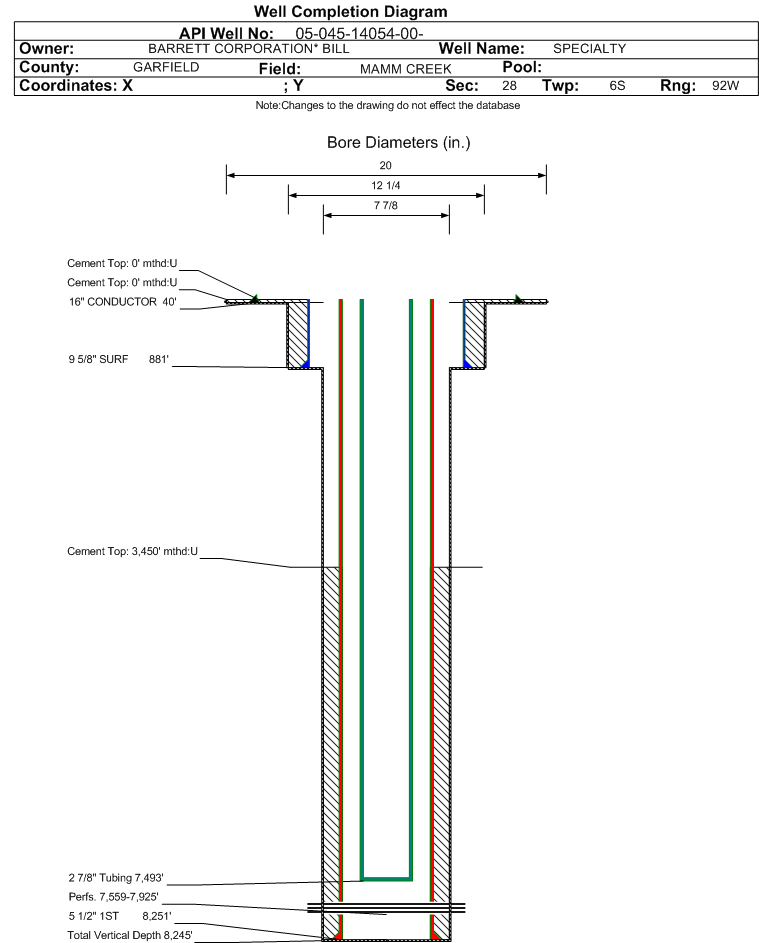

| Wellbore Completed | | Completion Date: | 6/1/2007 | | Spud Date: | 5/19/2007 | Spud Date Is: | ACTUAL | | Measured TD: | 8257 ft. | Measured PB depth: | 8205 ft. | | True Vertical TD: | 8245 ft. | True Vertical PB depth: | 8193 ft. | | Top PZ Location: | Sec:28 Twp: 6S 92W | Footage: 1459 FSL 663 FWL | | Bottom Hole Location: | Sec:28 Twp: 6S 92W | Footage: 1459 FSL 663 FWL | | Log Types: | BAKER HUGHES PULSED NEUTRON FORMATION EVALUATION; MESA WIRELINE CCL, TEMP. LOG | | Casing: | String Type: CONDUCTOR, Hole Size: 20 in., Size: 16 in., Top: 0 ft., Depth: 40 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: , Top: 0 ft., Bottom: 40 ft., Determination Method: | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 881 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 290, Top: 0 ft., Bottom: 883 ft., Determination Method: CALC | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 8251 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 1935, Top: 3450 ft., Bottom: 8251 ft., Determination Method: CBL | | Additional Cement: | String Type: 1ST , Top: 7234 ft., Depth: 7235 ft., Bottom: 7235 ft., Sacks: 55, Method: SQUEEZE | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WILLIAMS FORK | 3277 ft. | | N | N | | ROLLINS | 6980 ft. | | N | N |
Formation CZ-CR Formation Classification: OTH Status: IJ - 8/1/2025 Interval Top: 7559 ft. Interval Bottom: 7925 ft.| Completed Information for Formation COZZETTE-CORCORAN | | 1st Production Date: | N/A | Choke Size: | | | Formation Name: | COZZETTE-CORCORAN | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 8/16/2007 | | Treatment Summary: | 14,315 BBLS OF SLICKWATER, 541,284 LBS OF 20-40 SAND. |
| | Tubing Size: | 2.875 in. | Tubing Setting Depth: | 7493 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation CZ-CR. |
| | Perforation Data: | | Interval Top: | 7559 ft. | # Of Holes: | 58 | | Interval Bottom: | 7925 ft. | Hole Size: | 0.34 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 0 |
| Total Gas Produced (MCF) | 0 |
| GOR | |
| GOR Determination | |
| Average BOE per Day | 0.000 |
| Average MCFE per Day | 0.000 |
| Federal Financial Assurance | i | Y |
|
|
