COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-14052		Well Classification: GW Status: PR - 4/17/2012
Well Name/No:GUCCINI #41C-20-692
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date4/17/2012
FacilityID:290200LocationID:335083
County:GARFIELD #045Location:NWNE 20 6S92W 6
Field:MAMM CREEK - #52500Elevation:5563 ft.
Basin:PICEANCE BASIN
Planned Location:856FNL  1789 FELLat/Long: 39.517130 / -107.687460Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 39.517130 / -107.687450Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 4/17/2012             Measured TD: 8550 ft.    Vertical TD: 8397 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 4/17/2012
Wellbore PermitDIRECTIONAL
Permit #:20071881 Expiration Date:4/15/2008
Proposed Top PZ Location:Sec: Twp: Footage: 588 FNL  620 FEL
Bottom Hole Location:Sec:20 Twp: 6S 91W Footage: 588 FNL  620 FEL
Proposed Depth/Form:8525 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: ILES , Formation: ILES , Order: 191-10 , Unit Acreage: 640, Drill Unit: ALL
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 191-8 , Unit Acreage: 640, Drill Unit: ALL
Wellbore Completed
Completion Date:5/14/2007
Spud Date:5/4/2007Spud Date Is:ACTUAL
Measured TD:8550 ft.Measured PB depth:8507 ft.
True Vertical TD:8397 ft.True Vertical PB depth:8354 ft.
Top PZ Location:Sec:20 Twp: 6S 92WFootage: 628 FNL  611 FEL
Bottom Hole Location:Sec:20 Twp: 6S 92WFootage: 628 FNL  611 FEL
Log Types:HALLIBURTON HRI/DSN/SD; SCHLUMBERGER CBL/GR/CCL/TEMP; WEATHERFORD TEMP LOG

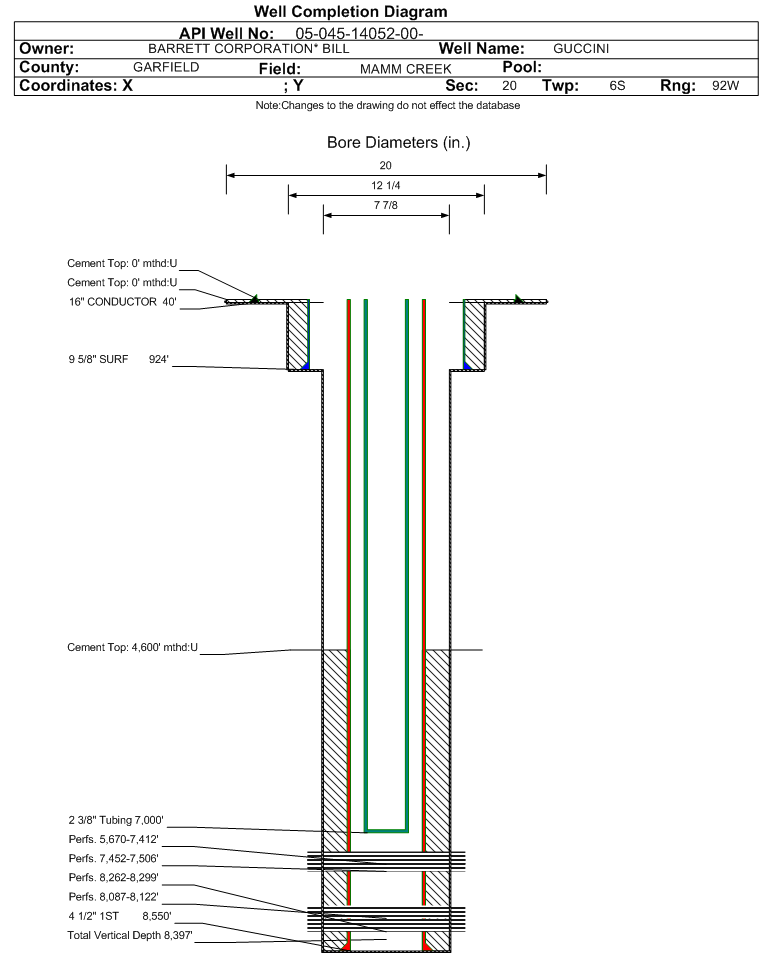

Casing:String Type: CONDUCTOR, Hole Size: 20 in., Size: 16 in., Top: , Depth: 40 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: , Top: , Bottom: 40 ft., Determination Method:
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 924 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 260, Top: 0 ft., Bottom: 924 ft., Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 8550 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 650, Top: 4600 ft., Bottom: 8550 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
WILLIAMS FORK3728 ft.NN
ROLLINS7445 ft.NN
COZZETTE8009 ft.NN
CORCORAN8245 ft.NN

Formation CRCRN                   Formation Classification:  OG                   Status:  PR - 9/5/2007                  Interval Top: 8262 ft.    Interval Bottom: 8299 ft.

 Completed Information for Formation CORCORAN
1st Production Date:8/9/2007Choke Size:
Formation Name:CORCORANCommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:7/17/2007
Treatment Summary:Treated with Williams Fork. See Williams Fork Treatment Summary.
Tubing Size:2.375 in.Tubing Setting Depth:7000 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:9/5/2007Test Method:Flowing
Hours Tested:24Gas Type:WET
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 18
BBLS_OIL 38
BTU_GAS 1023
CALC_BBLS_H2O 18
CALC_BBLS_OIL 38
CALC_GOR 3711
CALC_MCF_GAS 141
CASING_PRESS 2100
GRAVITY_OIL 52
MCF_GAS 141
TUBING_PRESS 1350
Perforation Data:
Interval Top:8262 ft.# Of Holes:12
Interval Bottom:8299 ft.Hole Size:0.34 in.

Formation COZZ                     Formation Classification:  OG                     Status:  PR - 9/5/2007                  Interval Top: 8087 ft.    Interval Bottom: 8122 ft.

 Completed Information for Formation COZZETTE
1st Production Date:8/9/2007Choke Size:
Formation Name:COZZETTECommingled:No
Production Method:
Open Hole Completion:Yes
Formation Treatment
Treatment Date:7/17/2007
Treatment Summary:Treated with Williams Fork. See Williams Fork Treatment Summary.
Tubing Size:2.375 in.Tubing Setting Depth:7000 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:9/5/2007Test Method:Flowing
Hours Tested:24Gas Type:WET
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 18
BBLS_OIL 38
BTU_GAS 1023
CALC_BBLS_H2O 18
CALC_BBLS_OIL 39
CALC_GOR 3711
CALC_MCF_GAS 141
CASING_PRESS 2100
GRAVITY_OIL 52
MCF_GAS 141
TUBING_PRESS 1350
Perforation Data:
Interval Top:8087 ft.# Of Holes:16
Interval Bottom:8122 ft.Hole Size:0.34 in.

Formation RLNS                     Formation Classification:  OG                     Status:  PR - 4/17/2012                 Interval Top: 7452 ft.    Interval Bottom: 7506 ft.

 Completed Information for Formation ROLLINS
1st Production Date:8/9/2007Choke Size:
Formation Name:ROLLINSCommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:7/24/2007
Treatment Summary:Treated with Williams Fork. See Williams Fork Treatment Summary.
Formation Treatment
Treatment Date:7/21/2007
Treatment Summary:11,151 BBLS OF SLICKWATER; 236,622 LBS OF 20-40 SAND; 4,287 LBS NON API SAND
Tubing Size:2.375 in.Tubing Setting Depth:7000 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:9/5/2007Test Method:Flowing
Hours Tested:24Gas Type:WET
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 18
BBLS_OIL 39
BTU_GAS 1023
CALC_BBLS_H2O 18
CALC_BBLS_OIL 39
CALC_GOR 3615
CALC_MCF_GAS 141
CASING_PRESS 2100
GRAVITY_OIL 52
MCF_GAS 141
TUBING_PRESS 1350
Perforation Data:
Interval Top:7452 ft.# Of Holes:10
Interval Bottom:7506 ft.Hole Size:0.34 in.

Formation WMFK                     Formation Classification:  OG                     Status:  PR - 4/17/2012                 Interval Top: 5670 ft.    Interval Bottom: 7412 ft.

 Completed Information for Formation WILLIAMS FORK
1st Production Date:8/9/2007Choke Size:
Formation Name:WILLIAMS FORKCommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:7/25/2007
Treatment Summary:1,589,947 lbs. of 20 - 40 sand; 29,580 lbs. Non API Sand, 72,392 bbls. of Slickwater
Formation Treatment
Treatment Date:7/21/2007
Treatment Summary:61,241 BBLS OF SLICKWATER; 1,353,325 LBS OF 20-40 SAND; 25,293 LBS NON API SAND
Tubing Size:2.375 in.Tubing Setting Depth:7000 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:9/5/2007Test Method:Flowing
Hours Tested:24Gas Type:WET
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 18
BBLS_OIL 38
BTU_GAS 1023
CALC_BBLS_H2O 18
CALC_BBLS_OIL 38
CALC_GOR 62974
CALC_MCF_GAS 2393
CASING_PRESS 2100
GRAVITY_OIL 52
MCF_GAS 2393
TUBING_PRESS 1350
Perforation Data:
Interval Top:5670 ft.# Of Holes:188
Interval Bottom:7412 ft.Hole Size:0.34 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
November 2024 - October 2025i
Total Oil Produced (Barrels)152
Total Gas Produced (MCF)17832
GOR117315
GOR DeterminationMCFE
Average BOE per Day8.847
Average MCFE per Day51.319

 Federal Financial Assurance  i

 Tribal Well  i No
