Wellbore #00 Wellbore Classification: GW Status: PR - 10/1/2024 Measured TD: 11830 ft. Vertical TD: 11802 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 10/1/2024 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 20071322 | Expiration Date: | 4/12/2008 | | Proposed Top PZ Location: | Sec: Twp: | Footage: 2415 FSL 1919 FEL | | Bottom Hole Location: | Sec:9 Twp: 6S 95W | Footage: 2415 FSL 1919 FEL | | Proposed Depth/Form: | 11890 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 440-40 , Unit Acreage: , Drill Unit: |
| | |

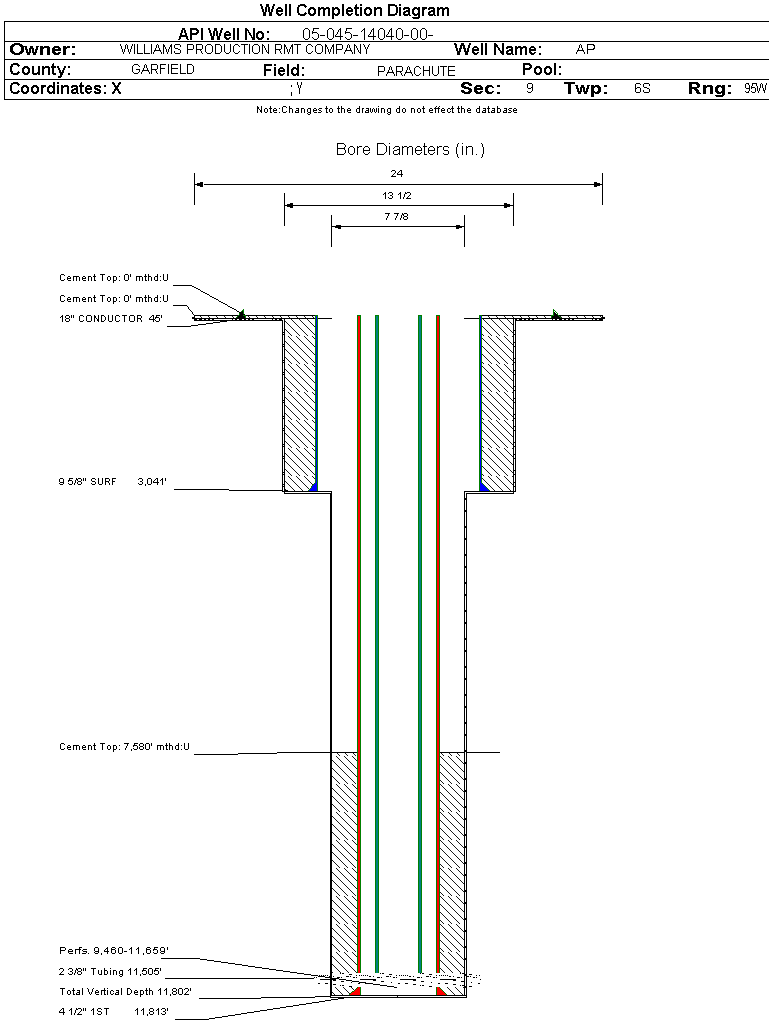

| Wellbore Completed | | Completion Date: | 7/1/2007 | | Spud Date: | 6/14/2007 | Spud Date Is: | ACTUAL | | Measured TD: | 11830 ft. | Measured PB depth: | 11788 ft. | | True Vertical TD: | 11802 ft. | True Vertical PB depth: | | | Top PZ Location: | Sec:9 Twp: 6S 95W | Footage: 2405 FSL 1909 FEL | | Bottom Hole Location: | Sec:9 Twp: 6S 95W | Footage: 2405 FSL 1909 FEL | | Log Types: | CBL; RESEVOIR MONITOR TOOL ELITE, MUD | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 18 in., Top: 0 ft., Depth: 45 ft., Weight: 48 , Citings Type: ACTUAL | | Cement: | Sacks: 25, Top: 0 ft., Bottom: 45 ft., Determination Method: | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 3041 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 890, Top: 0 ft., Bottom: 3041 ft., Determination Method: | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 11813 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 829, Top: 7580 ft., Bottom: 11813 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | GREELEY SAND | 5776 ft. | | N | N | | FORT UNION | 6240 ft. | | N | N | | WILLIAMS FORK | 8100 ft. | | N | N | | CAMEO | 11041 ft. | | N | N | | ROLLINS | 11709 ft. | | N | N |
Formation WFCM Formation Classification: GW Status: PR - 10/1/2024 Interval Top: 9460 ft. Interval Bottom: 11659 ft.| Completed Information for Formation WILLIAMS FORK - CAMEO | | 1st Production Date: | 9/29/2007 | Choke Size: | 0.313 in. | | Formation Name: | WILLIAMS FORK - CAMEO | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 9/28/2007 | | Treatment Summary: | 8225 GALS 10% HCL; 818944# 20/40 SAND; 25182 SLICKWATER |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 11505 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 1/1/2008 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BTU_GAS | 1045 | | CALC_BBLS_H2O | 0 | | CALC_BBLS_OIL | 0 | | CASING_PRESS | 299 | | MCF_GAS | 655 | | TUBING_PRESS | 281 |
| | Perforation Data: | | Interval Top: | 9460 ft. | # Of Holes: | 187 | | Interval Bottom: | 11659 ft. | Hole Size: | 0.42 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 58 |
| Total Gas Produced (MCF) | 17807 |
| GOR | 307017 |
| GOR Determination | MCFE |
| Average BOE per Day | 8.574 |
| Average MCFE per Day | 49.750 |
| Federal Financial Assurance | i | |
|
|
