Wellbore #00 Wellbore Classification: GW Status: PR - 1/23/2008 Measured TD: 8606 ft. Vertical TD: 8360 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 1/23/2008 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 10080521 | Expiration Date: | 3/23/2009 | | Proposed Top PZ Location: | Sec: Twp: | Footage: 927 FNL 1974 FEL | | Bottom Hole Location: | Sec:14 Twp: 6S 94W | Footage: 927 FNL 1974 FEL | | Proposed Depth/Form: | 8508 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 139-38 , Unit Acreage: 320, Drill Unit: E/2 |
| | |

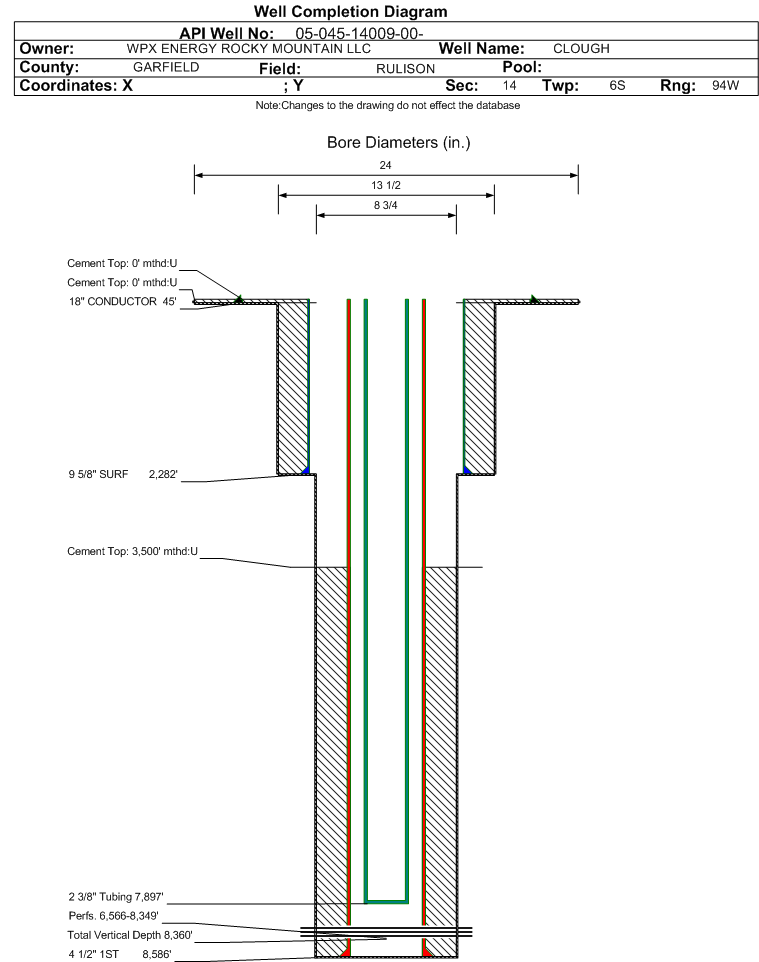

| Wellbore Completed | | Completion Date: | 5/4/2008 | | Spud Date: | 4/22/2008 | Spud Date Is: | ACTUAL | | Measured TD: | 8606 ft. | Measured PB depth: | 8514 ft. | | True Vertical TD: | 8360 ft. | True Vertical PB depth: | 8278 ft. | | Top PZ Location: | Sec:14 Twp: 6S 94W | Footage: 908 FNL 1986 FEL | | Bottom Hole Location: | Sec:14 Twp: 6S 94W | Footage: 908 FNL 1986 FEL | | Log Types: | CBL, RESERVOIR MONITOR TOOL ELITE, MUD | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 18 in., Top: 0 ft., Depth: 45 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 25, Top: 0 ft., Bottom: 45 ft., Determination Method: CALC | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 2282 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 510, Top: 0 ft., Bottom: 2282 ft., Determination Method: CBL | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 4.5 in., Top: 0 ft., Depth: 8586 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 1319, Top: 3500 ft., Bottom: 8586 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH G | 1987 ft. | | N | N | | MESAVERDE | 4703 ft. | | N | N | | CAMEO | 7567 ft. | | N | N | | ROLLINS | 8523 ft. | | N | N |
Formation WFCM Formation Classification: GW Status: PR - 9/24/2008 Interval Top: 6566 ft. Interval Bottom: 8349 ft.| Completed Information for Formation WILLIAMS FORK - CAMEO | | 1st Production Date: | 6/5/2008 | Choke Size: | 0.203 in. | | Formation Name: | WILLIAMS FORK - CAMEO | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 5/31/2008 | | Treatment Summary: | 3004 GALS 7 1/2% HCL;668500 20/40 SAND; 19263 BBLS SLICKWATER |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 7897 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 9/24/2008 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 0 | | BTU_GAS | 1170 | | CASING_PRESS | 760 | | MCF_GAS | 830 | | TUBING_PRESS | 588 |
| | Perforation Data: | | Interval Top: | 6566 ft. | # Of Holes: | 113 | | Interval Bottom: | 8349 ft. | Hole Size: | 0.35 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 51 |
| Total Gas Produced (MCF) | 12654 |
| GOR | 248117 |
| GOR Determination | MCFE |
| Average BOE per Day | 6.112 |
| Average MCFE per Day | 35.457 |
| Federal Financial Assurance | i | |
|
|
