Wellbore #00 Wellbore Classification: GW Status: PR - 3/9/2007 Measured TD: 6854 ft. Vertical TD: 6810 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 3/9/2007 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 20071312 | Expiration Date: | 4/10/2008 | | Proposed Top PZ Location: | Sec: Twp: | Footage: 651 FSL 1345 FWL | | Bottom Hole Location: | Sec:36 Twp: 6S 96W | Footage: 651 FSL 1345 FWL | | Proposed Depth/Form: | 6834 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 510-8 , Unit Acreage: 160, Drill Unit: SW4 |
| | |

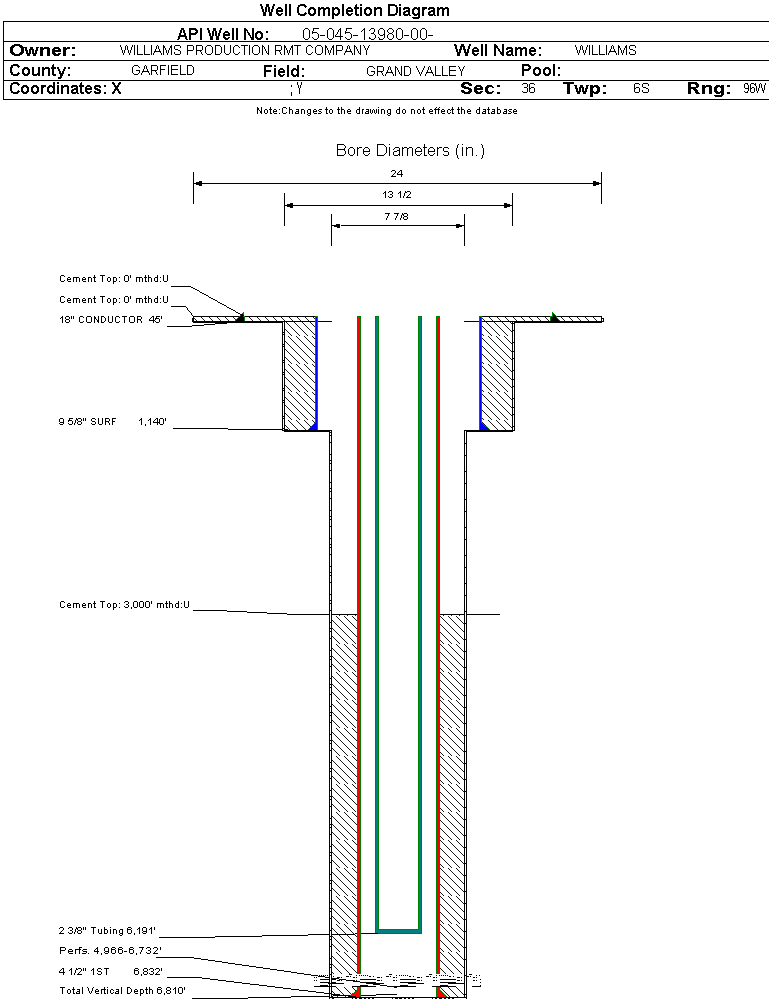

| Wellbore Completed | | Completion Date: | 7/1/2007 | | Spud Date: | 6/12/2007 | Spud Date Is: | ACTUAL | | Measured TD: | 6854 ft. | Measured PB depth: | 6805 ft. | | True Vertical TD: | 6810 ft. | True Vertical PB depth: | | | Top PZ Location: | Sec:36 Twp: 6S 96W | Footage: 679 FSL 1201 FWL | | Bottom Hole Location: | Sec:36 Twp: 6S 96W | Footage: 679 FSL 1201 FWL | | Log Types: | CBL; RESERVOIR MONITOR TOOL ELITE; MUDLOG | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 18 in., Top: 0 ft., Depth: 45 ft., Weight: 48 , Citings Type: ACTUAL | | Cement: | Sacks: 25, Top: 0 ft., Bottom: 45 ft., Determination Method: CALC | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1140 ft., Weight: 32.3 , Citings Type: ACTUAL | | Cement: | Sacks: 325, Top: 0 ft., Bottom: 1140 ft., Determination Method: CALC | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 6832 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 845, Top: 3000 ft., Bottom: 6832 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH G | 1818 ft. | | N | N | | MESAVERDE | 3672 ft. | | N | N | | CAMEO | 6247 ft. | | N | N | | ROLLINS | 6778 ft. | | N | N |
Formation WFCM Formation Classification: GW Status: PR - 9/23/2007 Interval Top: 4966 ft. Interval Bottom: 6732 ft.| Completed Information for Formation WILLIAMS FORK - CAMEO | | 1st Production Date: | 8/15/2007 | Choke Size: | 0.203 in. | | Formation Name: | WILLIAMS FORK - CAMEO | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 8/9/2007 | | Treatment Summary: | 3164 GAL 7 1/2% HCL; 1037400 #30/50 SAND; 40054 BBLS SLICKWATER (SUMMARY) |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 6191 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 9/23/2007 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| CALC_BBLS_H2O | 0 | | CALC_BBLS_OIL | 0 | | CASING_PRESS | 1612 | | MCF_GAS | 566 | | TUBING_PRESS | 1334 |
| | Perforation Data: | | Interval Top: | 4966 ft. | # Of Holes: | 129 | | Interval Bottom: | 6732 ft. | Hole Size: | 0.35 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 12 |
| Total Gas Produced (MCF) | 6456 |
| GOR | 538000 |
| GOR Determination | MCFE |
| Average BOE per Day | 3.081 |
| Average MCFE per Day | 17.878 |
