Wellbore #00 Wellbore Classification: GW Status: PR - 2/15/2008 Measured TD: 9081 ft. Vertical TD: 8754 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 2/15/2008 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 20070959 | Expiration Date: | 4/2/2008 | | Proposed Top PZ Location: | Sec: Twp: | Footage: 801 FNL 1974 FEL | | Bottom Hole Location: | Sec:10 Twp: 6S 94W | Footage: 801 FNL 1974 FEL | | Proposed Depth/Form: | 9224 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEDERAL | Surface Owner: | FEDERAL | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 139-40 , Unit Acreage: 320, Drill Unit: N2 |
| | |

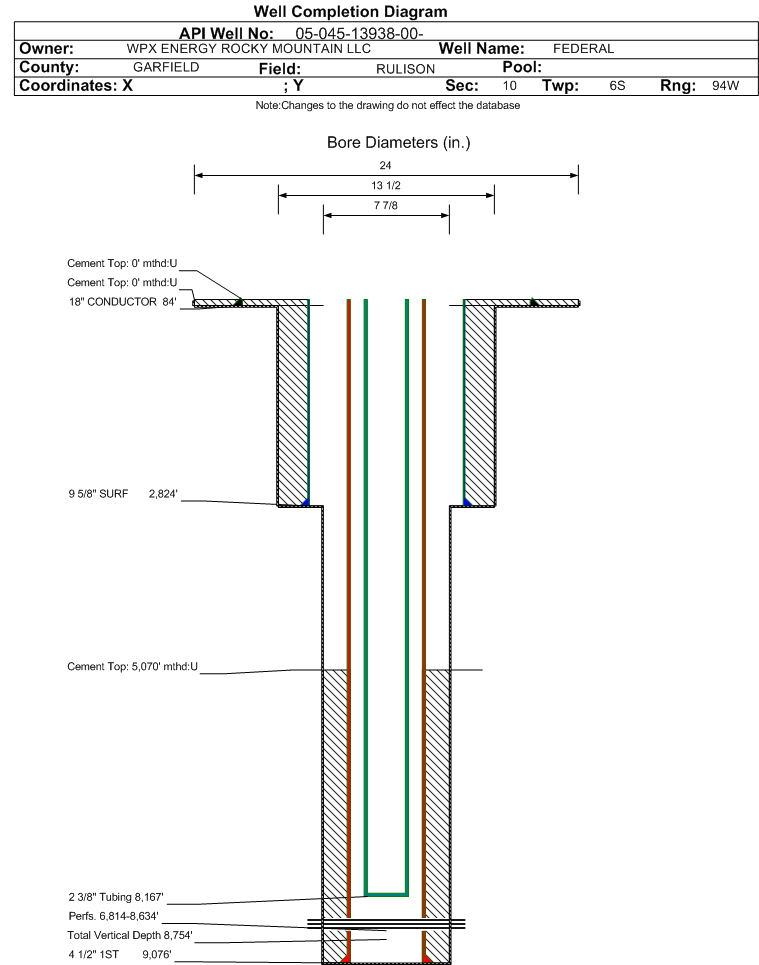

| Wellbore Completed | | Completion Date: | 11/6/2007 | | Spud Date: | 10/16/2007 | Spud Date Is: | ACTUAL | | Measured TD: | 9081 ft. | Measured PB depth: | 9043 ft. | | True Vertical TD: | 8754 ft. | True Vertical PB depth: | 8716 ft. | | Top PZ Location: | Sec:10 Twp: 6S 94W | Footage: 801 FNL 1971 FEL | | Bottom Hole Location: | Sec:10 Twp: 6S 94W | Footage: 801 FNL 1971 FEL | | Log Types: | CBL;RESERVOIR MONITOR TOOL ELITE; MUD LOG | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 18 in., Top: , Depth: 84 ft., Weight: 48 , Citings Type: ACTUAL | | Cement: | Sacks: 25, Top: 0 ft., Bottom: 84 ft., Determination Method: | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 2824 ft., Weight: 32.3 , Citings Type: ACTUAL | | Cement: | Sacks: 251, Top: 0 ft., Bottom: 2823 ft., Determination Method: | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 9076 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 715, Top: 5070 ft., Bottom: 9076 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH G | 2504 ft. | | N | N | | MESAVERDE | 5338 ft. | | N | N | | CAMEO | 8180 ft. | | N | N |
Formation WFCM Formation Classification: GW Status: PR - 2/15/2008 Interval Top: 6814 ft. Interval Bottom: 8634 ft.| Completed Information for Formation WILLIAMS FORK - CAMEO | | 1st Production Date: | 11/18/2007 | Choke Size: | 0.156 in. | | Formation Name: | WILLIAMS FORK - CAMEO | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 11/13/2007 | | Treatment Summary: | 2,500 GAL 7 1/2% HCL; 618,200# 20/40 SAND; 17,091 BBLS SLICKWATER (SUMMARY) |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 8167 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 2/15/2008 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 0 | | BBLS_OIL | 0 | | BTU_GAS | 1151 | | CALC_GOR | 0 | | CASING_PRESS | 699 | | MCF_GAS | 761 | | TUBING_PRESS | 438 |
| | Perforation Data: | | Interval Top: | 6814 ft. | # Of Holes: | 104 | | Interval Bottom: | 8634 ft. | Hole Size: | 0.35 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 41 |
| Total Gas Produced (MCF) | 12986 |
| GOR | 316731 |
| GOR Determination | MCFE |
| Average BOE per Day | 6.249 |
| Average MCFE per Day | 36.236 |
| Federal Financial Assurance | i | Y |
|
|
