Wellbore #00 Wellbore Classification: GW Status: PR - 8/10/2012 Measured TD: 7900 ft. Vertical TD: 7852 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 8/10/2012 | | Wellbore Permit | DIRECTIONAL | | Permit #: | | Expiration Date: | 2/21/2014 | | Proposed Top PZ Location: | Sec:17 Twp: 6S 92W | Footage: 2094 FNL 1105 FWL | | Bottom Hole Location: | Sec:17 Twp: 6S 92W | Footage: 2094 FNL 1111 FWL | | Proposed Depth/Form: | 7924 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: ILES , Formation: ILES , Order: 191-25 , Unit Acreage: 320, Drill Unit: N/2 | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 191-24 , Unit Acreage: 320, Drill Unit: N/2 | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 16 in., Top: 0 ft., Depth: 60 ft., Weight: 55# , Citings Type: PLANNED | | Cement: | Sacks: 177, Top: 0 ft., Bottom: 60 ft. | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 1000 ft., Weight: 24/32# , Citings Type: PLANNED | | Cement: | Sacks: 439, Top: 0 ft., Bottom: 1000 ft. | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7924 ft., Weight: 11.6# , Citings Type: PLANNED | | Cement: | Sacks: 1303, Top: , Bottom: 7924 ft. | | Casing: | String Type: 2ND, Hole Size: 7.875 in., Size: 5.5 in., Top: , Depth: 8815 ft., Weight: 17# , Citings Type: PLANNED | | Cement: | Sacks: 774, Top: 4515 ft., Bottom: 8815 ft. |
| | |

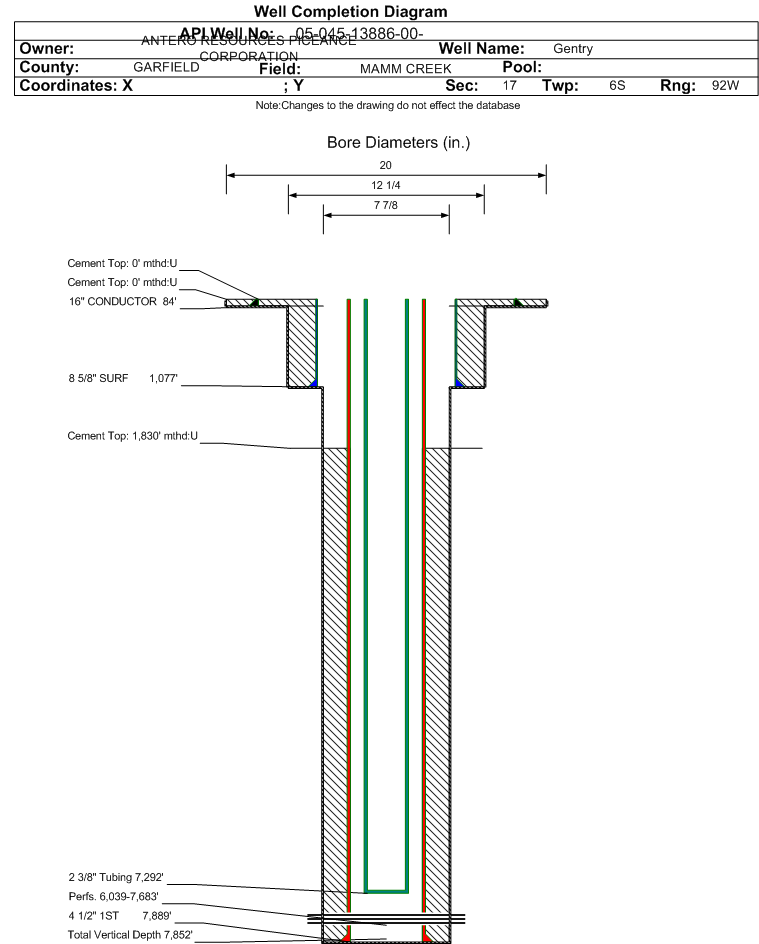

| Wellbore Completed | | Completion Date: | 4/20/2012 | | Spud Date: | 3/2/2012 | Spud Date Is: | ACTUAL | | Measured TD: | 7900 ft. | Measured PB depth: | 7840 ft. | | True Vertical TD: | 7852 ft. | True Vertical PB depth: | 7792 ft. | | Top PZ Location: | Sec:17 Twp: 6S 92W | Footage: 2094 FNL 1105 FWL | | Bottom Hole Location: | Sec:17 Twp: 6S 92W | Footage: 2094 FNL 1111 FWL | | Log Types: | Temp, Mud, CBL | | Log Types: | Temp Log, Mud Log, CBL | | Casing: | String Type: CONDUCTOR, Hole Size: 20 in., Size: 16 in., Top: 0 ft., Depth: 84 ft., Weight: 55# , Citings Type: ACTUAL | | Cement: | Sacks: 177, Top: 0 ft., Bottom: 84 ft., Determination Method: CALC | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 1077 ft., Weight: 32# , Citings Type: ACTUAL | | Cement: | Sacks: 365, Top: 0 ft., Bottom: 1094 ft., Determination Method: CALC | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7889 ft., Weight: 11.6# , Citings Type: ACTUAL | | Cement: | Sacks: 1050, Top: 1830 ft., Bottom: 7900 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WILLIAMS FORK | 4029 ft. | | | | | ROLLINS | 7716 ft. | | | |
Formation WFCM Formation Classification: GW Status: PR - 6/18/2012 Interval Top: 6039 ft. Interval Bottom: 7683 ft.| Completed Information for Formation WILLIAMS FORK - CAMEO | | 1st Production Date: | 6/5/2012 | Choke Size: | | | Formation Name: | WILLIAMS FORK - CAMEO | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 5/29/2012 | | Treatment Summary: | WFCM - Frac'd with 89,168 bbls 2% KCL Slickwater, 1,716,200 lbs 20/40 sand and 199,100 lbs 20/40 SLC sand. |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 7292 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 6/18/2012 | Test Method: | Flowing | | Hours Tested: | 24 | Gas Type: | WET | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 692 | | BTU_GAS | 1127 | | CALC_BBLS_H2O | 692 | | CALC_MCF_GAS | 1347 | | CASING_PRESS | 880 | | MCF_GAS | 1347 | | TUBING_PRESS | 1475 |
| | Perforation Data: | | Interval Top: | 6039 ft. | # Of Holes: | 208 | | Interval Bottom: | 7683 ft. | Hole Size: | 0.37 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 276 |
| Total Gas Produced (MCF) | 24528 |
| GOR | 88869 |
| GOR Determination | MCFE |
| Average BOE per Day | 12.341 |
| Average MCFE per Day | 71.606 |
| Federal Financial Assurance | i | |
|
|
