COGIS - WELL SCOUT CARD

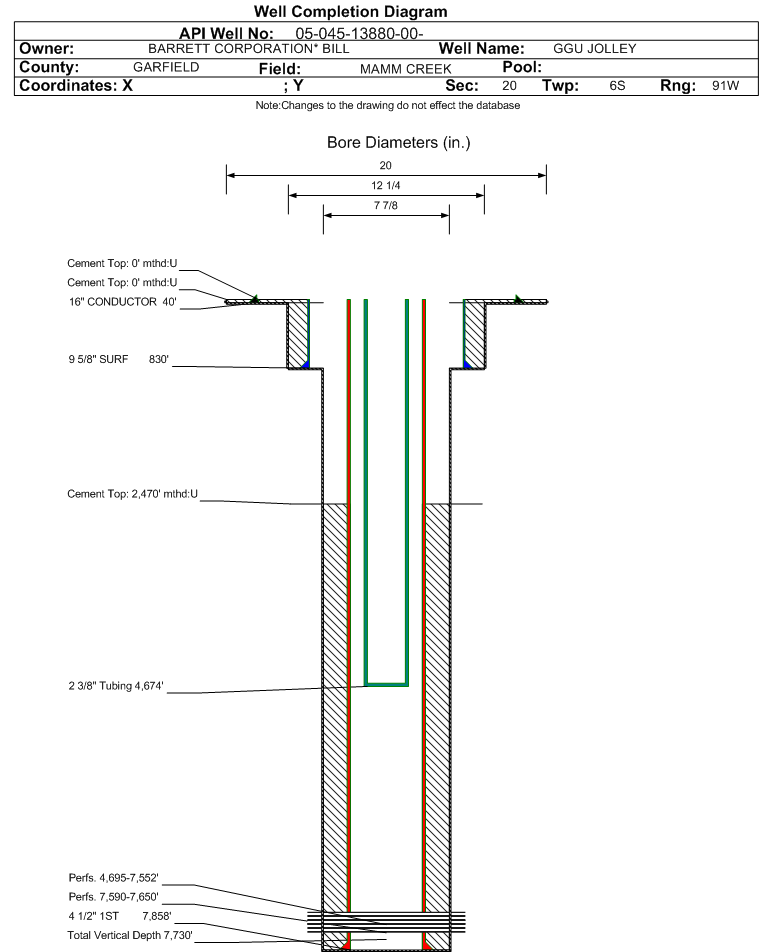

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-13880		Well Classification: GW Status: PR - 7/7/2007
Well Name/No:GGU JOLLEY #43D-20-691
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date7/7/2007
FacilityID:289778LocationID:335185
County:GARFIELD #045Location:NESE 20 6S91W 6
Field:MAMM CREEK - #52500Elevation:6529 ft.
Basin:PICEANCE BASIN
Planned Location:1324FSL  780 FELLat/Long: 39.509797 / -107.571442Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 39.509799 / -107.571442Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 7/7/2007             Measured TD: 7890 ft.    Vertical TD: 7730 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 7/7/2007
Wellbore PermitDIRECTIONAL
Permit #:20071063 Expiration Date:3/21/2008
Proposed Top PZ Location:Sec: Twp: Footage: 2433 FSL  685 FEL
Bottom Hole Location:Sec:20 Twp: 6S 91W Footage: 2433 FSL  685 FEL
Proposed Depth/Form:7882 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit:GIBSON GULCH UN Unit Number:COC052447X
Formation And Spacing:Code: ILES , Formation: ILES , Order: , Unit Acreage: , Drill Unit:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 191-9 , Unit Acreage: , Drill Unit:
Wellbore Completed
Completion Date:4/29/2007
Spud Date:4/18/2007Spud Date Is:ACTUAL
Measured TD:7890 ft.Measured PB depth:7815 ft.
True Vertical TD:7730 ft.True Vertical PB depth:7655 ft.
Top PZ Location:Sec:20 Twp: 6S 91WFootage: 2429 FSL  673 FEL
Bottom Hole Location:Sec:20 Twp: 6S 91WFootage: 2429 FSL  673 FEL
Log Types:HALLIBURTON HRI/SD/DSN; SCHLUMBERGER CBL/GR/VDL; WEATHERFORD TEMP LOG, MUD, DSN/SD
Casing:String Type: CONDUCTOR, Hole Size: 20 in., Size: 16 in., Top: , Depth: 40 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: , Top: , Bottom: 40 ft., Determination Method:
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 830 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 240, Top: 0 ft., Bottom: 830 ft., Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7858 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 900, Top: 2470 ft., Bottom: 7858 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
WILLIAMS FORK3980 ft.NN
ROLLINS7562 ft.NN

Formation RLNS                     Formation Classification:  GW                     Status:  PR - 7/7/2007                  Interval Top: 7590 ft.    Interval Bottom: 7650 ft.

 Completed Information for Formation ROLLINS
1st Production Date:6/25/2007Choke Size:
Formation Name:ROLLINSCommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:6/11/2007
Treatment Summary:4,743 BBLS OF SLICKWATER; 81,557 LBS OF 20-40 SAND; AND 26,000 LBS. OF 20-40 SB.
Tubing Size:2.375 in.Tubing Setting Depth:4674 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:7/7/2007Test Method:FLOWING
Hours Tested:24Gas Type:WET
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 4
BTU_GAS 1117
CALC_BBLS_H2O 4
CALC_GOR 0
CALC_MCF_GAS 62
MCF_GAS 62
Perforation Data:
Interval Top:7590 ft.# Of Holes:32
Interval Bottom:7650 ft.Hole Size:0.34 in.

Formation WMFK                     Formation Classification:  GW                     Status:  PR - 7/7/2007                  Interval Top: 4695 ft.    Interval Bottom: 7552 ft.

 Completed Information for Formation WILLIAMS FORK
1st Production Date:6/25/2007Choke Size:
Formation Name:WILLIAMS FORKCommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:6/11/2007
Treatment Summary:60,845 BBLS. OF SLICKWATER, 1,283,966 LBS. OF 20-40 SAND; 131,410 LBS 30-50 SAND.'
Tubing Size:2.375 in.Tubing Setting Depth:4674 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:7/7/2007Test Method:FLOWING
Hours Tested:24Gas Type:WET
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 86
BTU_GAS 1170
CALC_BBLS_H2O 86
CALC_GOR 0
CALC_MCF_GAS 1184
MCF_GAS 1183
Perforation Data:
Interval Top:4695 ft.# Of Holes:268
Interval Bottom:7552 ft.Hole Size:0.34 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
November 2024 - October 2025i
Total Oil Produced (Barrels)12
Total Gas Produced (MCF)7815
GOR651250
GOR DeterminationMCFE
Average BOE per Day3.722
Average MCFE per Day21.617

 Federal Financial Assurance  i

 Tribal Well  i No
