Facility Detail

COGIS - WELL SCOUT CARD

Related Insp MIT GIS Doc COA Wellbore Orders Bradenhead
Surface Location API# 05-045-13843		Well Classification: GW	Status: PR - 8/26/2008
Well Name/No:	N.PARACHUTE #EF08D G29 595 (Click Well Name for Production Data)	Click Here for Transporter Gatherer Info
Operator:	QB ENERGY OPERATING LLC - 10844 (Click Operator Name for Company Detail Report)	Federal Or State Lease #:
Facility Status:	PR	Status Date	8/26/2008
FacilityID:	289623	LocationID:	335573
County:	GARFIELD #045	Location:	SWNE 29 5S95W 6
Field:	GRAND VALLEY - #31290	Elevation:	6101 ft.
Basin:	PICEANCE BASIN
Planned Location:	2235FNL 1467 FEL	Lat/Long: 39.585930 / -108.073850	Lat/Long Source: Field Measured
As Drilled Location:	Footages Not Available	Lat/Long: 39.585928 / -108.073859	Lat/Long Source: Field Measured

Wellbore And Formation Details -- select either a wellbore Or formation to expand.

Wellbore #00 Wellbore Classification: GW Status: PR - 8/26/2008 Measured TD: 9648 ft. Vertical TD: 9578 ft.

Wellbore Data for Original Wellbore		Wellbore Classification: GW PR - 8/26/2008
Wellbore Permit			DIRECTIONAL
Permit #:	20070612	Expiration Date:	3/6/2008
Proposed Top PZ Location:	Sec: Twp:	Footage: 2310 FNL 330 FEL
Bottom Hole Location:	Sec:29 Twp: 5S 95W	Footage: 2310 FNL 330 FEL
Proposed Depth/Form:	12136 ft.
Surface Mineral Owner Same:	Yes
Mineral Owner:	FEE	Surface Owner:	FEE
Unit:		Unit Number:
Formation And Spacing:	Code: WMFK , Formation: WILLIAMS FORK , Order: 479-15 , Unit Acreage: , Drill Unit:

Wellbore Completed
Completion Date:	2/11/2008
Spud Date:	11/12/2007	Spud Date Is:	ACTUAL
Measured TD:	9648 ft.	Measured PB depth:	9539 ft.
True Vertical TD:	9578 ft.	True Vertical PB depth:	9469 ft.
Top PZ Location:	Sec:29 Twp: 5S 95W	Footage: 2170 FNL 606 FEL
Bottom Hole Location:	Sec:29 Twp: 5S 95W	Footage: 2170 FNL 606 FEL
Log Types:	MUD, CBL, GAMMA RAY

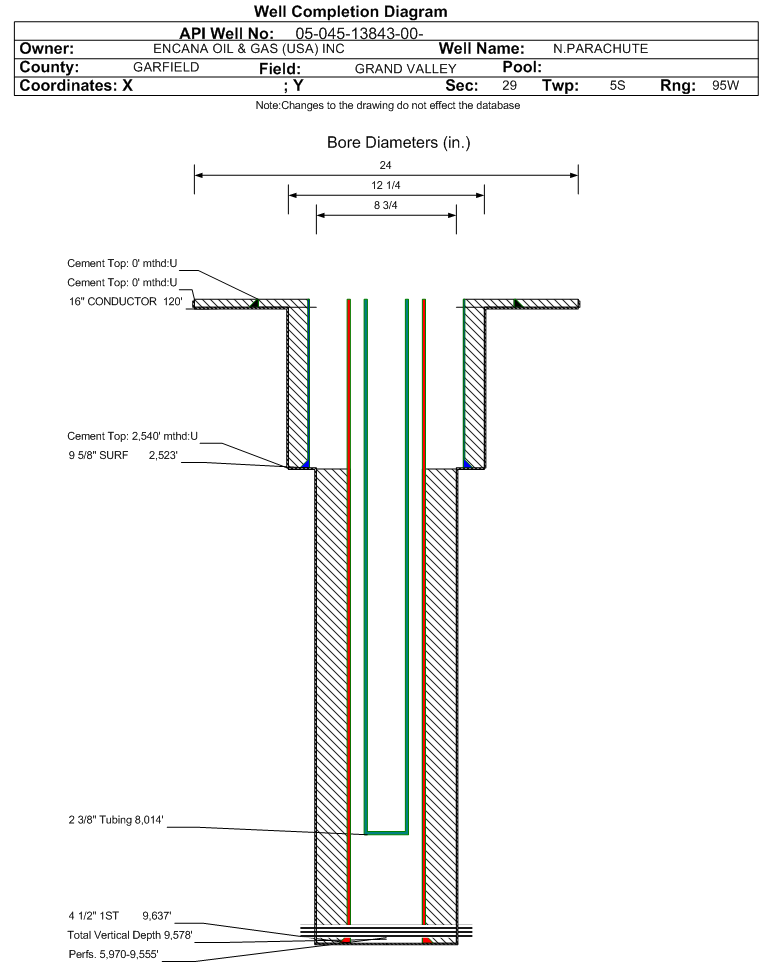

Casing:	String Type: CONDUCTOR, Hole Size: 24 in., Size: 16 in., Top: 0 ft., Depth: 120 ft., Weight: , Citings Type: ACTUAL
Cement:	Sacks: 300, Top: 0 ft., Bottom: 120 ft., Determination Method: CALC
Casing:	String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 2523 ft., Weight: , Citings Type: ACTUAL
Cement:	Sacks: 520, Top: 0 ft., Bottom: 2531 ft., Determination Method: CALC
Casing:	String Type: 1ST, Hole Size: 8.75 in., Size: 4.5 in., Top: 0 ft., Depth: 9637 ft., Weight: , Citings Type: ACTUAL
Cement:	Sacks: 1381, Top: 2540 ft., Bottom: 9637 ft., Determination Method: CBL
Formation	Interval Top	Log Bottom	Cored	DSTs
WILLIAMS FORK	5846 ft.	9405 ft.	N	N
ROLLINS	9406 ft.	9648 ft.	N	N

Formation WMFK Formation Classification: GW Status: PR - 8/26/2008 Interval Top: 5970 ft. Interval Bottom: 9555 ft.

Completed Information for Formation WILLIAMS FORK

1st Production Date:	8/19/2008	Choke Size:	0.375 in.
Formation Name:	WILLIAMS FORK	Commingled:	No
Production Method:
Open Hole Completion:	No

Formation Treatment
Treatment Date:	12/30/2009
Treatment Summary:	STAGES 01-11 TREATED WITH A TOTAL OF 47334 BBLS SLICKWATER & 119,615# 30/50 SAND.

Test Type	Measure
Tubing Size:	2.375 in.	Tubing Setting Depth:	8014 ft.
Tubing Packer Depth:		Tubing Multiple Packer:
Open Hole Top:		Open Hole Bottom:
Initial Test Data:
Test Date:	8/26/2008	Test Method:	FLOWING
Hours Tested:	24	Gas Type:	DRY
Gas Disposal:	SOLD
BBLS_H2O	0
BTU_GAS	1170
CALC_MCF_GAS	995
CASING_PRESS	1800
MCF_GAS	995
TUBING_PRESS	1250

Perforation Data:
Interval Top:	5970 ft.	# Of Holes:	330
Interval Bottom:	9555 ft.	Hole Size:	0.42 in.

All Designations		Date
Primary Well Designation: None i
Reported Plugged	N
Out Of Service Repurposed	N
Out Of Service	N
Inactive Exception	N
Noticed Inactive	N
Defined Inactive	N
Low Producing	N

September 2024 - August 2025	i
BOE/MCFE/GOR Calculations Production for Previous 12 Months
Total Oil Produced (Barrels)	65
Total Gas Produced (MCF)	12241
GOR	188323
GOR Determination	MCFE
Average BOE per Day	5.964
Average MCFE per Day	34.582

Federal Financial Assurance

Tribal Well
