Wellbore #00 Wellbore Classification: GW Status: PR - 1/22/2007 Measured TD: 7222 ft. Vertical TD: 7140 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 1/22/2007 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 20070358 | Expiration Date: | 2/27/2008 | | Proposed Top PZ Location: | Sec: Twp: | Footage: 1541 FNL 1689 FEL | | Bottom Hole Location: | Sec:17 Twp: 6S 96W | Footage: 1541 FNL 1689 FEL | | Proposed Depth/Form: | 7257 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 510-8 , Unit Acreage: 320, Drill Unit: E/2 |
| | |

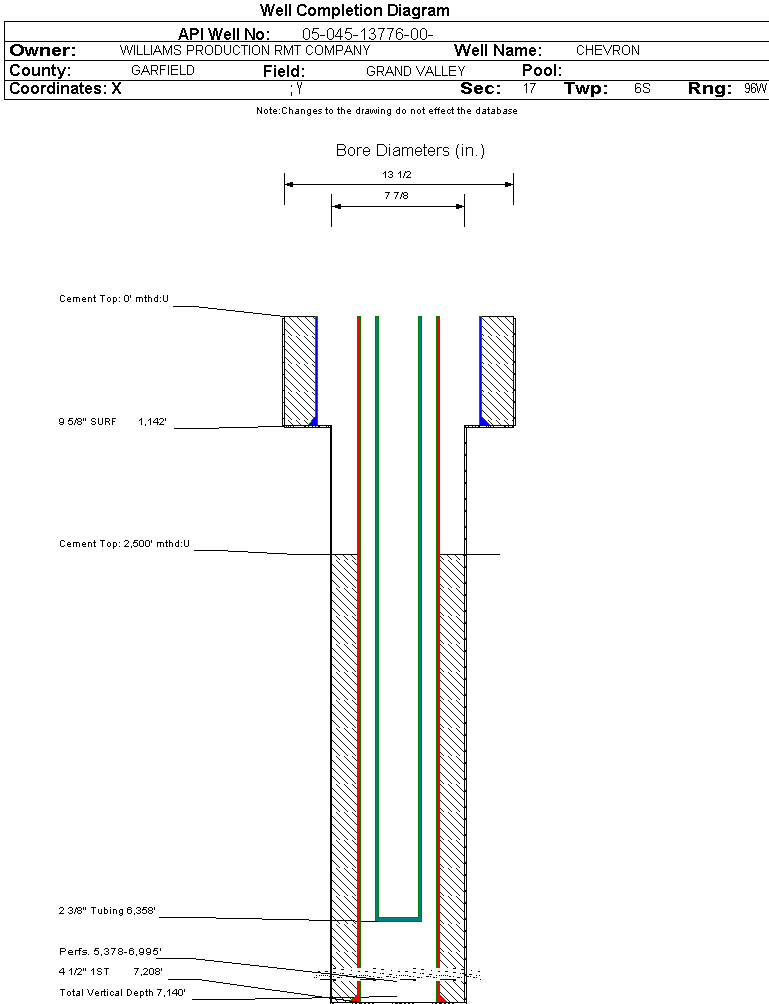

| Wellbore Completed | | Completion Date: | 5/31/2007 | | Spud Date: | 5/22/2007 | Spud Date Is: | ACTUAL | | Measured TD: | 7222 ft. | Measured PB depth: | 7156 ft. | | True Vertical TD: | 7140 ft. | True Vertical PB depth: | | | Top PZ Location: | Sec:17 Twp: 6S 96W | Footage: 1544 FNL 1848 FEL | | Bottom Hole Location: | Sec:17 Twp: 6S 96W | Footage: 1544 FNL 1848 FEL | | Log Types: | CBL; RESERVOIR MONITOR TOOL ELITE; MUD | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1142 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 375, Top: 0 ft., Bottom: 1142 ft., Determination Method: | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7208 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 881, Top: 2500 ft., Bottom: 7208 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH G | 2163 ft. | | N | N | | MESAVERDE | 3939 ft. | | N | N | | CAMEO | 6585 ft. | | N | N | | ROLLINS | 7080 ft. | | N | N |
Formation WFCM Formation Classification: GW Status: PR - 9/15/2007 Interval Top: 5378 ft. Interval Bottom: 6995 ft.| Completed Information for Formation WILLIAMS FORK - CAMEO | | 1st Production Date: | 8/5/2007 | Choke Size: | 0.188 in. | | Formation Name: | WILLIAMS FORK - CAMEO | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 8/3/2007 | | Treatment Summary: | 3786 GALS 7 1/2% HCL; 980400 # 30/50 SAND; 36100 BBLS SLICKWATER |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 6358 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 9/15/2007 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| CASING_PRESS | 1863 | | MCF_GAS | 1091 | | TUBING_PRESS | 1622 |
| | Perforation Data: | | Interval Top: | 5378 ft. | # Of Holes: | 132 | | Interval Bottom: | 6995 ft. | Hole Size: | 0.35 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 24 |
| Total Gas Produced (MCF) | 13754 |
| GOR | 573083 |
| GOR Determination | MCFE |
| Average BOE per Day | 6.563 |
| Average MCFE per Day | 38.077 |
| Federal Financial Assurance | i | |
|
|
