Wellbore #00 Wellbore Classification: GW Status: PR - 11/17/2006 Measured TD: 9090 ft. Vertical TD: 8926 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 11/17/2006 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 20066088 | Expiration Date: | 1/8/2008 | | Proposed Top PZ Location: | Sec: Twp: | Footage: 1520 FSL 690 FWL | | Bottom Hole Location: | Sec:12 Twp: 6S 93W | Footage: 1520 FSL 690 FWL | | Proposed Depth/Form: | 9089 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: ILES , Formation: ILES , Order: 191-25 , Unit Acreage: , Drill Unit: | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 510-16 , Unit Acreage: , Drill Unit: |
| | |

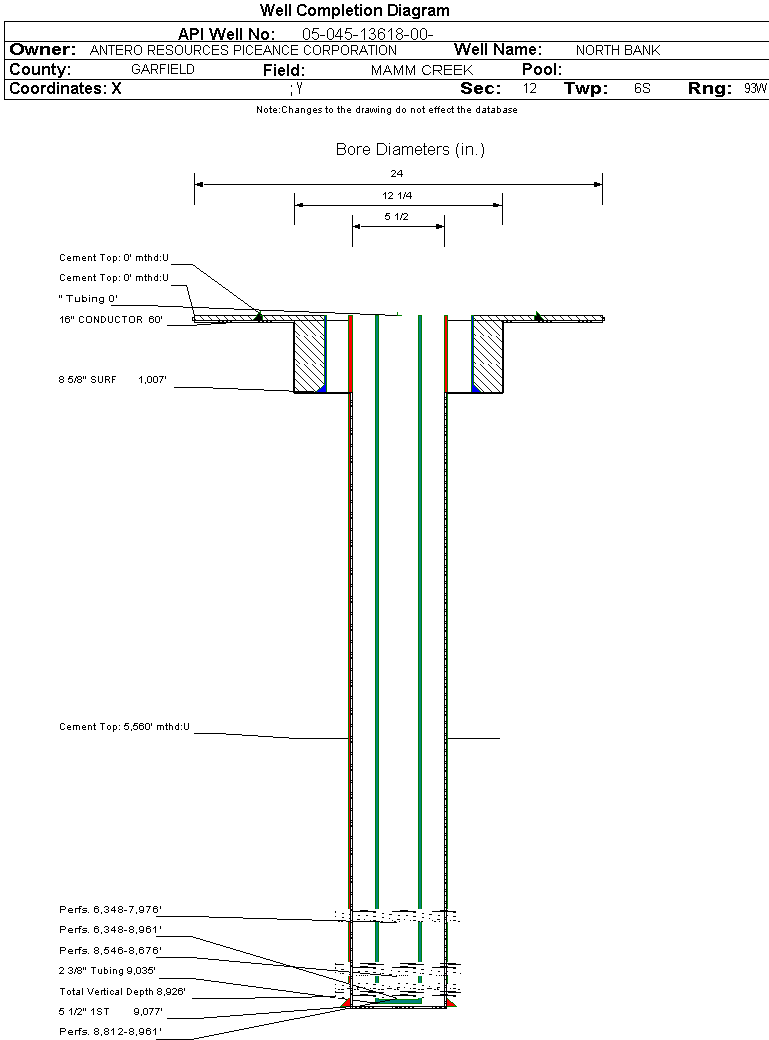

| Wellbore Completed | | Completion Date: | 11/15/2007 | | Spud Date: | 10/30/2007 | Spud Date Is: | ACTUAL | | Measured TD: | 9090 ft. | Measured PB depth: | 9039 ft. | | True Vertical TD: | 8926 ft. | True Vertical PB depth: | 8875 ft. | | Top PZ Location: | Sec:12 Twp: 6S 93W | Footage: 1605 FSL 691 FWL | | Bottom Hole Location: | Sec:12 Twp: 6S 93W | Footage: 1605 FSL 691 FWL | | Log Types: | TRIPLE COMBO (RMTE/CCL/GR) & CBL | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 16 in., Top: 0 ft., Depth: 60 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: , Top: 0 ft., Bottom: 60 ft., Determination Method: CALC | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 1007 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 416, Top: 0 ft., Bottom: 1020 ft., Determination Method: CALC | | Casing: | String Type: 1ST, Hole Size: 5.5 in., Size: 5.5 in., Top: 0 ft., Depth: 9077 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 600, Top: 5560 ft., Bottom: 9090 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WILLIAMS FORK | 4306 ft. | | N | N | | CAMEO | 6922 ft. | | N | N | | ROLLINS | 8005 ft. | | N | N | | COZZETTE | 8524 ft. | | N | N | | CORCORAN | 8796 ft. | | N | N |
Formation CRCRN Formation Classification: GW Status: PR - 11/17/2006 Interval Top: 8812 ft. Interval Bottom: 8961 ft.| Completed Information for Formation CORCORAN | | 1st Production Date: | 1/20/2008 | Choke Size: | | | Formation Name: | CORCORAN | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 1/7/2008 | | Treatment Summary: | CORCORAN-COZZETTE- FRAC W/14,530 BBLS 2% KCL, 201,000 LBS 30/50 & 142,000 LBS 20/40 SAND. |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation CRCRN. |
| | Perforation Data: | | Interval Top: | 8812 ft. | # Of Holes: | 38 | | Interval Bottom: | 8961 ft. | Hole Size: | 0.42 in. |
|
Formation COZZ Formation Classification: GW Status: PR - 11/17/2006 Interval Top: 8546 ft. Interval Bottom: 8676 ft.| Completed Information for Formation COZZETTE | | 1st Production Date: | 1/20/2008 | Choke Size: | | | Formation Name: | COZZETTE | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 1/7/2008 | | Treatment Summary: | CORCORAN-COZZETTE- FRAC W/14,530 BBLS 2% KCL, 201,000 LBS 30/50 , & 142,000 LBS 20/40 SAND. |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation COZZ. |
| | Perforation Data: | | Interval Top: | 8546 ft. | # Of Holes: | 38 | | Interval Bottom: | 8676 ft. | Hole Size: | 0.42 in. |
|
Formation WFCM Formation Classification: GW Status: PR - 11/17/2006 Interval Top: 6348 ft. Interval Bottom: 7976 ft.| Completed Information for Formation WILLIAMS FORK - CAMEO | | 1st Production Date: | 1/20/2008 | Choke Size: | | | Formation Name: | WILLIAMS FORK - CAMEO | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 1/8/2008 | | Treatment Summary: | WFCM-FRAC W/33,112 BBLS 2% KCL, 448,000 LBS 30/50 SAND & 319,900 LBS 20/40 SAND. |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation WFCM. |
| | Perforation Data: | | Interval Top: | 6348 ft. | # Of Holes: | 152 | | Interval Bottom: | 7976 ft. | Hole Size: | 0.42 in. |
|
Formation WFILS Formation Classification: GW Status: CM - 1/25/2008 Interval Top: 6348 ft. Interval Bottom: 8961 ft.| Completed Information for Formation WILLIAMS FORK-ILES | | 1st Production Date: | 1/20/2008 | Choke Size: | 0.250 in. | | Formation Name: | WILLIAMS FORK-ILES | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 1/7/2008 | | Treatment Summary: | |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 9035 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 1/25/2008 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | WET | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 815 | | BTU_GAS | 1064 | | CALC_BBLS_H2O | 815 | | CALC_MCF_GAS | 769 | | CASING_PRESS | 2400 | | MCF_GAS | 769 | | TUBING_PRESS | 1500 |
| | Perforation Data: | | Interval Top: | 6348 ft. | # Of Holes: | 190 | | Interval Bottom: | 8961 ft. | Hole Size: | 0.42 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 22 |
| Total Gas Produced (MCF) | 9114 |
| GOR | 414272 |
| GOR Determination | MCFE |
| Average BOE per Day | 4.371 |
| Average MCFE per Day | 25.328 |
| Federal Financial Assurance | i | |
|
|
