COGIS - WELL SCOUT CARD

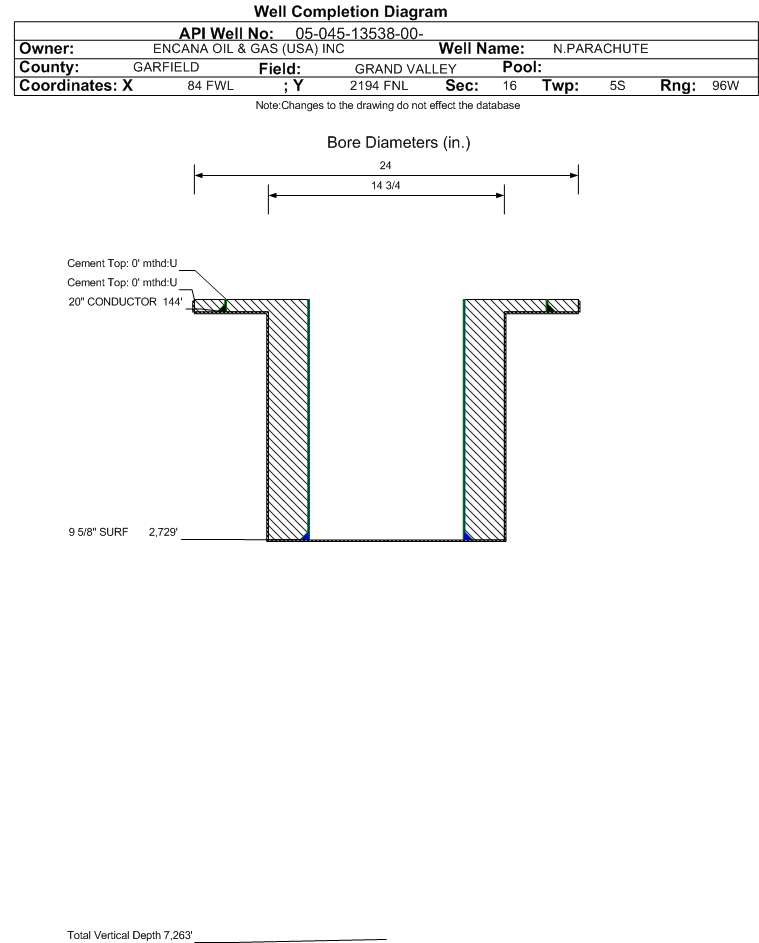

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-13538		Well Classification: GW Status: PR - 5/1/2022
Well Name/No:N.PARACHUTE #CP8D-17 E16 596
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:QB ENERGY OPERATING LLC - 10844
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date5/1/2022
FacilityID:275417LocationID:335812
County:GARFIELD #045Location:SWNW 16 5S96W 6
Field:GRAND VALLEY - #31290Elevation:8382 ft.
Basin:PICEANCE BASIN
Planned Location:2166FNL  70 FWLLat/Long: 39.616380 / -108.183250Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 39.616386 / -108.183256Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 12/5/2007             Measured TD: 7280 ft.    Vertical TD: 7263 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 12/5/2007
Wellbore PermitDIRECTIONAL
Permit #:20063525 Expiration Date:8/23/2007
Proposed Top PZ Location:Sec: Twp: Footage: 1650 FSL  330 FEL
Bottom Hole Location:Sec:17 Twp: 5S 96W Footage: 2310 FNL  330 FEL
Proposed Depth/Form:11652 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: ILES , Formation: ILES , Order: , Unit Acreage: , Drill Unit:
Formation And Spacing:Code: OHCRK , Formation: OHIO CREEK , Order: , Unit Acreage: , Drill Unit:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 479-15 , Unit Acreage: , Drill Unit:
Formation And Spacing:Code: WSTC , Formation: WASATCH , Order: , Unit Acreage: , Drill Unit:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: , Depth: 11652 ft., Weight: 17 , Citings Type: PLANNED
Cement:Sacks: 757, Top: 200 ft., Bottom: 11652 ft.
Wellbore Completed
Completion Date:N/A
Spud Date:4/11/2007Spud Date Is:ACTUAL
Measured TD:7280 ft.Measured PB depth:2713 ft.
True Vertical TD:7263 ft.True Vertical PB depth:2706 ft.
Bottom Hole Location:Sec:16 Twp: 5S 96WFootage: 2310 FNL  330 FEL
Log Types:NONE
Casing:String Type: CONDUCTOR, Hole Size: 24 in., Size: 20 in., Top: 0 ft., Depth: 144 ft., Weight: 106.5 , Citings Type: ACTUAL
Cement:Sacks: , Top: 0 ft., Bottom: 144 ft., Determination Method:
Casing:String Type: SURF, Hole Size: 14.75 in., Size: 9.625 in., Top: 0 ft., Depth: 2729 ft., Weight: 36 , Citings Type: ACTUAL
Cement:Sacks: 1650, Top: 0 ft., Bottom: 2729 ft., Determination Method:
  No formation data to display.

Sidetrack #01             Wellbore Classification: GW             Status: PR - 5/1/2022             Measured TD: 11750 ft.    Vertical TD: 11678 ft.

 Wellbore Data for Sidetrack #01Wellbore Classification: GW        PR - 5/1/2022
Wellbore PermitDIRECTIONAL
Permit #:20072478 Expiration Date:7/16/2010
Proposed Top PZ Location:Sec: Twp: Footage: 1650 FNL  330 FEL
Bottom Hole Location:Sec:17 Twp: 5S 96W Footage: 1650 FNL  330 FEL
Proposed Depth/Form:11721 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: SEGO , Formation: SEGO , Order: , Unit Acreage: , Drill Unit:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 510-13 , Unit Acreage: , Drill Unit:
Wellbore Completed
Completion Date:6/6/2007
Spud Date:4/11/2007Spud Date Is:ACTUAL
Measured TD:11750 ft.Measured PB depth:11750 ft.
True Vertical TD:11678 ft.True Vertical PB depth:11678 ft.
Top PZ Location:Sec:17 Twp: 5S 96WFootage: 1593 FNL  345 FEL
Bottom Hole Location:Sec:17 Twp: 5S 96WFootage: 1685 FNL  437 FEL
Log Types:DSN/SD/HRI; RBT; ML; BVP; TEMP; WAAL; MRPL; WSPL
Log Types:Radial Cement Bond Log, Mud Log sumbitted electronically.
Casing:String Type: CONDUCTOR, Hole Size: 24 in., Size: 16 in., Top: 0 ft., Depth: 120 ft., Weight: 42 , Citings Type: ACTUAL
Cement:Sacks: 545, Top: 0 ft., Bottom: 120 ft., Determination Method: CALC
Casing:String Type: SURF, Hole Size: 14.75 in., Size: 9.625 in., Top: 0 ft., Depth: 2729 ft., Weight: 36 , Citings Type: ACTUAL
Cement:Sacks: 1650, Top: 0 ft., Bottom: 2742 ft., Determination Method: CALC
Casing:String Type: 1ST, Hole Size: 8.75 in., Size: 7 in., Top: 0 ft., Depth: 7243 ft., Weight: 23 , Citings Type: ACTUAL
Cement:Sacks: 190, Top: 7162 ft., Bottom: 7255 ft., Determination Method: CALC
Casing:String Type: 2ND, Hole Size: 6.125 in., Size: 4.5 in., Top: 0 ft., Depth: 11743 ft., Weight: 12 , Citings Type: ACTUAL
Cement:Sacks: 487, Top: 7124 ft., Bottom: 11750 ft., Determination Method: CBL
Additional Cement:String Type: 2ND , Top: 7124 ft., Depth: 8712 ft., Bottom: 11750 ft., Sacks: 342, Method: SQUEEZE
Additional Cement:String Type: 2ND , Top: 7124 ft., Depth: 8750 ft., Bottom: 11750 ft., Sacks: , Method: SQUEEZE
FormationInterval TopLog BottomCoredDSTs
WASATCH2654 ft.NN
OHIO CREEK6618 ft.NN
WILLIAMS FORK7196 ft.10367 ft.NN
ROLLINS10367 ft.10633 ft.NN
COZZETTE10633 ft.10665 ft.NN
CORCORAN10665 ft.10720 ft.NN
SEGO10720 ft.11750 ft.

Formation SEGO                     Formation Classification:  OW                     Status:  SI - 4/1/2010                  Interval Top: 10754 ft.    Interval Bottom: 11571 ft.

 Completed Information for Formation SEGO
1st Production Date:12/5/2007Choke Size:
Formation Name:SEGOCommingled:Yes
Production Method:
Open Hole Completion:
Formation Treatment
Treatment Date:10/28/2007
Treatment Summary:Stages 1-2 Trated with a total of: 33,000 lbs 100 Mesh Sand, 141,700 lbs 30/50 White Sand, 7,342 gallons of Aquastim, 1,500 gallons 10% HCL. See Williams For for Commingled test information.
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation SEGO.
Perforation Data:
Interval Top:10754 ft.# Of Holes:52
Interval Bottom:11571 ft.Hole Size:0.36 in.

Formation WMFK                     Formation Classification:  OW                     Status:  PR - 5/1/2022                  Interval Top: 8714 ft.    Interval Bottom: 11571 ft.

 Completed Information for Formation WILLIAMS FORK
1st Production Date:12/5/2007Choke Size:
Formation Name:WILLIAMS FORKCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:11/3/2007
Treatment Summary:Stages 3-6 treated with a total of: 98,730 lbs of 100 Mesh Sand, 390,731 lbs of 30/50 White Sand, 19,024 gallons of Aquastim, 3,750 gallons1 0% HCL. Perfs from 8712-8750 squeezed with 70 bbls of 10.5 Ppg Litecrete.
Formation Treatment
Treatment Date:10/28/2007
Treatment Summary:26,365.9 BBLS AQUASTIM; 131,730 LBS 100 MESH SSA 2, 532, 431 LBS 30/40 WHITE SAND
Tubing Size:2.375 in.Tubing Setting Depth:10306 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:12/5/2007Test Method:FLOWING
Hours Tested:24Gas Type:DRY
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 738
BTU_GAS 1170
CALC_BBLS_H2O 180
CALC_MCF_GAS 658
CASING_PRESS 3600
MCF_GAS 949
TUBING_PRESS 550
Perforation Data:
Interval Top:8714 ft.# Of Holes:176
Interval Bottom:11571 ft.Hole Size:0.36 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)94
Total Gas Produced (MCF)15171
GOR161393
GOR DeterminationMCFE
Average BOE per Day7.424
Average MCFE per Day43.075

 Federal Financial Assurance  i

 Tribal Well  i No
