Wellbore #00 Wellbore Classification: GW Status: SI - 11/1/2025 Measured TD: 6950 ft. Vertical TD: 6875 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW SI - 11/1/2025 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 20043062 | Expiration Date: | 12/28/2005 | | Proposed Top PZ Location: | Sec: Twp: | Footage: 1171 FNL 1962 FEL | | Bottom Hole Location: | Sec: Twp: | Footage: 1171 FNL 1962 FEL | | Proposed Depth/Form: | 7001 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 139-38 , Unit Acreage: 320, Drill Unit: N2 |
| | |

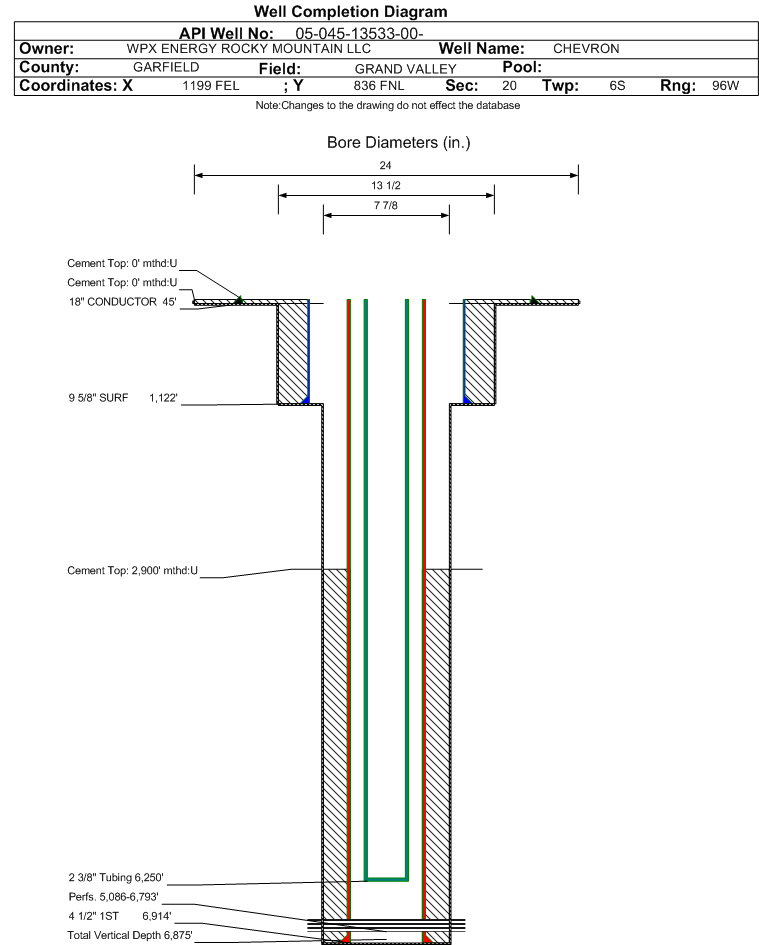

| Wellbore Completed | | Completion Date: | 4/29/2005 | | Spud Date: | 3/18/2005 | Spud Date Is: | ACTUAL | | Measured TD: | 6950 ft. | Measured PB depth: | 6896 ft. | | True Vertical TD: | 6875 ft. | True Vertical PB depth: | | | Top PZ Location: | Sec: Twp: | Footage: 1171 FNL 1962 FEL | | Bottom Hole Location: | Sec: Twp: | Footage: 1171 FNL 1962 FEL | | Log Types: | RESERVOIR MONITOR TOOL ELITE, CBL | | Casing: | String Type: CONDUCTOR, Hole Size: , Size: , Top: , Depth: 45 ft., Weight: 32 , Citings Type: ACTUAL | | Cement: | Sacks: 35, Top: 0 ft., Bottom: 45 ft., Determination Method: VISU | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: , Depth: 1122 ft., Weight: 32.2 , Citings Type: ACTUAL | | Cement: | Sacks: 375, Top: 0 ft., Bottom: 1122 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 6914 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 790, Top: 2900 ft., Bottom: 6914 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH G | 2065 ft. | | N | N | | FORT UNION | 2358 ft. | | N | N | | MESAVERDE | 3792 ft. | | N | N | | CAMEO | 6367 ft. | | N | N | | ROLLINS | 6857 ft. | | N | N |
Formation WFCM Formation Classification: GW Status: SI - 11/1/2025 Interval Top: 5086 ft. Interval Bottom: 6793 ft.| Completed Information for Formation WILLIAMS FORK - CAMEO | | 1st Production Date: | N/A | Choke Size: | 0.313 in. | | Formation Name: | WILLIAMS FORK - CAMEO | Commingled: | No | | Production Method: | FLOWING | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 4/29/2005 | | Treatment Summary: | 4000 GALS 7 1/2% HCL, 511100# 20/40, 11641 BBLS SLICK WATER (SUMMARY) |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 6250 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 6/10/2005 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 0 | | BBLS_OIL | 0 | | CALC_BBLS_H2O | 0 | | CALC_BBLS_OIL | 0 | | CALC_MCF_GAS | 1255 | | CASING_PRESS | 855 | | MCF_GAS | 1255 | | TUBING_PRESS | 624 |
| | Perforation Data: | | Interval Top: | 5086 ft. | # Of Holes: | 83 | | Interval Bottom: | 6793 ft. | Hole Size: | 0.34 in. |
|
|
|
|
|
|
|
| Reported Plugged | Y | 12/15/2025 |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 11 |
| Total Gas Produced (MCF) | 7789 |
| GOR | 708090 |
| GOR Determination | MCFE |
| Average BOE per Day | 3.713 |
| Average MCFE per Day | 21.540 |
| Federal Financial Assurance | i | |
|
|
