COGIS - WELL SCOUT CARD

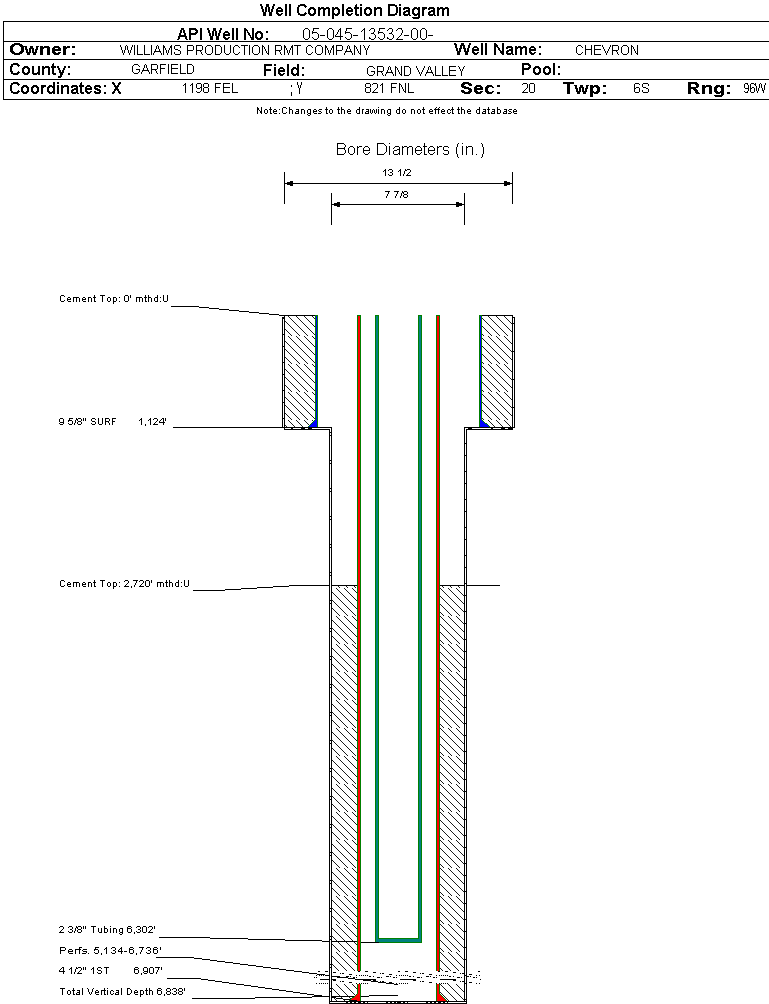

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-13532		Well Classification: OW Status: PR - 1/1/2019
Well Name/No:CHEVRON #GM 431-20
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date1/1/2019
FacilityID:275427LocationID:335223
County:GARFIELD #045Location:NENE 20 6S96W 6
Field:GRAND VALLEY - #31290Elevation:5549 ft.
Basin:PICEANCE BASIN
Planned Location:821FNL  1198 FELLat/Long: 39.514778 / -108.127687Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.514832 / -108.127487Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: OW             Status: PR - 1/1/2019             Measured TD: 6920 ft.    Vertical TD: 6838 ft.

 Wellbore Data for Original WellboreWellbore Classification: OW        PR - 1/1/2019
Wellbore PermitDIRECTIONAL
Permit #:20043061 Expiration Date:12/28/2005
Proposed Top PZ Location:Sec: Twp: Footage: 777 FNL  2072 FEL
Bottom Hole Location:Sec: Twp: Footage: 777 FNL  2072 FEL
Proposed Depth/Form:7014 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 139-38 , Unit Acreage: 320, Drill Unit: N2
Wellbore Completed
Completion Date:5/3/2005
Spud Date:3/6/2005Spud Date Is:ACTUAL
Measured TD:6920 ft.Measured PB depth:6890 ft.
True Vertical TD:6838 ft.True Vertical PB depth:
Top PZ Location:Sec: Twp: Footage: 777 FNL  2072 FEL
Bottom Hole Location:Sec: Twp: Footage: 777 FNL  2072 FEL
Log Types:RESERVOIR MONITOR TOOL ELITE, CBL
Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: , Depth: 1124 ft., Weight: 32.3 , Citings Type: ACTUAL
Cement:Sacks: 375, Top: 0 ft., Bottom: 1123 ft., Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 6907 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 768, Top: 2720 ft., Bottom: 6907 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
WASATCH G2061 ft.NN
FORT UNION2359 ft.NN
MESAVERDE3774 ft.NN
CAMEO6373 ft.NN
ROLLINS6863 ft.NN

Formation WFCM                     Formation Classification:  OW                     Status:  PR - 1/1/2019                  Interval Top: 5134 ft.    Interval Bottom: 6736 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:N/AChoke Size:0.281 in.
Formation Name:WILLIAMS FORK - CAMEOCommingled:No
Production Method:FLOWING
Open Hole Completion:No
Formation Treatment
Treatment Date:5/3/2005
Treatment Summary:4000 GALS 7 1/2% HCL, 554100# 20/40, 11351 BBLS SLICK WATER (SUMMARY)
Tubing Size:2.375 in.Tubing Setting Depth:6302 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:6/13/2005Test Method:FLOWING
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 0
BBLS_OIL 0
CALC_BBLS_H2O 0
CALC_BBLS_OIL 0
CALC_MCF_GAS 1255
CASING_PRESS 966
MCF_GAS 1255
TUBING_PRESS 823
Perforation Data:
Interval Top:5134 ft.# Of Holes:80
Interval Bottom:6736 ft.Hole Size:0.34 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
November 2024 - October 2025i
Total Oil Produced (Barrels)11
Total Gas Produced (MCF)6285
GOR571363
GOR DeterminationMCFE
Average BOE per Day3.003
Average MCFE per Day17.403

 Federal Financial Assurance  i

 Tribal Well  i No
