Wellbore #00 Wellbore Classification: GW Status: PR - 12/1/2023 Measured TD: 8717 ft. Vertical TD: 8708 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 12/1/2023 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 20042992 | Expiration Date: | 12/26/2005 | | Proposed Top PZ Location: | Sec: Twp: | Footage: 600 FNL 2200 FEL | | Bottom Hole Location: | Sec: Twp: | Footage: 660 FNL 2200 FEL | | Proposed Depth/Form: | 9000 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: CMEOC , Formation: CAMEO COAL , Order: 139-16 , Unit Acreage: 640, Drill Unit: ALL | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 139-16 , Unit Acreage: 640, Drill Unit: ALL |
| | |

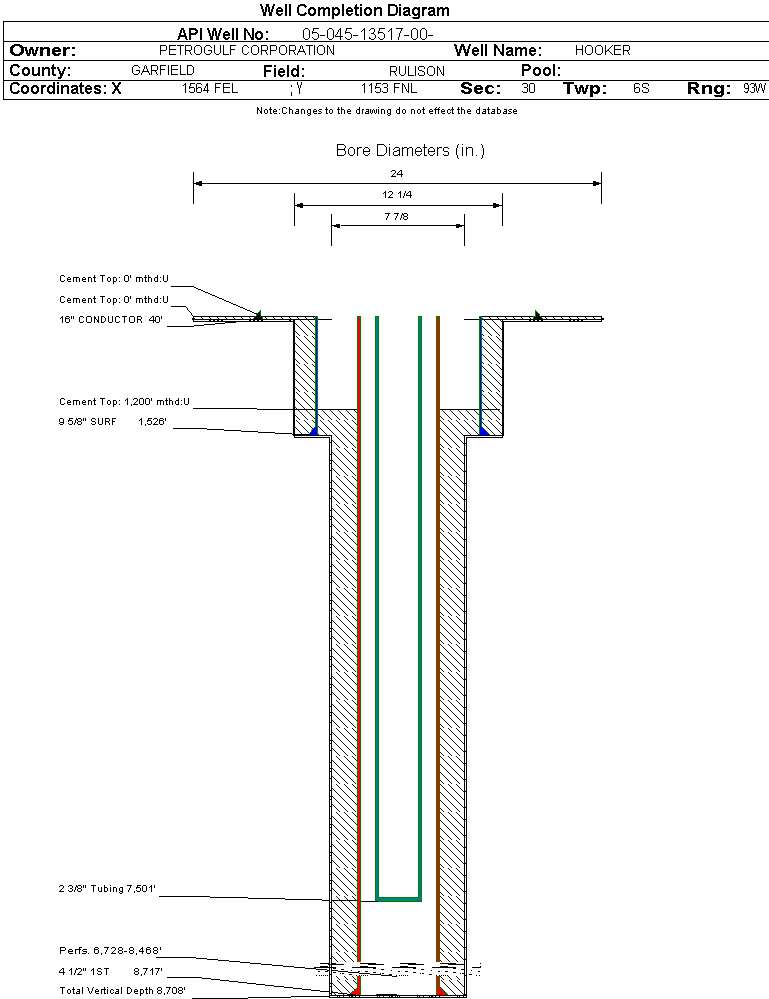

| Wellbore Completed | | Completion Date: | 12/16/2005 | | Spud Date: | 11/21/2005 | Spud Date Is: | ACTUAL | | Measured TD: | 8717 ft. | Measured PB depth: | 8717 ft. | | True Vertical TD: | 8708 ft. | True Vertical PB depth: | 8708 ft. | | Top PZ Location: | Sec:30 Twp: 6S 93W | Footage: 1193 FNL 1454 FEL | | Bottom Hole Location: | Sec:30 Twp: 6S 93W | Footage: 1193 FNL 1454 FEL | | Log Types: | CBL/TEMP, PLATFORM EXPRESS TRIPLE COMBO PRESENTATION, MUD | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 16 in., Top: 0 ft., Depth: 40 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 24, Top: 0 ft., Bottom: 40 ft., Determination Method: CALC | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 1526 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 950, Top: 0 ft., Bottom: 1526 ft., Determination Method: CALC | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 8717 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 1335, Top: 1200 ft., Bottom: 8717 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WILLIAMS FORK | 4788 ft. | 7786 ft. | N | N | | CAMEO | 7787 ft. | 8580 ft. | N | N |
Formation WFCMC Formation Classification: GW Status: PR - 12/1/2023 Interval Top: 6728 ft. Interval Bottom: 8468 ft.| Completed Information for Formation WILLIAMS FORK-CAMEO COAL | | 1st Production Date: | 6/12/2006 | Choke Size: | 0.375 in. | | Formation Name: | WILLIAMS FORK-CAMEO COAL | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 6/3/2006 | | Treatment Summary: | SEE ATTACHMENT |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 7501 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 7/18/2006 | Test Method: | ACTUAL FLOW | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 213 | | BBLS_OIL | 2 | | BTU_GAS | 1184 | | CASING_PRESS | 850 | | GRAVITY_OIL | 54 | | MCF_GAS | 1033 | | TUBING_PRESS | 550 |
| | Perforation Data: | | Interval Top: | 6728 ft. | # Of Holes: | 318 | | Interval Bottom: | 8468 ft. | Hole Size: | 0.34 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 48 |
| Total Gas Produced (MCF) | 13584 |
| GOR | 283000 |
| GOR Determination | MCFE |
| Average BOE per Day | 6.547 |
| Average MCFE per Day | 37.973 |
