COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-13508		Well Classification: GW Status: PR - 7/26/2005
Well Name/No:PA #323-28
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:COC 67447
Facility Status:PRStatus Date7/26/2005
FacilityID:275259LocationID:335231
County:GARFIELD #045Location:NESW 28 6S95W 6
Field:PARACHUTE - #67350Elevation:5612 ft.
Basin:PICEANCE BASIN
Planned Location:1858FSL  1945 FWLLat/Long: 39.493359 / -108.005603Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.493373 / -108.005561Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 7/26/2005             Measured TD: 7597 ft.    Vertical TD: 7561 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 7/26/2005
Wellbore PermitDIRECTIONAL
Permit #:20043020 Expiration Date:12/20/2005
Proposed Top PZ Location:Sec: Twp: Footage: 1806 FSL  1411 FWL
Bottom Hole Location:Sec: Twp: Footage: 1806 FSL  1411 FWL
Proposed Depth/Form:7703 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 139-38 , Unit Acreage: 320, Drill Unit: W2
Wellbore Completed
Completion Date:6/9/2005
Spud Date:4/13/2005Spud Date Is:ACTUAL
Measured TD:7597 ft.Measured PB depth:7552 ft.
True Vertical TD:7561 ft.True Vertical PB depth:
Top PZ Location:Sec:28 Twp: 6S 95WFootage: 1811 FSL  1429 FWL
Bottom Hole Location:Sec:28 Twp: 6S 95WFootage: 1811 FSL  1429 FWL
Log Types:CBL; RESERVOIR MONITOR TOOL ELITE

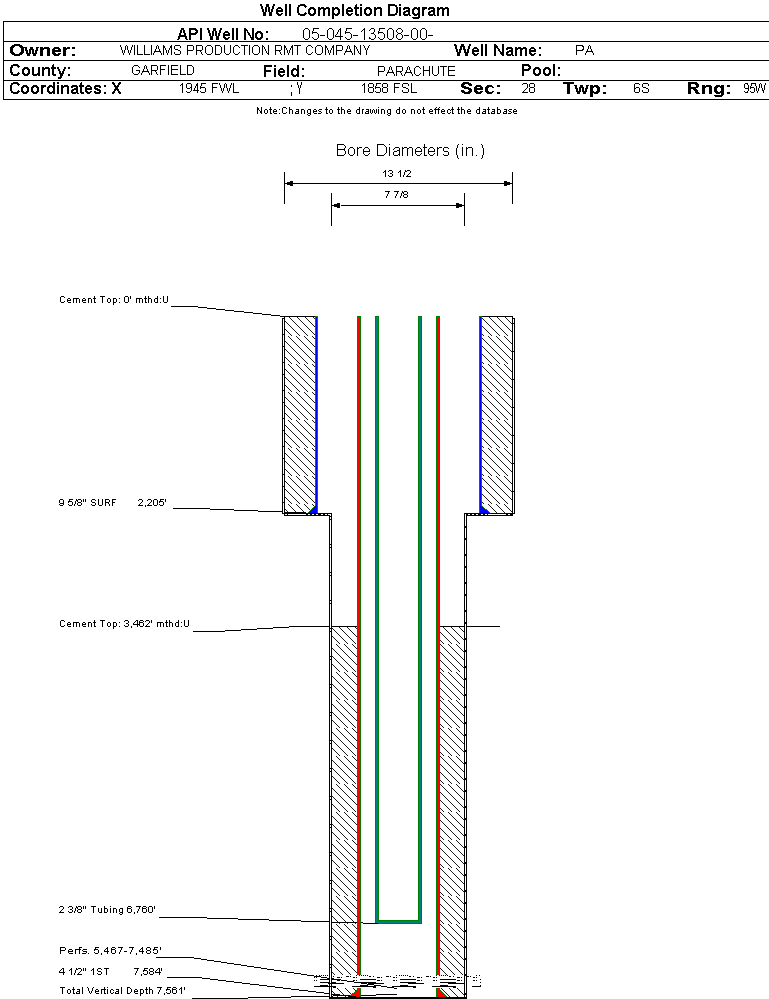

Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 2205 ft., Weight: 32.3 , Citings Type: ACTUAL
Cement:Sacks: 590, Top: 0 ft., Bottom: 2205 ft., Determination Method: CALC
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7584 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 930, Top: 3462 ft., Bottom: 7584 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
WASATCH G1976 ft.NN
FORT UNION2284 ft.NN
MESAVERDE4195 ft.NN
CAMEO6819 ft.NN
ROLLINS7533 ft.NN

Formation WFCM                     Formation Classification:  GW                     Status:  PR - 7/26/2005                 Interval Top: 5467 ft.    Interval Bottom: 7485 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:6/9/2005Choke Size:0.203 in.
Formation Name:WILLIAMS FORK - CAMEOCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:7/26/2005
Treatment Summary:5500 GALS 7 1/2% HCL, 778500# 30/50, 18383 BBLS SLICK WATER
Tubing Size:2.375 in.Tubing Setting Depth:6760 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:7/26/2005Test Method:
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
CALC_BBLS_H2O 0
CALC_BBLS_OIL 0
CALC_MCF_GAS 889
CASING_PRESS 1323
TUBING_PRESS 1155
Perforation Data:
Interval Top:5467 ft.# Of Holes:134
Interval Bottom:7485 ft.Hole Size:0.34 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
November 2024 - October 2025i
Total Oil Produced (Barrels)16
Total Gas Produced (MCF)13870
GOR866875
GOR DeterminationMCFE
Average BOE per Day6.595
Average MCFE per Day38.268

 Federal Financial Assurance  i

 Tribal Well  i No
