COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-13505		Well Classification: OW Status: PR - 7/6/2005
Well Name/No:CLOUGH #RWF 521-16
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:CR 49
Facility Status:PRStatus Date7/6/2005
FacilityID:275256LocationID:335742
County:GARFIELD #045Location:NENW 16 6S94W 6
Field:RULISON - #75400Elevation:5736 ft.
Basin:PICEANCE BASIN
Planned Location:563FNL  1782 FWLLat/Long: 39.530809 / -107.896590Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.530905 / -107.896639Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: OW             Status: PR - 7/6/2005             Measured TD: 8425 ft.    Vertical TD: 8401 ft.

 Wellbore Data for Original WellboreWellbore Classification: OW        PR - 7/6/2005
Wellbore PermitDIRECTIONAL
Permit #:20043017 Expiration Date:12/20/2005
Proposed Top PZ Location:Sec: Twp: Footage: 166 FNL  2067 FWL
Bottom Hole Location:Sec: Twp: Footage: 166 FNL  2067 FWL
Proposed Depth/Form:8531 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 139-38 , Unit Acreage: 320, Drill Unit: W2
Wellbore Completed
Completion Date:4/30/2005
Spud Date:2/21/2005Spud Date Is:ACTUAL
Measured TD:8425 ft.Measured PB depth:8381 ft.
True Vertical TD:8401 ft.True Vertical PB depth:
Top PZ Location:Sec: Twp: Footage: 166 FNL  2067 FWL
Bottom Hole Location:Sec: Twp: Footage: 166 FNL  2067 FWL
Log Types:CBL; HIGH RESOLUTION INDUCTION, SPECTRAL DENSITY, DUAL SPACED NEUTRON

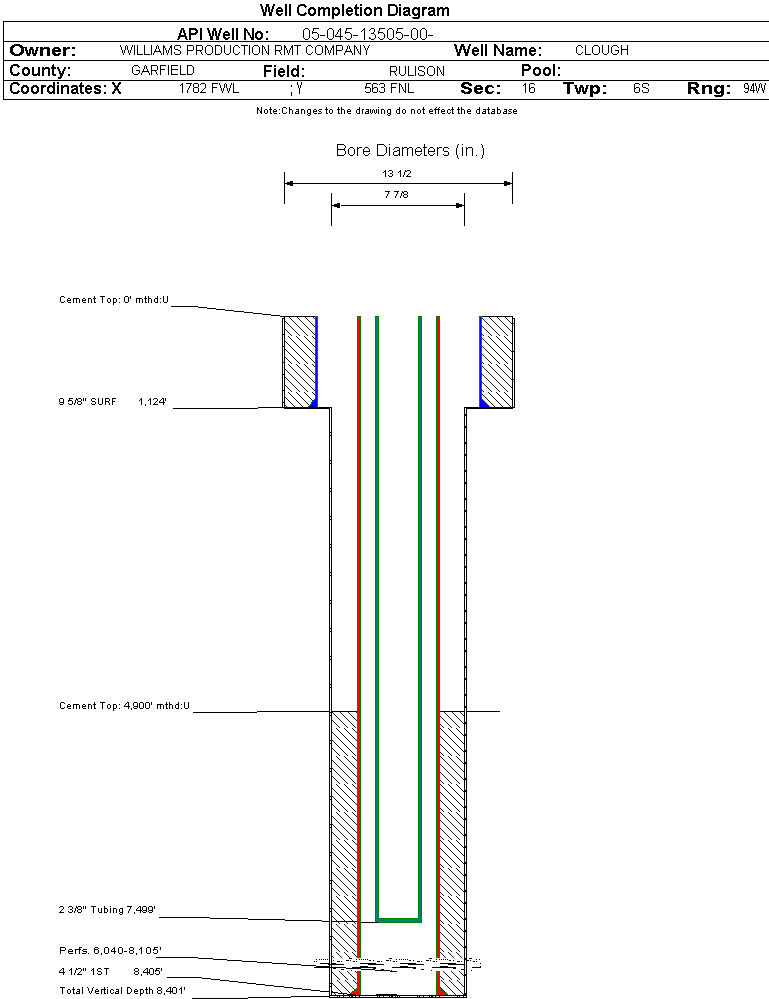

Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1124 ft., Weight: 32.3 , Citings Type: ACTUAL
Cement:Sacks: 375, Top: 0 ft., Bottom: 1124 ft., Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 8405 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 1015, Top: 4900 ft., Bottom: 8405 ft., Determination Method: CALC
FormationInterval TopLog BottomCoredDSTs
GREELEY SAND2231 ft.NN
MESAVERDE4730 ft.NN
CAMEO7579 ft.NN
ROLLINS8499 ft.NN

Formation WFCM                     Formation Classification:  OW                     Status:  PR - 7/6/2005                  Interval Top: 6040 ft.    Interval Bottom: 8105 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:N/AChoke Size:0.203 in.
Formation Name:WILLIAMS FORK - CAMEOCommingled:No
Production Method:FLOWING
Open Hole Completion:No
Formation Treatment
Treatment Date:4/30/2005
Treatment Summary:4000 GALS 7 1/2% HCL, 573100# 20/40, 13855 BBLS SLICK WATER (SUMMARY).
Tubing Size:2.375 in.Tubing Setting Depth:7499 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:6/29/2005Test Method:FLOWING
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 0
BBLS_OIL 0
CALC_BBLS_H2O 0
CALC_BBLS_OIL 0
CALC_MCF_GAS 1221
CASING_PRESS 1674
MCF_GAS 1221
TUBING_PRESS 1526
Perforation Data:
Interval Top:6040 ft.# Of Holes:94
Interval Bottom:8105 ft.Hole Size:0.34 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
November 2024 - October 2025i
Total Oil Produced (Barrels)13
Total Gas Produced (MCF)11217
GOR862846
GOR DeterminationMCFE
Average BOE per Day5.338
Average MCFE per Day30.953

 Federal Financial Assurance  i

 Tribal Well  i No
