 Surface Location
 API# 05-045-13502		Well Classification: GW Status: PR - 8/29/2005
Well Name/No:CLOUGH #RWF 311-15
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date8/29/2005
FacilityID:275253LocationID:335571
County:GARFIELD #045Location:SWNW 15 6S94W 6
Field:RULISON - #75400Elevation:5770 ft.
Basin:PICEANCE BASIN
Planned Location:1526FNL  1250 FWLLat/Long: 39.528169 / -107.879500Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.528270 / -107.879421Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 8/29/2005             Measured TD: 8700 ft.    Vertical TD: 8520 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 8/29/2005
Wellbore PermitDIRECTIONAL
Permit #:20043014 Expiration Date:12/20/2005
Proposed Top PZ Location:Sec:15 Twp: 6S 94W Footage: 144 FNL  594 FWL
Bottom Hole Location:Sec:15 Twp: 6S 94W Footage: 144 FNL  594 FWL
Proposed Depth/Form:8789 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 139-38 , Unit Acreage: 320, Drill Unit: N2
Wellbore Completed
Completion Date:6/15/2005
Spud Date:4/11/2005Spud Date Is:ACTUAL
Measured TD:8700 ft.Measured PB depth:8552 ft.
True Vertical TD:8520 ft.True Vertical PB depth:
Top PZ Location:Sec:15 Twp: 6S 94WFootage: 144 FNL  594 FWL
Bottom Hole Location:Sec:15 Twp: 6S 94WFootage: 144 FNL  594 FWL
Log Types:RESERVOIR MONITOR TOOL ELITE, CBL

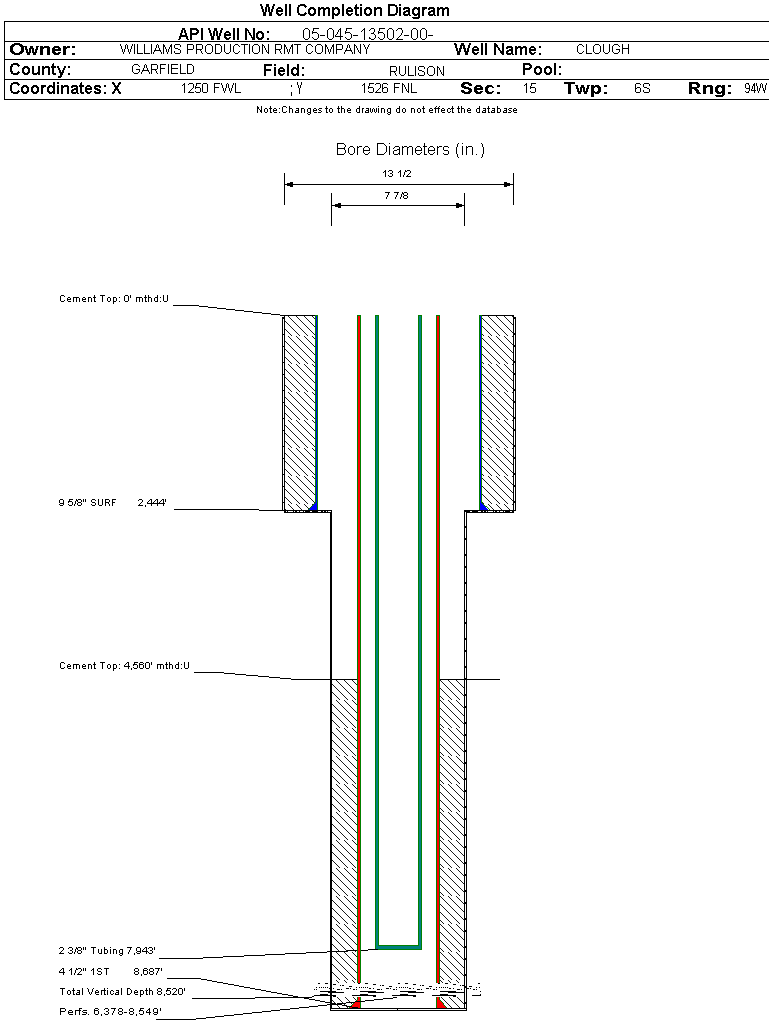

Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 2444 ft., Weight: 32.3 , Citings Type: ACTUAL
Cement:Sacks: 665, Top: 0 ft., Bottom: 2444 ft., Determination Method: CALC
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 8687 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 1030, Top: 4560 ft., Bottom: 8687 ft., Determination Method: CALC
FormationInterval TopLog BottomCoredDSTs
WASATCH G2205 ft.NN
MESAVERDE4994 ft.NN
CAMEO7763 ft.NN
ROLLINS8790 ft.NN

Formation WFCM                     Formation Classification:  GW                     Status:  PR - 8/29/2005                 Interval Top: 6378 ft.    Interval Bottom: 8549 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:N/AChoke Size:0.188 in.
Formation Name:WILLIAMS FORK - CAMEOCommingled:No
Production Method:FLOWING
Open Hole Completion:No
Formation Treatment
Treatment Date:6/15/2005
Treatment Summary:5000 GALS 7 1/2% HCL, 736300# 20/40, 17428 BBLS SLICK WATER (SUMMARY)
Tubing Size:2.375 in.Tubing Setting Depth:7943 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:8/17/2005Test Method:FLOWING
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 0
BBLS_OIL 0
CALC_BBLS_H2O 0
CALC_BBLS_OIL 0
CALC_MCF_GAS 1717
CASING_PRESS 2412
MCF_GAS 1717
TUBING_PRESS 2301
Perforation Data:
Interval Top:6378 ft.# Of Holes:124
Interval Bottom:8549 ft.Hole Size:
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
February 2025 - January 2026i
Total Oil Produced (Barrels)33
Total Gas Produced (MCF)14899
GOR451484
GOR DeterminationMCFE
Average BOE per Day7.132
Average MCFE per Day41.357

 Federal Financial Assurance  i

 Tribal Well  i No
