Wellbore #00 Wellbore Classification: GW Status: PR - 10/5/2005 Measured TD: 8035 ft. Vertical TD: 8033 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 10/5/2005 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 20042927 | Expiration Date: | 12/16/2005 | | Proposed Top PZ Location: | Sec:32 Twp: 6S 91W | Footage: 825 FNL 665 FWL | | Bottom Hole Location: | Sec:32 Twp: 6S 91W | Footage: 825 FNL 665 FWL | | Proposed Depth/Form: | 7994 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | GIBSON GULCH UN | Unit Number: | COC052447X | | Formation And Spacing: | Code: ILES , Formation: ILES , Order: , Unit Acreage: , Drill Unit: | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: , Unit Acreage: , Drill Unit: |
| | |

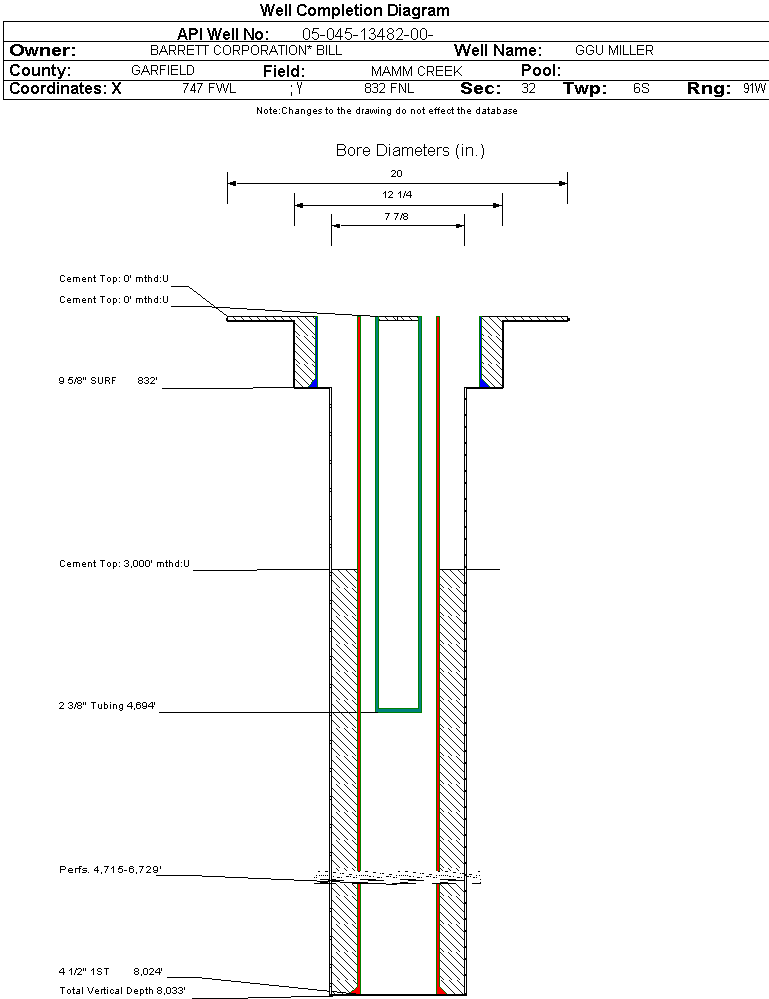

| Wellbore Completed | | Completion Date: | 6/7/2005 | | Spud Date: | 4/20/2005 | Spud Date Is: | ACTUAL | | Measured TD: | 8035 ft. | Measured PB depth: | 7047 ft. | | True Vertical TD: | 8033 ft. | True Vertical PB depth: | 7045 ft. | | Top PZ Location: | Sec:32 Twp: 6S 91W | Footage: 825 FNL 665 FWL | | Bottom Hole Location: | Sec:32 Twp: 6S 91W | Footage: 825 FNL 665 FWL | | Log Types: | PLATFORM EXPRESS ARRAY INDUCTION/GR/CBL | | Casing: | String Type: CONDUCTOR, Hole Size: 20 in., Size: 16 in., Top: 0 ft., Depth: 40 ft., Weight: 1.4' , Citings Type: ACTUAL | | Cement: | Sacks: , Top: 0 ft., Bottom: 40 ft., Determination Method: | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 832 ft., Weight: 36 , Citings Type: ACTUAL | | Cement: | Sacks: 240, Top: 0 ft., Bottom: 832 ft., Determination Method: | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 8024 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 1640, Top: 3000 ft., Bottom: 8024 ft., Determination Method: | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WILLIAMS FORK | 3275 ft. | | N | N | | ROLLINS | 6909 ft. | | N | N |
Formation WMFK Formation Classification: GW Status: PR - 10/5/2005 Interval Top: 4715 ft. Interval Bottom: 6729 ft.| Completed Information for Formation WILLIAMS FORK | | 1st Production Date: | N/A | Choke Size: | | | Formation Name: | WILLIAMS FORK | Commingled: | No | | Production Method: | FLOWING | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 6/7/2005 | | Treatment Summary: | 13,127 BBLS OF SLICK WATER, 335,223 LBS OF 20/40 SAND; 2,156 BBL 2% KCL WATER, 89,300 LBS 20/40 SAND; 3,075 BBLS OF 2% CLAYFIX, 131,800 LBS OF 20/40 SAND. |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 4694 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 8/7/2005 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 0 | | BBLS_OIL | 0 | | CALC_BBLS_H2O | 0 | | CALC_GOR | 502 | | CALC_MCF_GAS | 502 | | CASING_PRESS | 245 | | MCF_GAS | 502 | | TUBING_PRESS | 0 |
| | Perforation Data: | | Interval Top: | 4715 ft. | # Of Holes: | 174 | | Interval Bottom: | 6729 ft. | Hole Size: | 0.36 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 11 |
| Total Gas Produced (MCF) | 6130 |
| GOR | 557272 |
| GOR Determination | MCFE |
| Average BOE per Day | 2.927 |
| Average MCFE per Day | 16.981 |
| Federal Financial Assurance | i | |
|
|
