COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITGIS Map GISOld GIS Map Old GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-13452		Well Classification: GW Status: PR - 7/6/2005
Well Name/No:PA #541-34
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date7/6/2005
FacilityID:275025LocationID:335378
County:GARFIELD #045Location:NENE 34 6S95W 6
Field:PARACHUTE - #67350Elevation:5422 ft.
Basin:PICEANCE BASIN
Planned Location:609FNL  3 FELLat/Long: 39.486759 / -107.975362Lat/Long Source: Calculated From Footages
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 7/6/2005             Measured TD: 7775 ft.    Vertical TD: 7709 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 7/6/2005
Wellbore PermitDIRECTIONAL
Permit #:20042825 Expiration Date:12/5/2005
Proposed Top PZ Location:Sec: Twp: Footage: 133 FNL  609 FEL
Bottom Hole Location:Sec: Twp: Footage: 133 FNL  608 FEL
Proposed Depth/Form:7852 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 139-38 , Unit Acreage: 320, Drill Unit: N2
Wellbore Completed
Completion Date:5/24/2005
Spud Date:2/24/2005Spud Date Is:ACTUAL
Measured TD:7775 ft.Measured PB depth:7709 ft.
True Vertical TD:7709 ft.True Vertical PB depth:
Top PZ Location:Sec: Twp: Footage: 133 FNL  609 FEL
Bottom Hole Location:Sec: Twp: Footage: 133 FNL  608 FEL
Log Types:RESERVOIR MONITOR TOOL ELITE, CBL

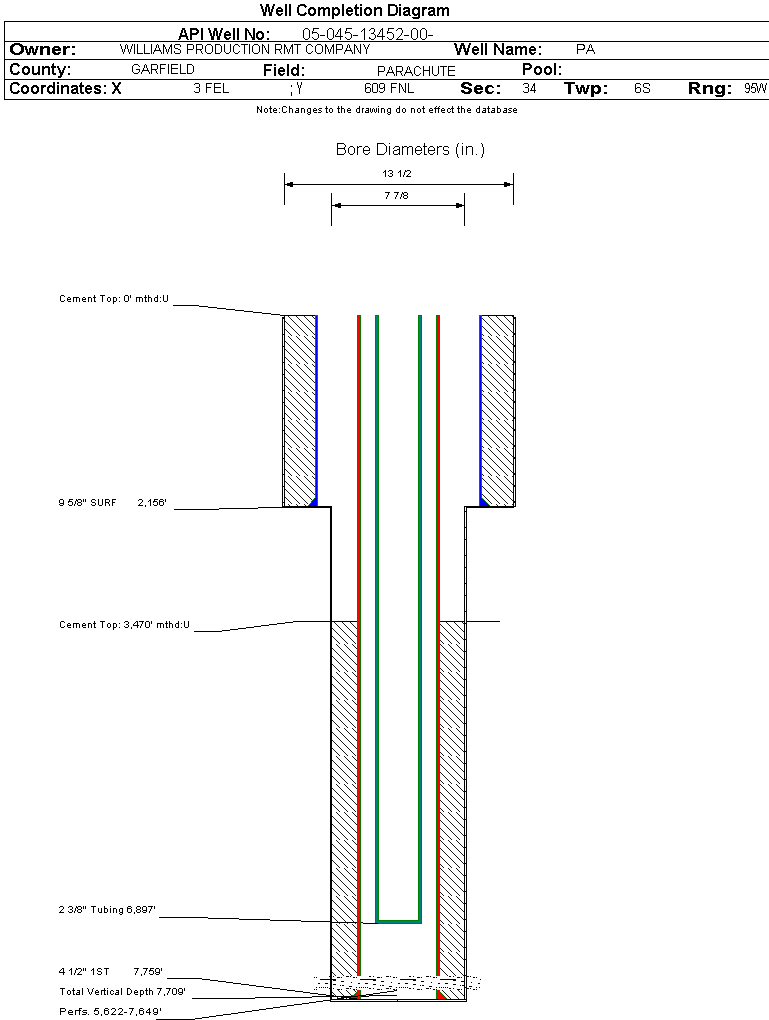

Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 2156 ft., Weight: 32.3 , Citings Type: ACTUAL
Cement:Sacks: 570, Top: 0 ft., Bottom: 2155 ft., Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7759 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 1205, Top: 3470 ft., Bottom: 7759 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
WASATCH G1960 ft.NN
FORT UNION2270 ft.NN
MESAVERDE4248 ft.NN
CAMEO6958 ft.NN
ROLLINS7722 ft.NN

Formation WFCM                     Formation Classification:  GW                     Status:  PR - 7/6/2005                  Interval Top: 5622 ft.    Interval Bottom: 7649 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:N/AChoke Size:0.203 in.
Formation Name:WILLIAMS FORK - CAMEOCommingled:No
Production Method:FLOWING
Open Hole Completion:No
Formation Treatment
Treatment Date:5/24/2005
Treatment Summary:4750 GALS 7 1/2% HCL 732400# 30/50, 17600 BBLS SLICK WATER (SUMMARY)
Tubing Size:2.375 in.Tubing Setting Depth:6897 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:7/3/2005Test Method:
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 0
BBLS_OIL 0
CALC_MCF_GAS 1294
CASING_PRESS 1667
MCF_GAS 1294
TUBING_PRESS 1554
Perforation Data:
Interval Top:5622 ft.# Of Holes:114
Interval Bottom:7649 ft.Hole Size:0.34 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
February 2025 - January 2026i
Total Oil Produced (Barrels)16
Total Gas Produced (MCF)12401
GOR775062
GOR DeterminationMCFE
Average BOE per Day5.901
Average MCFE per Day34.253

 Federal Financial Assurance  i

 Tribal Well  i No
