Wellbore #00 Wellbore Classification: GW Status: PR - 6/3/2005 Measured TD: 7230 ft. Vertical TD: 7161 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 6/3/2005 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 20042814 | Expiration Date: | 12/5/2005 | | Proposed Top PZ Location: | Sec: Twp: | Footage: 100 FNL 2010 FEL | | Bottom Hole Location: | Sec:18 Twp: | Footage: 100 FNL 2010 FEL | | Proposed Depth/Form: | 7190 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | HUNTER MESA | Unit Number: | COC55972X | | Formation And Spacing: | Code: ILES , Formation: ILES , Order: , Unit Acreage: , Drill Unit: | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: , Unit Acreage: , Drill Unit: |
| | |

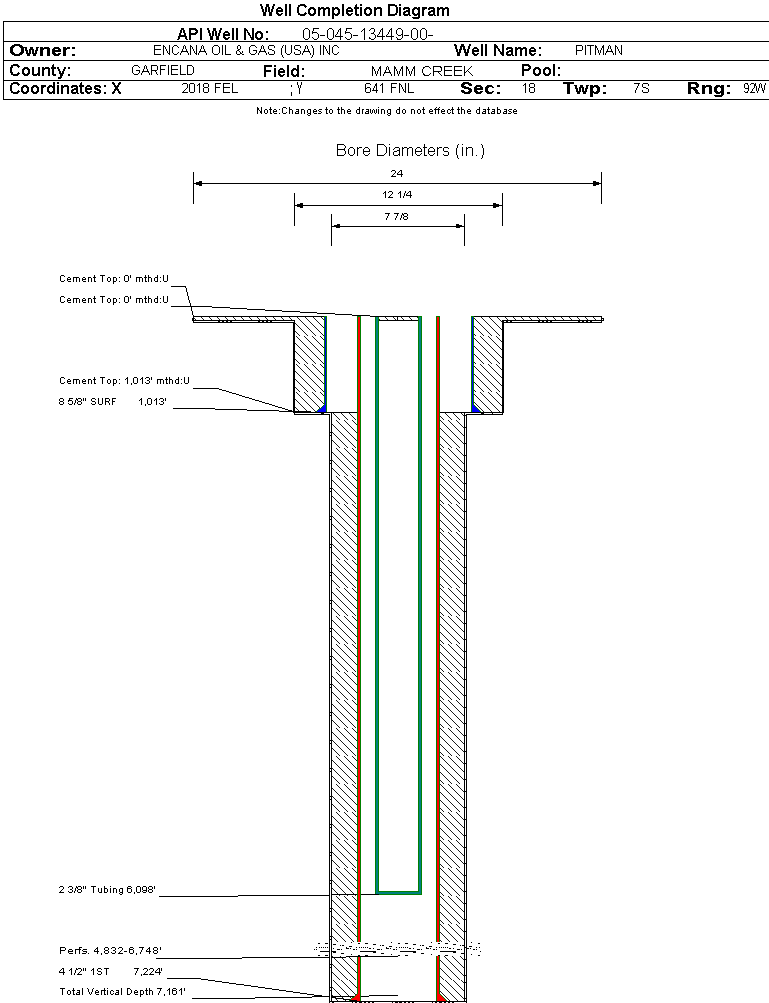

| Wellbore Completed | | Completion Date: | 6/3/2005 | | Spud Date: | 3/18/2005 | Spud Date Is: | ACTUAL | | Measured TD: | 7230 ft. | Measured PB depth: | 7000 ft. | | True Vertical TD: | 7161 ft. | True Vertical PB depth: | | | Top PZ Location: | Sec: Twp: | Footage: 100 FNL 2010 FEL | | Bottom Hole Location: | Sec:18 Twp: | Footage: 100 FNL 2010 FEL | | Log Types: | RST / GR / TEMP, C B L | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 16 in., Top: 0 ft., Depth: 42 ft., Weight: 42 , Citings Type: ACTUAL | | Cement: | Sacks: 5, Top: 0 ft., Bottom: 42 ft., Determination Method: CALC | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 1013 ft., Weight: 24 , Citings Type: ACTUAL | | Cement: | Sacks: 715, Top: 0 ft., Bottom: 1013 ft., Determination Method: CALC | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7224 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 1650, Top: 1013 ft., Bottom: 7224 ft., Determination Method: CALC | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH | 0 ft. | 3727 ft. | N | N | | WILLIAMS FORK | 3728 ft. | 6941 ft. | N | N | | ROLLINS | 6942 ft. | 7230 ft. | N | N |
Formation WMFK Formation Classification: GW Status: PR - 6/3/2005 Interval Top: 4832 ft. Interval Bottom: 6748 ft.| Completed Information for Formation WILLIAMS FORK | | 1st Production Date: | N/A | Choke Size: | 0.250 in. | | Formation Name: | WILLIAMS FORK | Commingled: | No | | Production Method: | FLOWING | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 6/3/2005 | | Treatment Summary: | STAGES 1 THROUGH 5 WERE TREATED WITH A TOTAL OF 25,760 BBLS SLICK WATER AND 842,535# OF 20-40 SAND. |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 6098 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 6/3/2005 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 1 | | BBLS_OIL | 0 | | BTU_GAS | 1170 | | CALC_BBLS_H2O | 1 | | CALC_BBLS_OIL | 0 | | CALC_MCF_GAS | 1100 | | CASING_PRESS | 1400 | | MCF_GAS | 1100 | | TUBING_PRESS | 1200 |
| | Perforation Data: | | Interval Top: | 4832 ft. | # Of Holes: | 102 | | Interval Bottom: | 6748 ft. | Hole Size: | 0.34 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 35 |
| Total Gas Produced (MCF) | 36292 |
| GOR | 1036914 |
| GOR Determination | MCFE |
| Average BOE per Day | 17.243 |
| Average MCFE per Day | 100.015 |
| Federal Financial Assurance | i | Y |
|
|
