Wellbore #00 Wellbore Classification: GW Status: PR - 11/4/2004 Measured TD: 6560 ft. Vertical TD: 6548 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 11/4/2004 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 20042769 | Expiration Date: | 12/1/2005 | | Proposed Top PZ Location: | Sec: Twp: | Footage: 1825 FSL 545 FEL | | Bottom Hole Location: | Sec: Twp: | Footage: 1825 FSL 545 FEL | | Proposed Depth/Form: | 6675 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 138-38 , Unit Acreage: 320, Drill Unit: S2 |
| | |

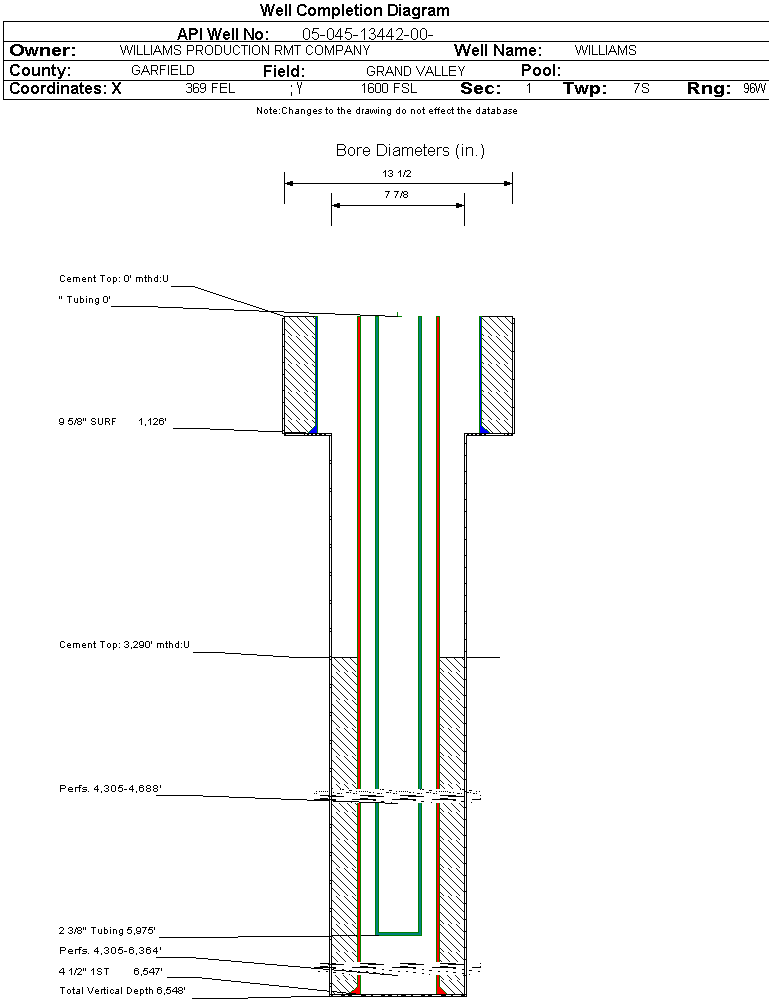

| Wellbore Completed | | Completion Date: | 4/12/2005 | | Spud Date: | 3/11/2005 | Spud Date Is: | ACTUAL | | Measured TD: | 6560 ft. | Measured PB depth: | 6509 ft. | | True Vertical TD: | 6548 ft. | True Vertical PB depth: | | | Top PZ Location: | Sec: Twp: | Footage: 1825 FSL 545 FEL | | Bottom Hole Location: | Sec: Twp: | Footage: 1825 FSL 545 FEL | | Log Types: | RESERVOIR MONITOR TOOL ELITE, CBL | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1126 ft., Weight: 32.3 , Citings Type: ACTUAL | | Cement: | Sacks: 375, Top: 0 ft., Bottom: 1126 ft., Determination Method: | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 6547 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 650, Top: 3290 ft., Bottom: 6547 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH G | 1534 ft. | | N | N | | FORT UNION | 1815 ft. | | N | N | | MESAVERDE | 3431 ft. | | N | N | | CAMEO | 5920 ft. | | N | N | | ROLLINS | 6424 ft. | | N | N |
Formation WFCM Formation Classification: GW Status: PR - 11/4/2004 Interval Top: 4305 ft. Interval Bottom: 4688 ft.| Completed Information for Formation WILLIAMS FORK - CAMEO | | 1st Production Date: | N/A | Choke Size: | 0.219 in. | | Formation Name: | WILLIAMS FORK - CAMEO | Commingled: | Yes | | Production Method: | FLOWING | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 4/12/2005 | | Treatment Summary: | 4250 GAL 7 1/2% HCL, 538400# 30/50, 11709 BBLS SLICK WATER(SUMMARY) |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 5975 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 5/13/2005 | Test Method: | | | Hours Tested: | 24 | Gas Type: | | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| CALC_MCF_GAS | 1336 | | CASING_PRESS | 1456 | | TUBING_PRESS | 1284 |
| | Perforation Data: | | Interval Top: | 4305 ft. | # Of Holes: | 90 | | Interval Bottom: | 4688 ft. | Hole Size: | 0.34 in. |
|
Formation WMFK Formation Classification: GW Status: CM - 11/4/2004 Interval Top: 4305 ft. Interval Bottom: 6364 ft.| Completed Information for Formation WILLIAMS FORK | | 1st Production Date: | N/A | Choke Size: | | | Formation Name: | WILLIAMS FORK | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 4/12/2005 | | Treatment Summary: | SEE SCANNED DOC #01259976 |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation WMFK. |
| | Perforation Data: | | Interval Top: | 4305 ft. | # Of Holes: | 90 | | Interval Bottom: | 6364 ft. | Hole Size: | 0.34 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 16 |
| Total Gas Produced (MCF) | 12760 |
| GOR | 797500 |
| GOR Determination | MCFE |
| Average BOE per Day | 6.075 |
| Average MCFE per Day | 35.231 |
| Federal Financial Assurance | i | |
|
|
