Wellbore #00 Wellbore Classification: GW Status: PR - 4/25/2005 Measured TD: 5615 ft. Vertical TD: 5580 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 4/25/2005 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 20042733 | Expiration Date: | 11/30/2005 | | Proposed Top PZ Location: | Sec: Twp: | Footage: 1310 FNL 1970 FEL | | Bottom Hole Location: | Sec: Twp: | Footage: 1310 FNL 1970 FEL | | Proposed Depth/Form: | 6500 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | HUNTER MESA | Unit Number: | COC 55972X | | Formation And Spacing: | Code: ILES , Formation: ILES , Order: , Unit Acreage: , Drill Unit: | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: , Unit Acreage: , Drill Unit: |
| | |

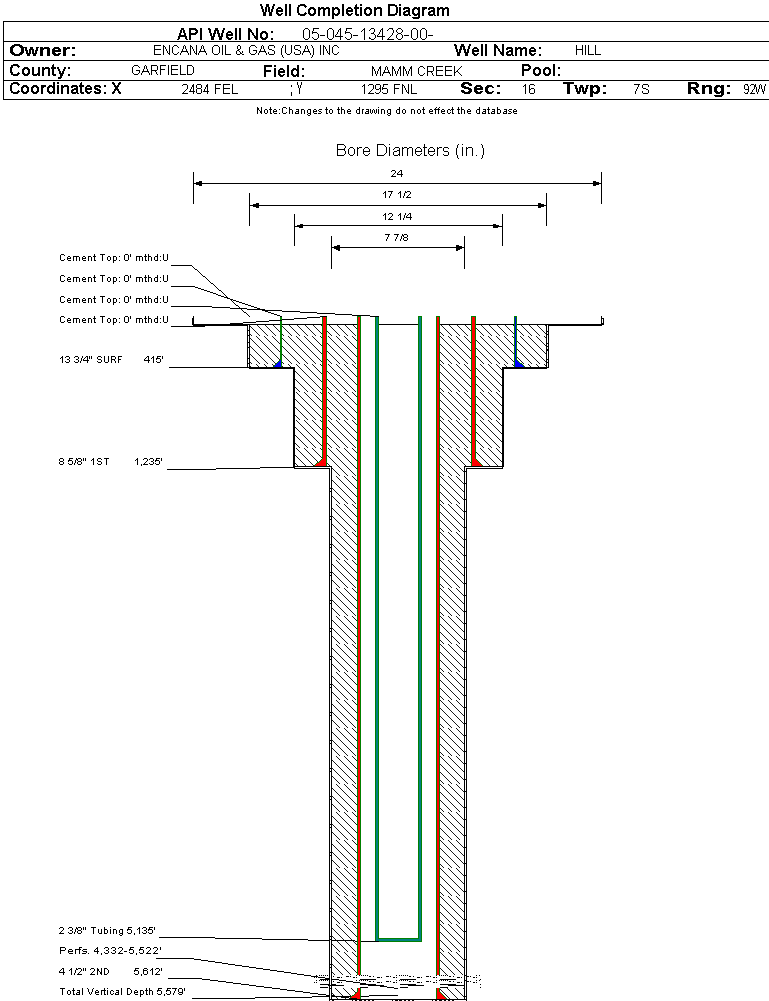

| Wellbore Completed | | Completion Date: | 4/24/2005 | | Spud Date: | 2/22/2005 | Spud Date Is: | ACTUAL | | Measured TD: | 5615 ft. | Measured PB depth: | 5569 ft. | | True Vertical TD: | 5580 ft. | True Vertical PB depth: | 5579 ft. | | Top PZ Location: | Sec:16 Twp: 7S 92W | Footage: 1278 FNL 2029 FEL | | Bottom Hole Location: | Sec:16 Twp: 7S 92W | Footage: 1339 FNL 1982 FEL | | Log Types: | GR-CBL/ TEMP, PEX | | Log Types: | | | Casing: | String Type: CONDUCTOR, Hole Size: 17.5 in., Size: 13.375 in., Top: 0 ft., Depth: 402 ft., Weight: 48 , Citings Type: ACTUAL | | Cement: | Sacks: 500, Top: 0 ft., Bottom: 405 ft., Determination Method: VISU | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 1222 ft., Weight: 32 , Citings Type: ACTUAL | | Cement: | Sacks: 780, Top: 0 ft., Bottom: 1227 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 5599 ft., Weight: 11.60 , Citings Type: ACTUAL | | Cement: | Sacks: 1415, Top: 0 ft., Bottom: 5599 ft., Determination Method: CBL | | Additional Cement: | String Type: CONDUCTOR , Top: 0 ft., Depth: 60 ft., Bottom: 60 ft., Sacks: 250, Method: SQUEEZE | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH | 0 ft. | 2950 ft. | N | N | | WILLIAMS FORK | 2951 ft. | 5615 ft. | N | N |
Formation WMFK Formation Classification: GW Status: PR - 4/25/2005 Interval Top: 4332 ft. Interval Bottom: 5522 ft.| Completed Information for Formation WILLIAMS FORK | | 1st Production Date: | N/A | Choke Size: | 0.188 in. | | Formation Name: | WILLIAMS FORK | Commingled: | No | | Production Method: | FLOWING | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 4/24/2005 | | Treatment Summary: | STAGES 1-4 TREATED WITH A TOTAL OF: 17,682 BBLS OF SLICKWATER, 617,608 LBS 20/40 SAND. |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 5135 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 4/25/2005 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 70 | | BBLS_OIL | 1 | | BTU_GAS | 1170 | | CALC_BBLS_H2O | 70 | | CALC_BBLS_OIL | 1 | | CALC_GOR | 650000 | | CALC_MCF_GAS | 650 | | CASING_PRESS | 1500 | | MCF_GAS | 650 | | TUBING_PRESS | 1000 |
| | Perforation Data: | | Interval Top: | 4332 ft. | # Of Holes: | 90 | | Interval Bottom: | 5522 ft. | Hole Size: | 0.34 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 37 |
| Total Gas Produced (MCF) | 24758 |
| GOR | 669135 |
| GOR Determination | MCFE |
| Average BOE per Day | 11.798 |
| Average MCFE per Day | 68.421 |
| Federal Financial Assurance | i | Y |
|
|
