Wellbore #00 Wellbore Classification: GW Status: PR - 7/1/2019 Measured TD: 6555 ft. Vertical TD: 6431 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 7/1/2019 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 20042709 | Expiration Date: | 11/29/2005 | | Proposed Top PZ Location: | Sec: Twp: | Footage: 10 FSL 600 FEL | | Bottom Hole Location: | Sec:32 Twp: | Footage: 10 FSL 600 FEL | | Proposed Depth/Form: | 6898 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | GRASS MESA UNIT | Unit Number: | COC 56608X | | Formation And Spacing: | Code: ILES , Formation: ILES , Order: 139-42 , Unit Acreage: , Drill Unit: | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 139-42 , Unit Acreage: , Drill Unit: |
| | |

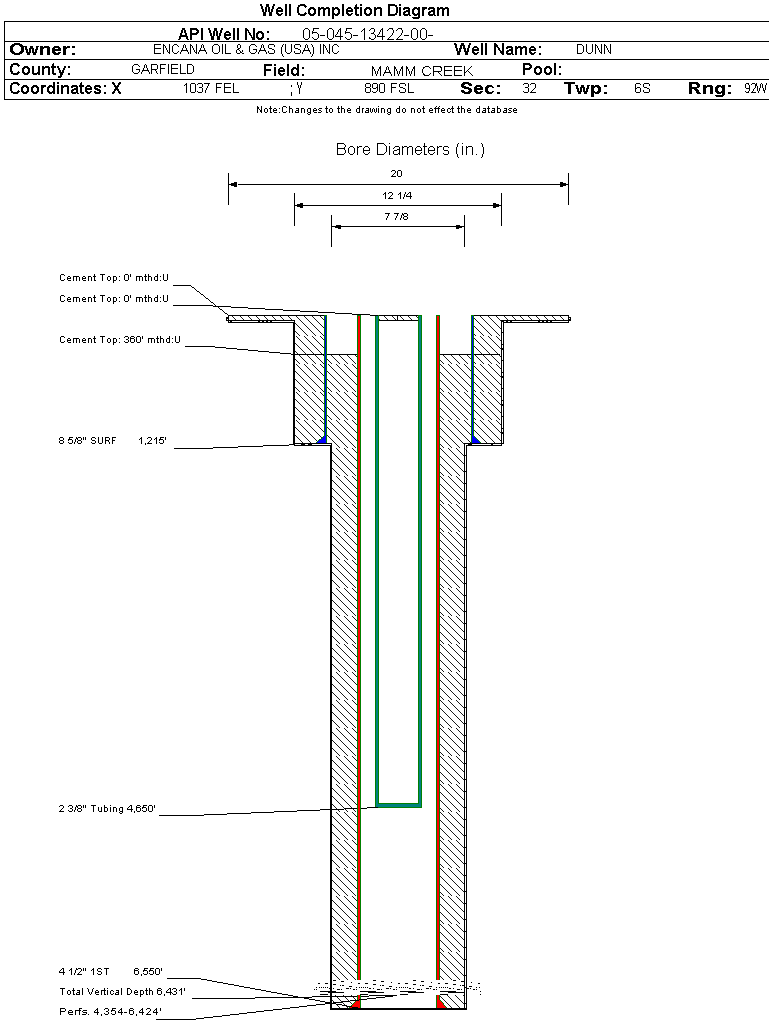

| Wellbore Completed | | Completion Date: | 2/14/2005 | | Spud Date: | 12/9/2004 | Spud Date Is: | ACTUAL | | Measured TD: | 6555 ft. | Measured PB depth: | 5130 ft. | | True Vertical TD: | 6431 ft. | True Vertical PB depth: | 0 ft. | | Top PZ Location: | Sec: Twp: | Footage: 10 FSL 600 FEL | | Bottom Hole Location: | Sec:32 Twp: | Footage: 10 FSL 600 FEL | | Log Types: | CBL, RST | | Casing: | String Type: CONDUCTOR, Hole Size: 20 in., Size: 16 in., Top: 0 ft., Depth: 40 ft., Weight: 42 , Citings Type: ACTUAL | | Cement: | Sacks: 170, Top: 0 ft., Bottom: 40 ft., Determination Method: CALC | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 1215 ft., Weight: 24 , Citings Type: ACTUAL | | Cement: | Sacks: 850, Top: 0 ft., Bottom: 1215 ft., Determination Method: CALC | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 6550 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 1640, Top: 360 ft., Bottom: 6550 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH | 0 ft. | 3289 ft. | N | N | | WILLIAMS FORK | 3290 ft. | 6442 ft. | N | N | | ROLLINS | 6443 ft. | 6555 ft. | N | N |
Formation WMFK Formation Classification: GW Status: PR - 7/1/2019 Interval Top: 4354 ft. Interval Bottom: 6424 ft.| Completed Information for Formation WILLIAMS FORK | | 1st Production Date: | 1/22/2005 | Choke Size: | | | Formation Name: | WILLIAMS FORK | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 1/17/2005 | | Treatment Summary: | |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 4650 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | N/A | Test Method: | | | Hours Tested: | | Gas Type: | | | Gas Disposal: | | |
| Test Type | Measure |
|---|
| BBLS_H2O | 127 | | BBLS_OIL | 11 | | BTU_GAS | 1170 | | CALC_BBLS_H2O | 127 | | CALC_BBLS_OIL | 11 | | CALC_GOR | 80636 | | CALC_MCF_GAS | 887 | | CASING_PRESS | 1094 | | MCF_GAS | 887 | | TUBING_PRESS | 678 |
| | Perforation Data: | | Interval Top: | 4354 ft. | # Of Holes: | 112 | | Interval Bottom: | 6424 ft. | Hole Size: | 0.34 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 15 |
| Total Gas Produced (MCF) | 14754 |
| GOR | 983600 |
| GOR Determination | MCFE |
| Average BOE per Day | 7.003 |
| Average MCFE per Day | 40.644 |
| Federal Financial Assurance | i | Y |
|
|
